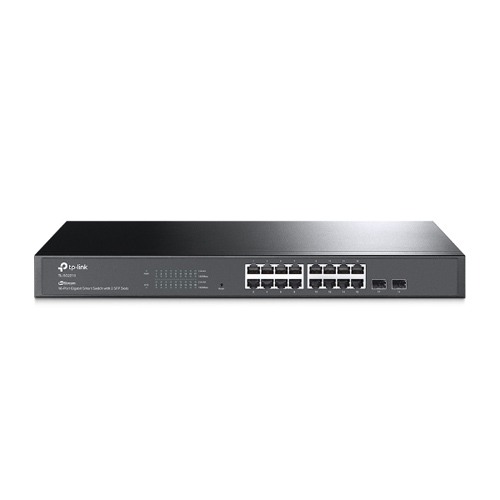

TP-LINK T1600G-18TS (TL-SG2216) 16-Port Gigabit Smart Switch with 2 SFP Slot

TP-LINK T1600G-18TS (TL-SG2216) 16-Port Gigabit Smart Switch with 2 SFP Slot

TP-LINK T1600G-18TS (TL-SG2216) 16-Port Gigabit Smart Switch with 2 SFP Slots is a robust networking solution designed to meet the demands of small to medium-sized businesses seeking reliable and high-performance connectivity. With its comprehensive hardware and software features, this smart switch offers versatile functionality and ease of management. At its core, the T1600G-18TS adheres to various industry standards and protocols, ensuring compatibility and interoperability with a wide range of networking devices. It supports IEEE standards such as 802.3i, 802.3u, 802.3ab, and many others, enabling seamless integration into existing network infrastructures. Physically, the switch boasts 16 Gigabit Ethernet ports with auto-negotiation and auto MDI/MDIX capabilities, providing flexible connectivity options for both traditional copper-based Ethernet and fiber optic networking via the two Gigabit SFP slots. The fanless design ensures silent operation, making it suitable for office environments where noise reduction is essential. In terms of performance, the T1600G-18TS delivers impressive bandwidth and packet forwarding rates, with a backplane bandwidth of 36Gbps and a packet forwarding rate of 26.8Mpps, ensuring smooth and efficient data transmission across the network. It also features a robust MAC address table supporting up to 8K entries and jumbo frame support for optimized data transfer of large packets. The switch offers a comprehensive set of software features for enhanced network management and security. Quality of Service (QoS) capabilities prioritize traffic based on 802.1p CoS/DSCP priority, while VLAN support allows for segmentation and isolation of network traffic. Advanced security features such as Port Security, DHCP Snooping, and IP-MAC-Port Binding safeguard against unauthorized access and mitigate potential security threats. Management of the T1600G-18TS is user-friendly and flexible, with options for web-based GUI and CLI management, as well as support for SNMP and RMON for remote monitoring and diagnostics. Firmware upgrades can be easily performed via TFTP or web interface, ensuring the switch remains up-to-date with the latest features and security patches. Overall, the TP-LINK T1600G-18TS (TL-SG2216) smart switch combines robust hardware, comprehensive software features, and ease of management, making it an ideal networking solution for businesses seeking reliable performance, scalability, and security in their network infrastructure.

TP-LINK T1600G-18TS (TL-SG2216) 16-Port Gigabit Smart Switch with 2 SFP Slot Features

• Standards and Protocols: Supports various IEEE standards including IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, and IEEE 802.1x.
• Interface: Equipped with 16 10/100/1000Mbps RJ45 Ports with Auto Negotiation/Auto MDI/MDIX support and 2 Gigabit SFP Slots for flexible network connectivity.
• Network Media: Supports various network media including UTP category 3, 4, 5 cables for 10BASE-T, UTP category 5, 5e, or above cables for 100BASE-TX/1000Base-T, and MMF/SMF for 1000BASE-X.
• Fanless Design: Operates silently without any fans, ensuring quiet operation and reliability.
• Power Supply: Supports a wide range of power input from 100~240VAC, 50/60Hz, ensuring compatibility with different power systems.
• Dimensions: Compact size with dimensions of 17.3 x 7.1 x 1.7 inches (440 x 180 x 44 mm), suitable for rack-mounted installations.
• Mounting: Designed for 19" 1U rack-mountable installations for easy integration into network setups.
• Max Power Consumption: Consumes up to 12.3W of power, ensuring energy efficiency.
• Max Heat Dissipation: Dissipates heat at a rate of up to 41.9 BTU/h for optimal thermal management.
• Performance:
• Bandwidth/Backplane: Offers a total bandwidth of 36Gbps, ensuring high-speed data transmission within the network.
• Packet Forwarding Rate: Capable of forwarding packets at a rate of 26.8Mpps, ensuring efficient data transfer.
• MAC Address Table: Supports up to 8K MAC addresses for efficient address management.
• Jumbo Frame: Supports jumbo frames with a maximum size of 9KB for optimized data transmission.
• Software Features:
• Quality of Service (QoS): Supports 802.1p CoS/DSCP priority and 8 priority queues for efficient traffic management.
• L2 and L2+ Features: Includes features such as static routing, DHCP relay, IGMP snooping, LACP, Spanning Tree Protocol (STP/RSTP/MSTP), loopback detection, and more for enhanced network functionality and stability.
• VLAN Support: Supports up to 4K VLANs simultaneously with MAC/Protocol-based VLAN for flexible network segmentation.
• Access Control List (ACL): Offers L2-L4 packet filtering based on source and destination MAC address, IP address, TCP/UDP ports, and IPv6 ACL for enhanced security.
• Security Features: Includes AAA, port security, DHCP snooping, IP-MAC-port binding, ARP inspection, 802.1x and Radius authentication, SSH, SSL, broadcast/multicast/unknown-unicast storm control, DOS defense, and more for robust network security.
• IPv6 Support: Offers dual IPv4/IPv6 stack, multicast listener discovery (MLD) snooping, IPv6 neighbor discovery (ND), IPv6 applications, and more for seamless transition to IPv6 networks.
• Management: Supports web-based GUI and CLI management, SNMP v1/v2c/v3, RMON, CPU monitoring, port mirroring, firmware upgrade via TFTP & web, system diagnose, SYSLOG, and public MIBS for easy network administration and monitoring.
• Others:
• Certification: CE, FCC, RoHS certified for compliance with regulatory standards.
• Package Contents: Includes T1600G-18TS switch, power cord, installation guide, resource CD, rack-mount kit, and rubber feet for convenient installation.
• Environmental Conditions: Operates within a temperature range of 0℃40℃ (32℉104℉) and humidity range of 10%~90% non-condensing, ensuring reliability in various environmental conditions.
