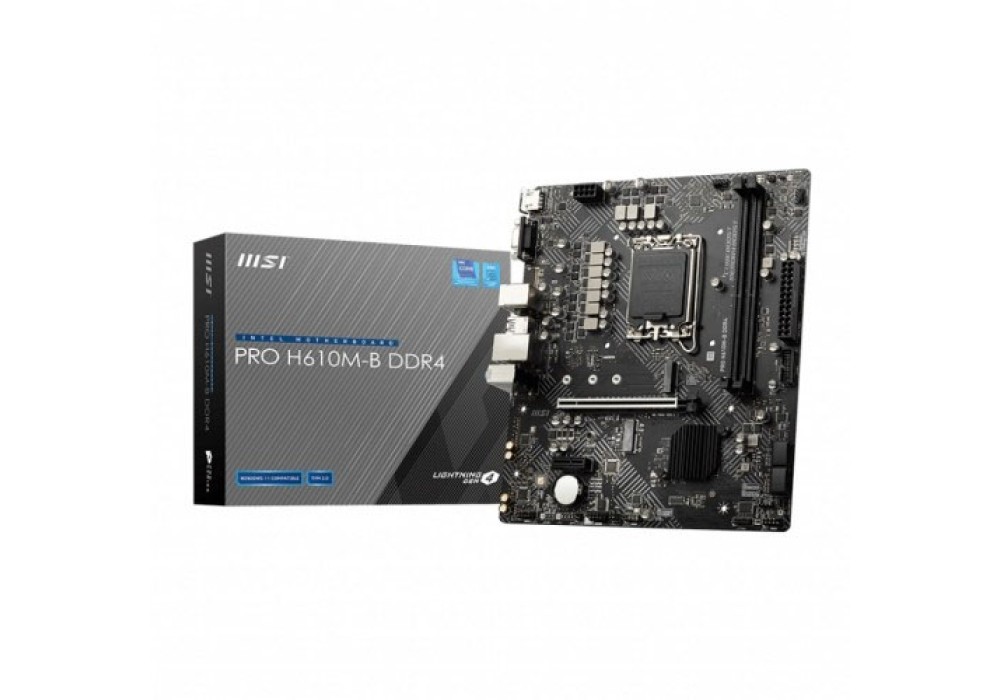

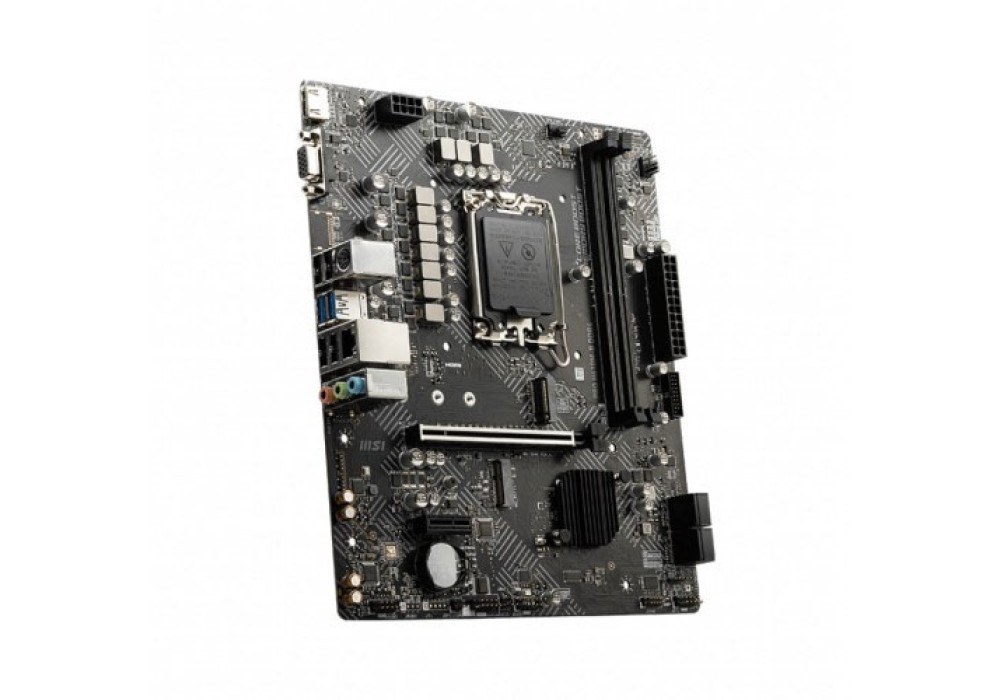

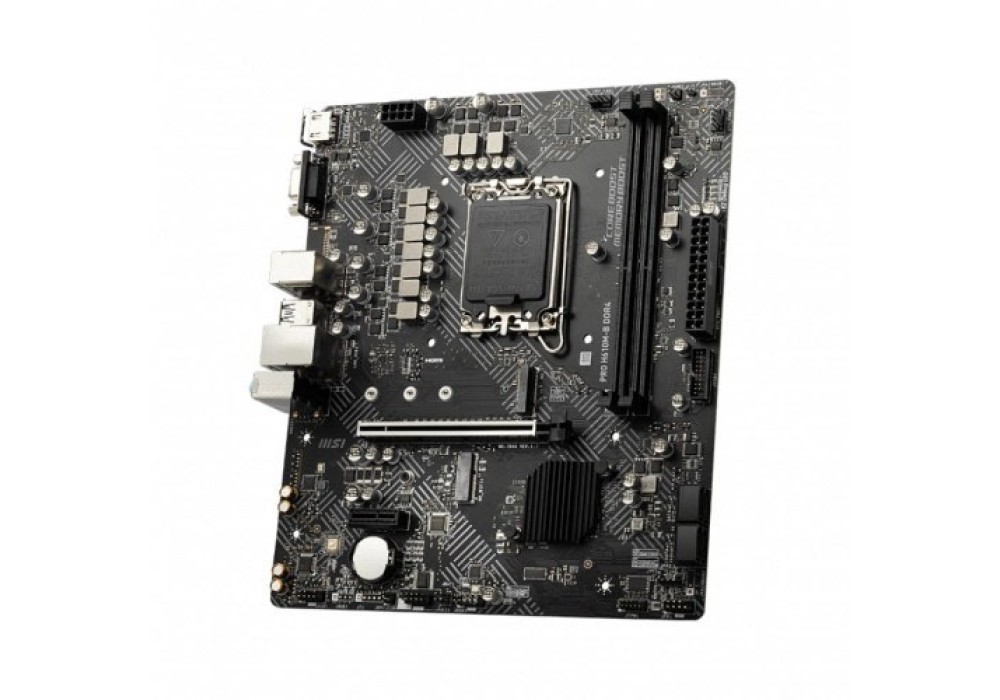

MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard

MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard
MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard
MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard
MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard
Out Of Stock
MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard
MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard
MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard
MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard
MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard
  • Stock: Out Of Stock
  • Model: PRO H610M-B DDR4
MSI MSI
Based on 0 reviews. - Write a review
0৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • Supports 12th Gen Intel Core Pentium Gold and Celeron processors for LGA 1700 socket
    • Supports DDR4 Memory up to 3200MAX MHz
    • Lightning Fast Experience PCIe 4.0
    • Core Boost Memory Boost Audio Boost
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1700
Chipset Intel H610 Chipset
Form Factor M-ATX Form Factor
9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
Expansion Slots
PCI 1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
Memory Specifications
Memory Type DDR4
Slots 2x DDR4 memory slots
Supported Memory Type 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Max. Memory Support up to 64GB
Motherboard
Audio Realtek ALC892/ ALC897 Codec
7.1-Channel High Definition Audio
Connectivity
VGA 1x VGA port

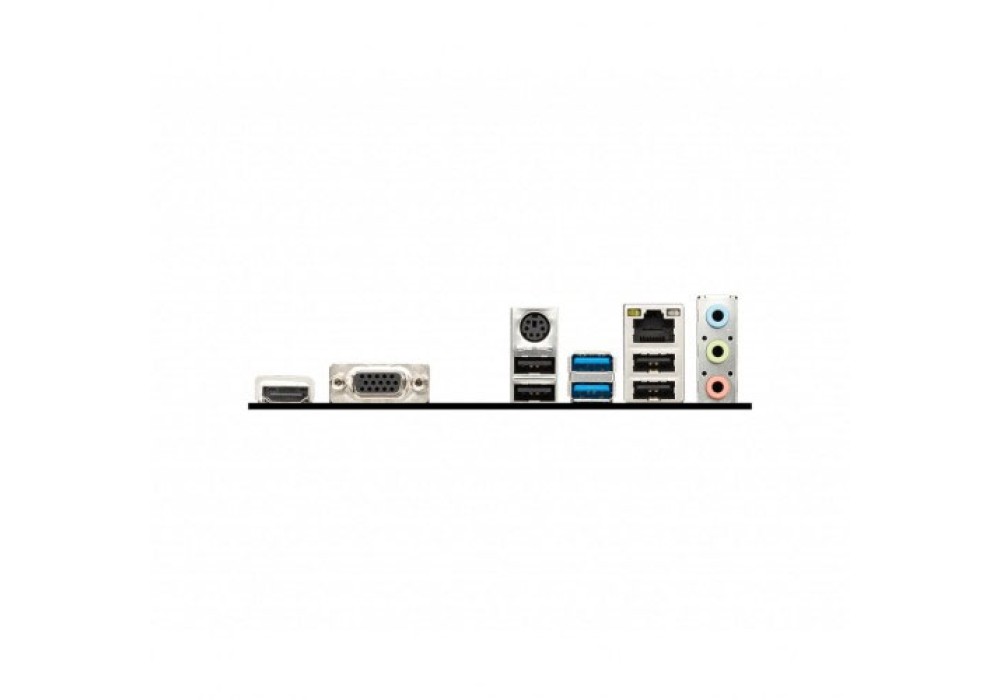

Connector & Ports
HDMI 1x HDMI 2.1
USB (s) Intel H610 Chipset:
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Intel I219V 1Gbps LAN controller
Supported Storage 4x SATA 6Gb/s ports
1x M.2 slot (Key M, from chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Smart Response Technology for Intel Core™ processors
Internal I/O Ports POWER CONNECTORS:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
FAN CONNECTORS:
1x 4-pin CPU fan connector
1x 4-pin system fan connector
SYSTEM CONNECTORS:
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
JUMPERS:
1x Clear CMOS jumper
LED FEATURES:
4x EZ Debug LED
TPM (Trusted Platform Module ) 1x TPM module connector
Graphics
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
Warranty Information
Manufacturing Warranty 03 years warranty
Description

MSI PRO H610M-B DDR4 12th Gen Mirco-ATX Motherboard

The MSI PRO H610M-B DDR4  features LGA1700 socket Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It has a 6+1+1 Hybrid Digital VRM Design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. It is designed with HDMI / D-Sub Ports for Multiple Displays.
