  • Stock: Out Of Stock
  • Model: PRO B760M-G DDR4
0৳
Key Features
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 2x DDR4, Max 64GB 4800(OC)
    • Graphics Output: 1x HDMI, 1x DP, 1x VGA
    • Features: 2x M.2 slot, Realtek RTL8125B 2.5Gbps LAN
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
General
Type DDR4
Basic Information
Supported CPU Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX
220mmx243.84mm
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Memory Specifications
Memory Size 64GB
Slots 4 x DIMM
Supported Memory Type Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

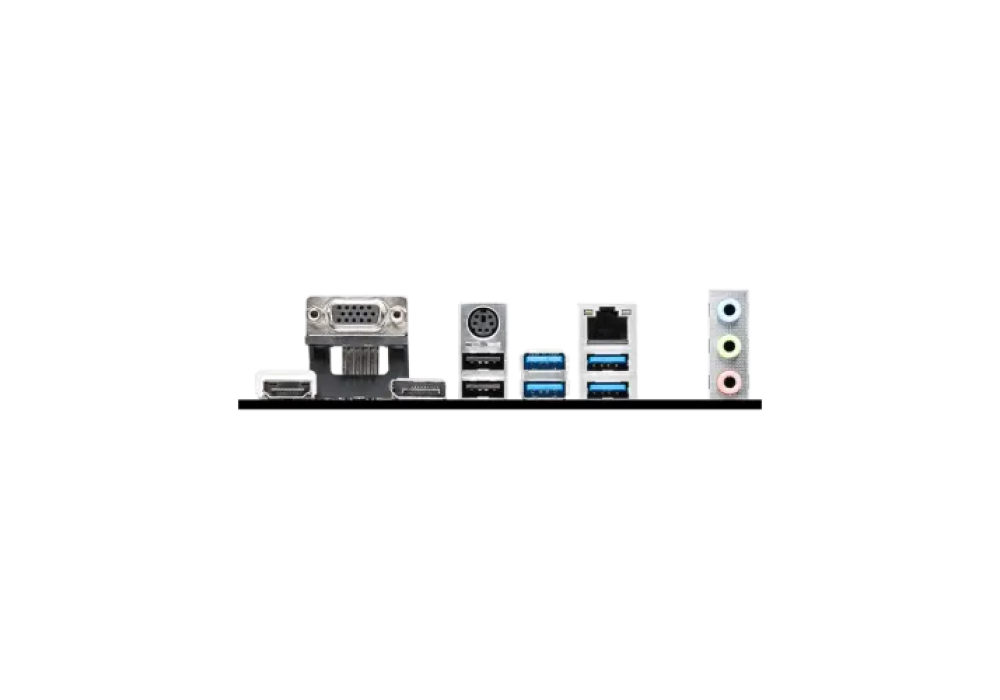

Connector & Ports
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Intel 2.5Gbps LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Audio Audio Connectors
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Graphics
Graphics
1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Warranty Information
Manufacturing Warranty 3 Years
Description

MSI PRO B760M-G DDR4 mATX Motherboard

MSI PRO B760M-G DDR4 mATX Motherboard is a high-performance motherboard that supports a broad selection of Intel CPUs, making it an appealing option for both casual and professional users. This motherboard supports Intel Core 14th, 13th, and 12th Generation CPUs, as well as Pentium Gold and Celeron processors. It makes use of the LGA 1700 socket for a variety of CPU choices. The motherboard supports DDR4 memory, with a dual-channel configuration and a clock speed of 4800+MHz (when overclocked). This guarantees that multitasking and data management go smoothly. The Core Boost technology, with its superior architecture and digital power design, assures that the motherboard can handle more CPU cores, leading to higher overall performance. This is particularly useful for demanding applications. Memory Boost technology is used to transmit clean and reliable data signals, guaranteeing excellent performance, stability, and compatibility with the memory modules installed. PCIe 4.0 compatibility is included, as well as Lightning Gen4 x4 M.2 slots with M.2 Shield Frozr. This implies you may use high-speed storage devices and other PCIe peripherals to achieve lightning-fast data transfer and loading times. The addition of a 2.5 Gigabit LAN connector upgrades the network solution for professional and multimedia applications. This assures a safe, reliable, and fast network connection, lowering latency and enhancing streaming performance while online gaming. The motherboard has Audio Boost technology, which provides studio-level sound quality for an immersive gaming experience. This function is especially useful for gamers who value crystal-clear audio during gaming sessions. Steel Armor is included on the motherboard to protect VGA cards from bending and electromagnetic interference (EMI). This not only improves the performance and stability of your graphics card but also assures the motherboard's general robustness and endurance.
