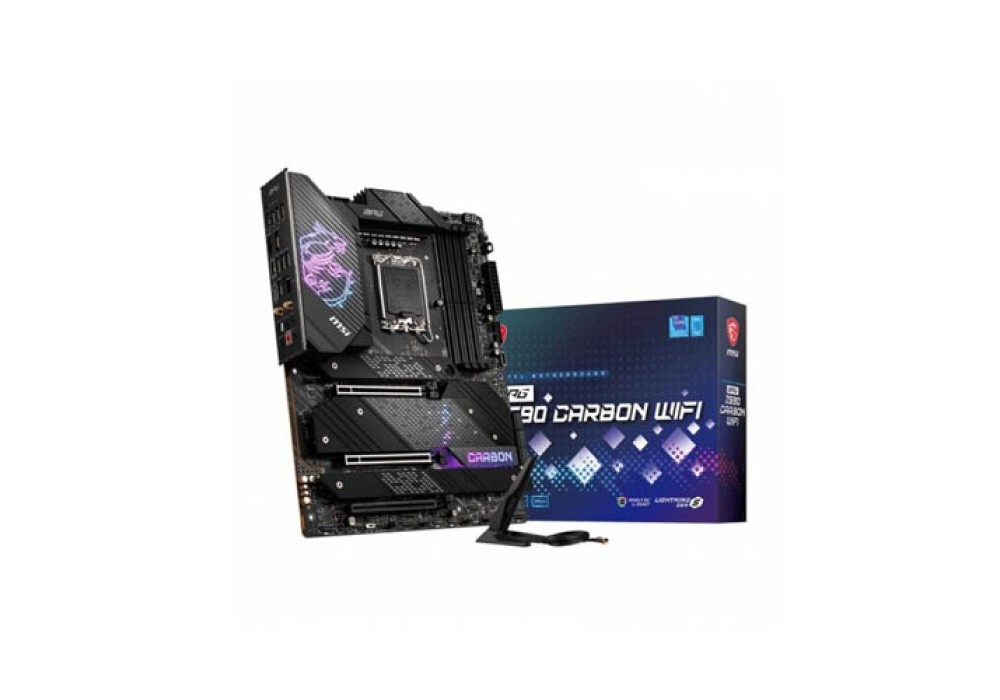

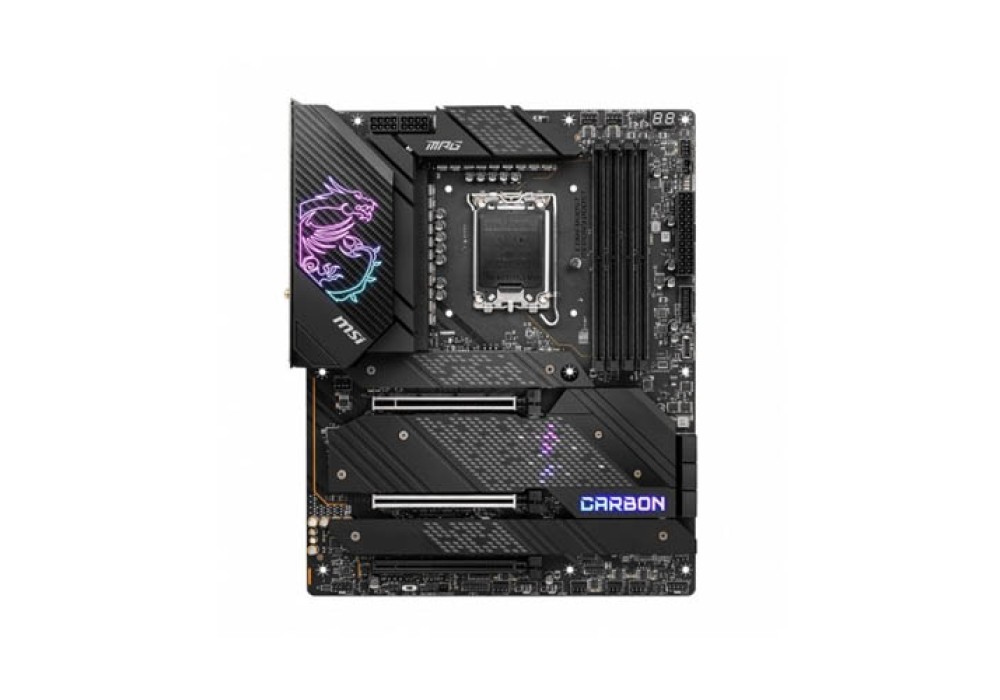

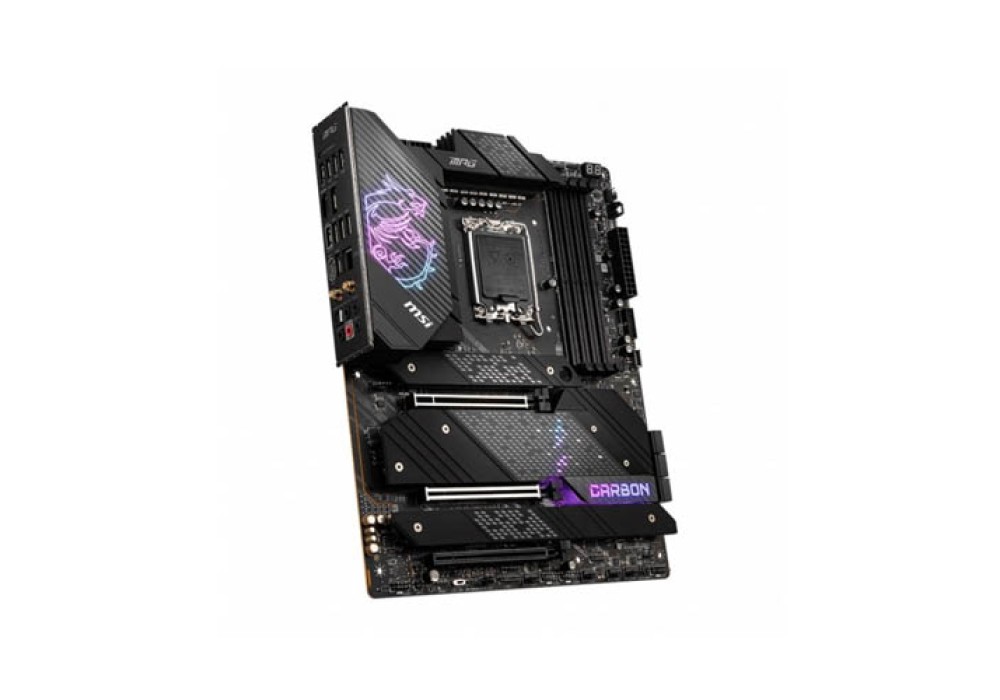

MSI MPG Z690 CARBON WIFI 12th Gen ATX Motherboard

Basic Information
Supported CPU Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors
Processor socket LGA1700
Chipset Intel Z690 Chipset
Form Factor ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 6666+ MHz
1DPC 2R Max speed up to 5600+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory 128GB
Expansion Slots
PCI 3x PCIe x16 slots
PCI_E1 & PCI_E2 slots (From CPU)
Support PCIe 5.0
Support x16/ x0, x8/ x8
PCI_E3 slot (From Z690 Chipset)
Supports PCIe 3.0 x4
M.2 Socket 5x M.2 slots (Key M)
Connector & Ports
TPM (Trusted Platform Module ) 1x TPM module connector
Wireless Communication module Intel Wi-Fi 6E module
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2, FIPS, FISMA
HDMI 1x HDMI 2.1
USB (s) Intel Z690 Chipset

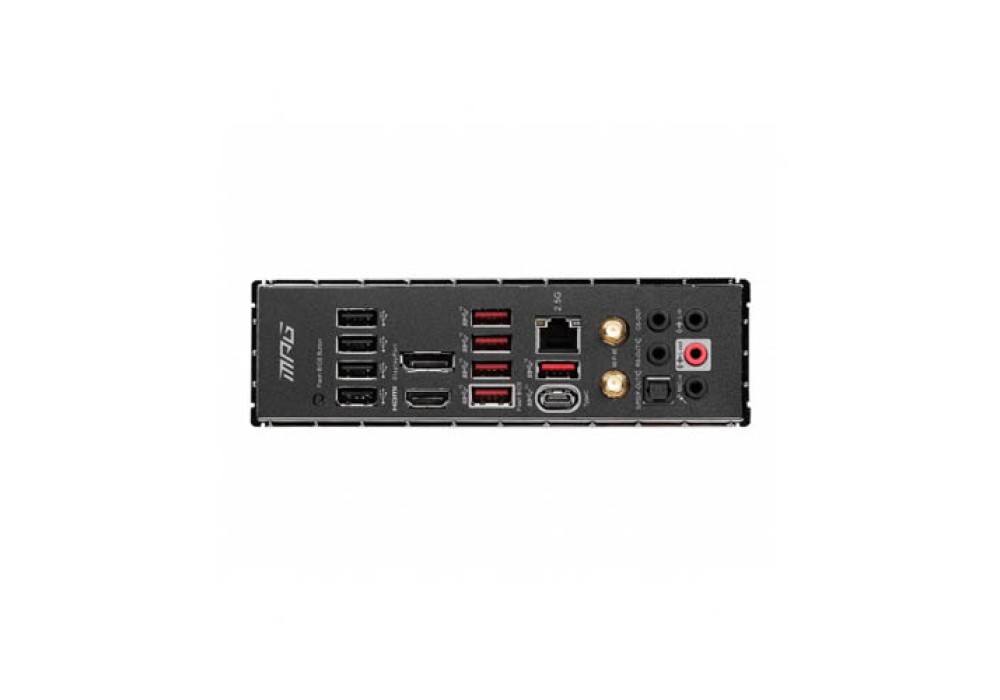

1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector)
2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
4 USB 2.0 ports on the back panel
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors
LAN Port (s) 1x Intel I225V 2.5Gbps LAN controller
Supported Storage 4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset)
2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061)
5x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports 2260/ 2280 storage devices
M2_3 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_4 slot (From Z690 Chipset)
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_5 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_2~5 support Intel Optane Memory
Supports Intel Smart Response Technology for Intel Core processors
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
5x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector
Warranty Information
Warranty 3 years

MSI MPG Z690 CARBON WIFI Motherboard

MSI MPG Z690 CARBON WIFI Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6666+(OC) MHz. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory Boost technology, Z690 CARBON WIFI is ready to deliver world-class memory performance. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2. It comes with an Enhanced Power Design. Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost.

Equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips, and Ambient devices. The Z690 CARBON WIFI comes with a 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 8-layer PCB made of 2oz thickened copper and server-grade level material.
