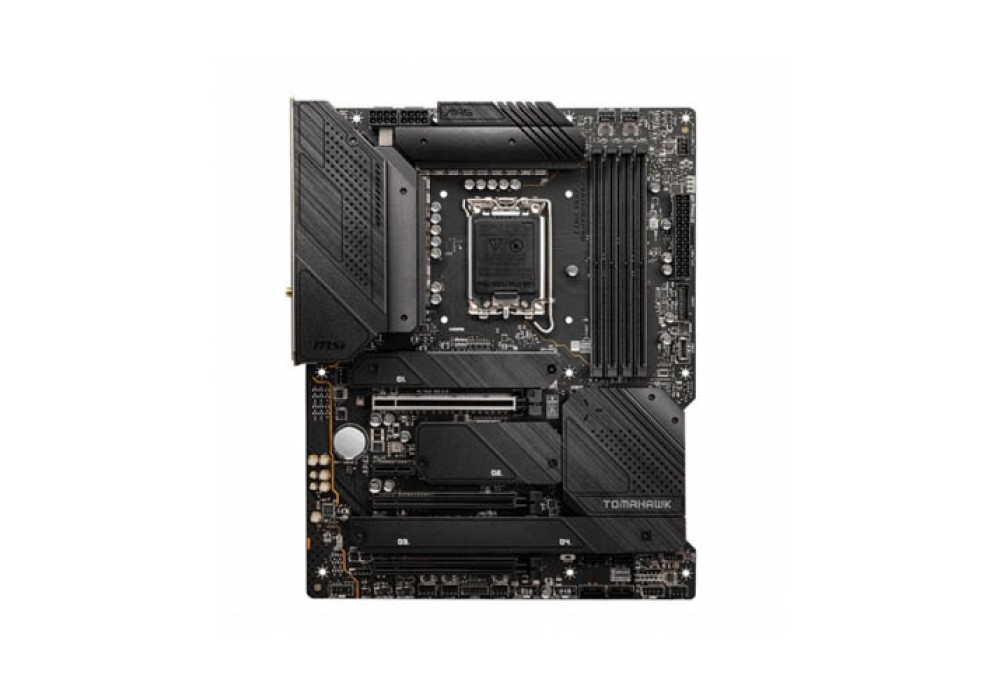

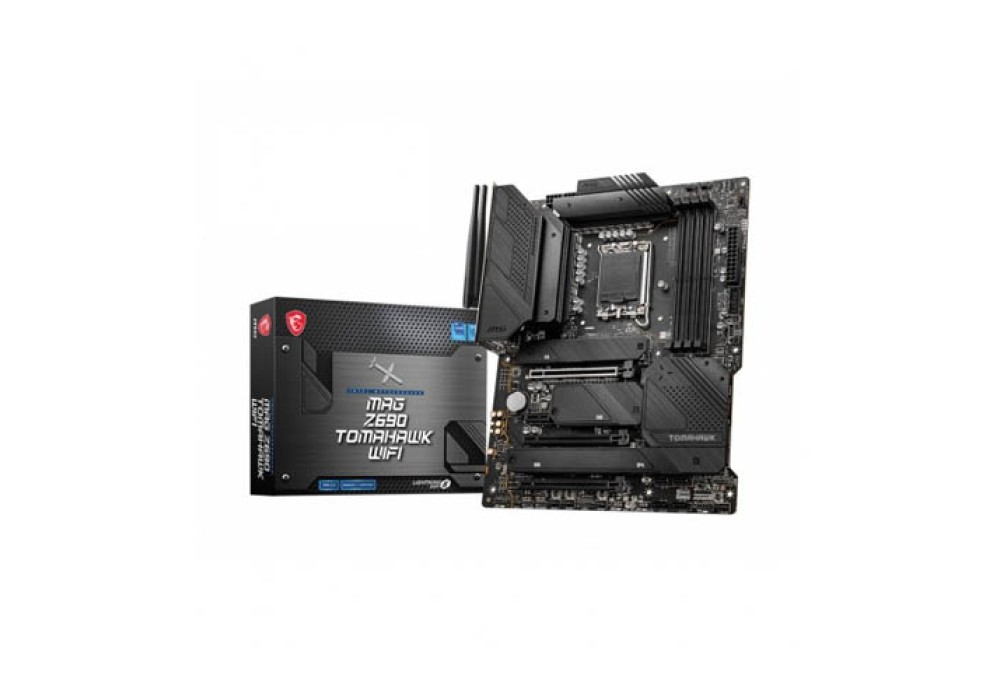

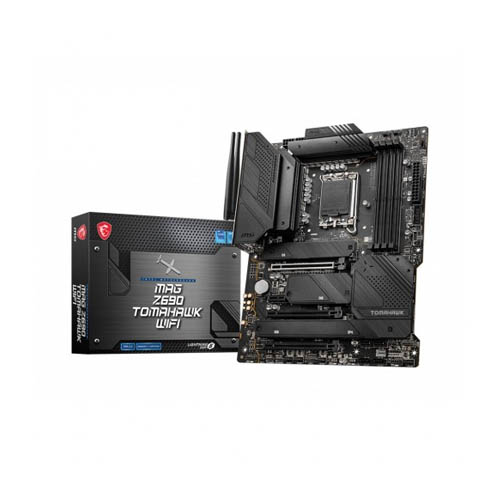

Streamline overclocking performance and connectivity with the MAG Z690 TOMAHAWK WIFI DDR5 LGA 1700 ATX Motherboard from MSI. Featuring an LGA 1700 socket and Z690 chipset, this motherboard is compatible with Intel 12th Gen Core, Pentium Gold, and Celeron processors. Install up to 128GB of dual-channel RAM across four DDR5 memory slots, with speeds up to 5200 MHz supported via overclocking. Four M.2 and six SATA III connectors accommodate storage drives, while a PCIe 5.0 x16 slot, two PCIe 3.0 x16 slots, and a PCIe 3.0 x1 slot can be used to install various adapter cards. This board also supports AMD CrossFireX for boosted multi-GPU performance.
Connect accessories via a USB 3.2 Gen 2×2 Type-C port, three USB 3.2 Gen 2, two USB 3.2 Gen 1, and two USB 2.0 Type-A ports on the rear I/O panel. Pair to wireless peripherals via Bluetooth 5.2 or go online with Wi-Fi 6. An RJ45 port is also present, supporting wired 2.5 Gigabit Ethernet connections. Connect to monitors via the DisplayPort 1.4 or HDMI 2.1 outputs. Internal headers provide connections for liquid or air cooling, dual CPU power, a TPM module, chassis intrusion alarm, a USB 3.2 Gen 2 Type-C port on the front panel, and more. Relying on the Realtek ALC4080 Audio Codec, the MSI MAG Z690 TOMAHAWK WIFI DDR5 supports 8-channel audio, sample rates up to 32-bit/384 kHz, and digital audio output.
