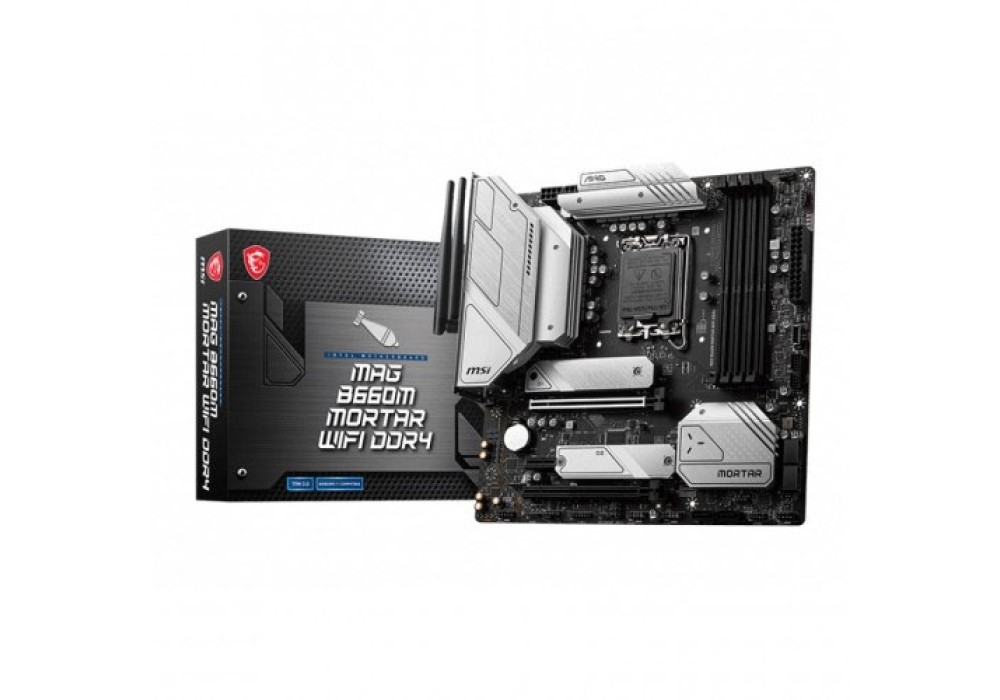

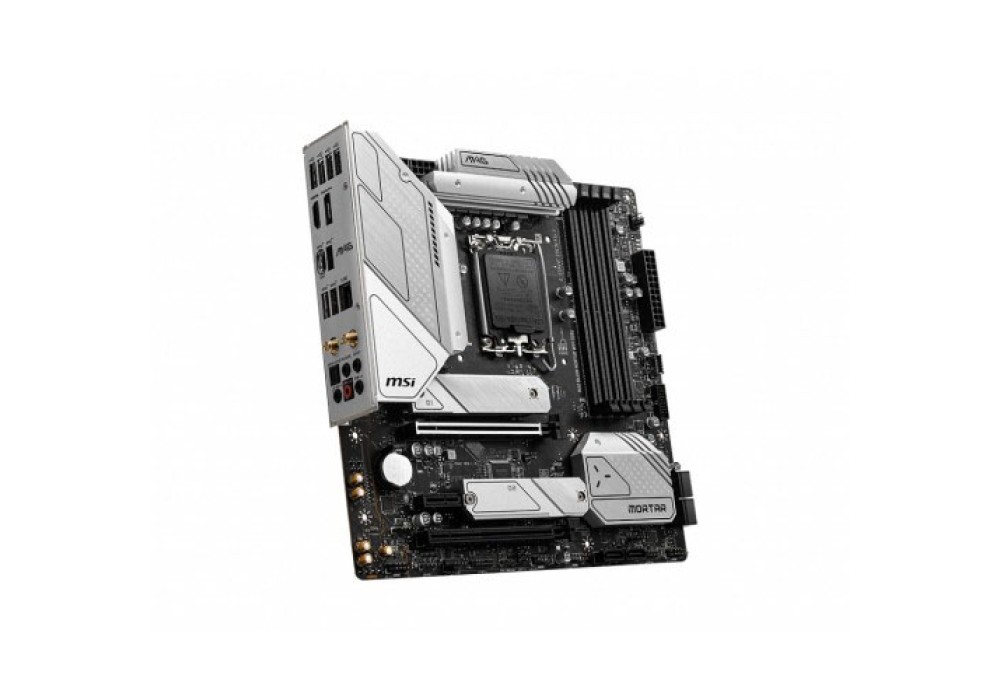

MSI MAG B660M MORTAR WIFI DDR4 12th Gen Micro-ATX Motherboard

Basic Information
Supported CPU Supports 12th Gen Intel Core, Pentium Gold and Celeron processors
Processor socket LGA1700
Chipset Intel B660 Chipset
Form Factor Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio Realtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Graphics
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2
Memory
Type DDR4
Slots 4x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory support up to 128GB
Expansion Slots
PCI 2x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports PCIe 4.0 x16
PCI_E3 slot (From B660 Chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot
M.2 Socket 2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Optane Memory
Connector & Ports
Display Port (s) DisplayPort 1.4 (BACK PANEL PORTS)
TPM (Trusted Platform Module ) 1x TPM module connector
Wireless Communication module Intel Wi-Fi 6
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2
HDMI HDMI 2.1 Port (BACK PANEL PORTS)
USB (s) Intel B660 Chipset
1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
4x USB 2.0 ports on the back panel
USB Hub-GL3590
3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors
LAN Port (s) 2.5G LAN Port
Supported Storage 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1
2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Optane Memory
Audio 7.1-Channel High Definition Audio
Supports S/PDIF output
Internal I/O Ports INTERNAL CONNECTORS:
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C connector
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector
BACK PANEL PORTS:
USB 2.0 Port
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT
Others Information
Special Features Supports 2-Way AMD CrossFire Technology
Warranty Information
Manufacturing Warranty 03 years warranty

MSI MAG B660M MORTAR WIFI DDR4 12th Gen Micro-ATX Motherboard

MSI MAG B660M MORTAR WIFI DDR4 Motherboard supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. This motherboard comes with Premium Thermal Solution, so that Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works and also this motherboard has 2.5G LAN and Intel Wi-Fi Solution, so that it helps to Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. By Utilizing 12th Gen Intel processors, the MSI B660 motherboards feature with latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. This motherboard designed with Lightning M.2, which helps to Running at PCIe Gen 4 maximizes performance for NVMe based SSDs. It is also has Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 and also With Steel armor PCIe slots. Supports AMD Crossfire. Here, the 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for Gamers.
