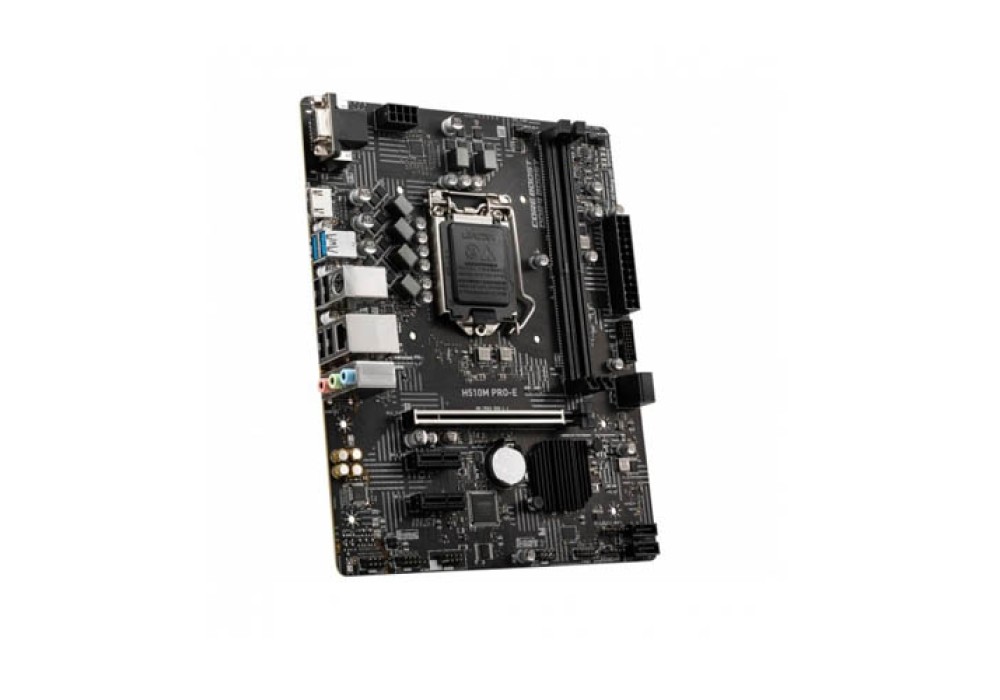

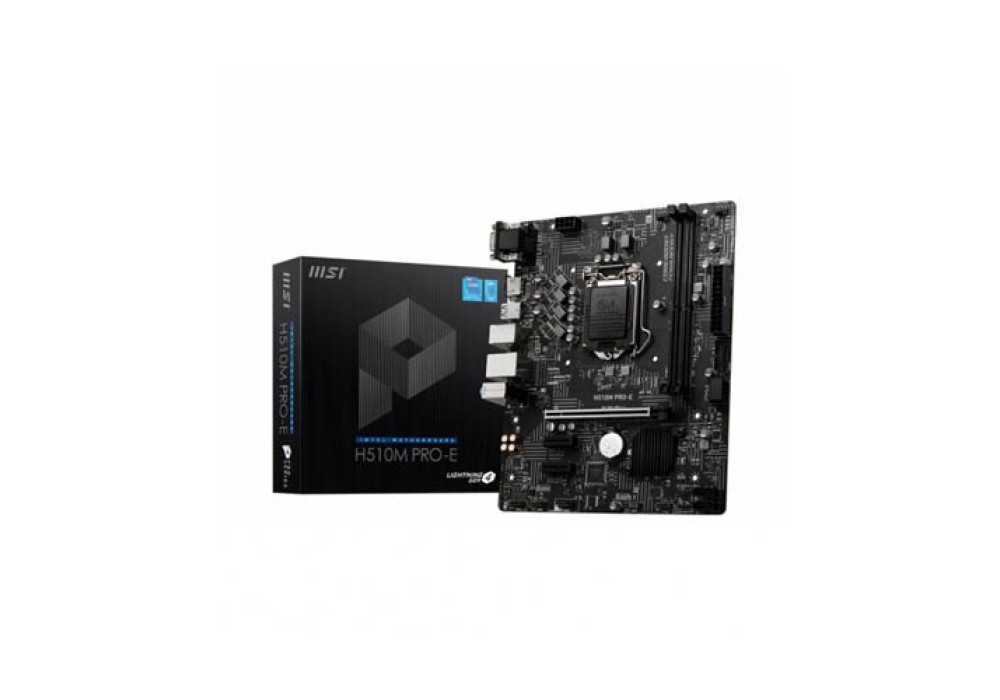

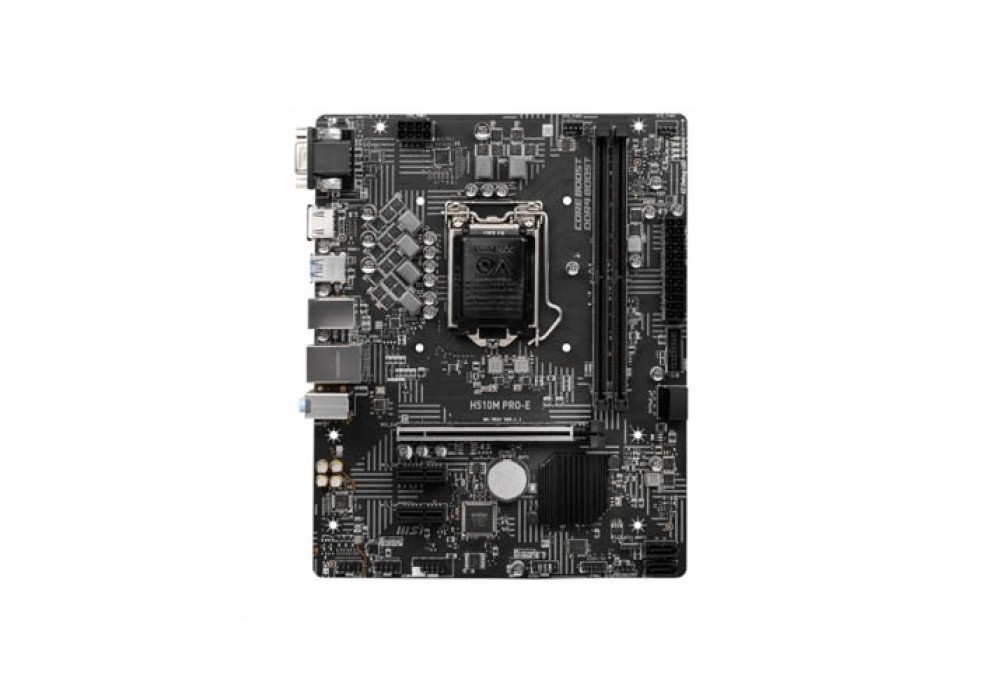

MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco-ATX Motherboard

Basic Information
Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and
Celeron Processors1
Chipset Intel H510 Chipset
Form Factor mATX Form Factor
9.3 x 7.5 in. (23.6 cm x 19.0 cm)
Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
Others
Graphics
Graphics 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz
Memory
Type DDR4
Slots 2x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory up to 64GB

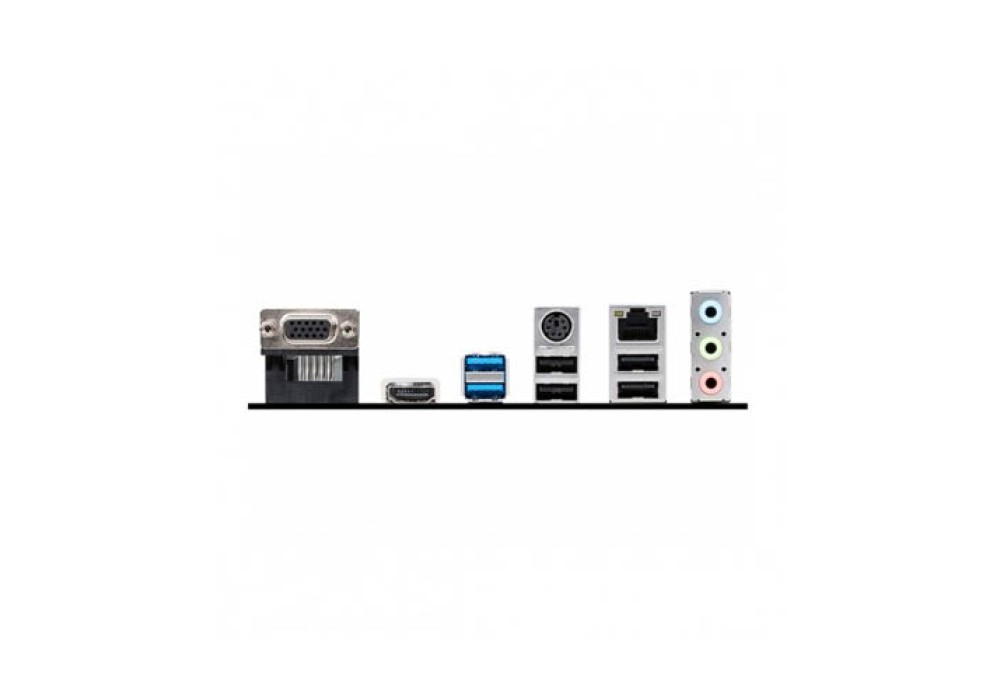

Connector & Ports
HDMI 1x HDMI 1.4 port
USB (s) Intel H510 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Realtek RTL8111 Gigabit LAN controller
Supported Storage 4x SATA 6Gb/s ports (From H510 Chipset)
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
1x USB 2.0 connector (support additional 2 USB ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
Warranty Information
Warranty 03 years warranty

MSI H510M PRO-E Mirco-ATX Motherboard

PRO Series Helps Users Work Smarter By Delivering An Efficient And Productive Experience. Featuring Stable Functionality And High-Quality Assembly, PRO Series Motherboards Provide Not Only Optimized Professional Workflows But Also Less Troubleshooting And Longevity.

FROZR AI COOLING

Detecting CPU & GPU Temperatures And Automatically Adjusting Fan Duty Of System Fans To A Proper Value By Adopting MSI AI ENGINE.

FAST AND FUTURE-READY STORAGE

MSI PRO Series Motherboards Support All The Latest Storage Standards, Which Allows Users To Connect Any Ultra-Fast Storage Device. Higher Efficiency Makes Your Work Easier.

EXTREME STABILITY & COMPATIBILITY TESTING

MSI Conducts Thorough Memory Testing With The Most Popular Memory Brands Under Extreme Conditions To Ensure Your System Runs Stable No Matter What. Our Memory Partners Include Brands Like Corsair, Crucial, Kingston, G.Skill And Many More To Optimize Memory Modules And Configurations.

Features :

Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold And Celeron Processors For LGA 1200 Socket

Supports DDR4 Memory, Up To 3200(Max) MHz

Core Boost: With Premium Layout And Digital Power Design To Support More Cores And Provide Better Performance.

DDR4 Boost: Advanced Technology To Deliver Pure Data Signals For The Best Performance And Stability.

Lightning Fast Experience: PCIe 4.0

Audio Boost: Reward Your Ears With Studio Grade Sound Quality

Steel Armor: Protecting VGA Cards Against Bending And EMI For Better Performance, Stability And Strength.
