- Stock: Out Of Stock
- Model: MSI H310M PRO-VDH Plus
| Basic Information | |
| Supported CPU | Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket |
| Chipset | Intel H310 Chipset |
| Form Factor | 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm) m-ATX Form Factor |
| Expansion Slots | |
| PCI | 1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots |
| Memory Specifications | |
| Memory Type | Supports Dual-Channel mode |
| Slots | 2 x DDR4 memory slots |
| Supported Memory Type | Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC) Supports DDR4 2666/ 2400/ 2133 MHz (by XMP OC) Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Max. Memory | 32GB |

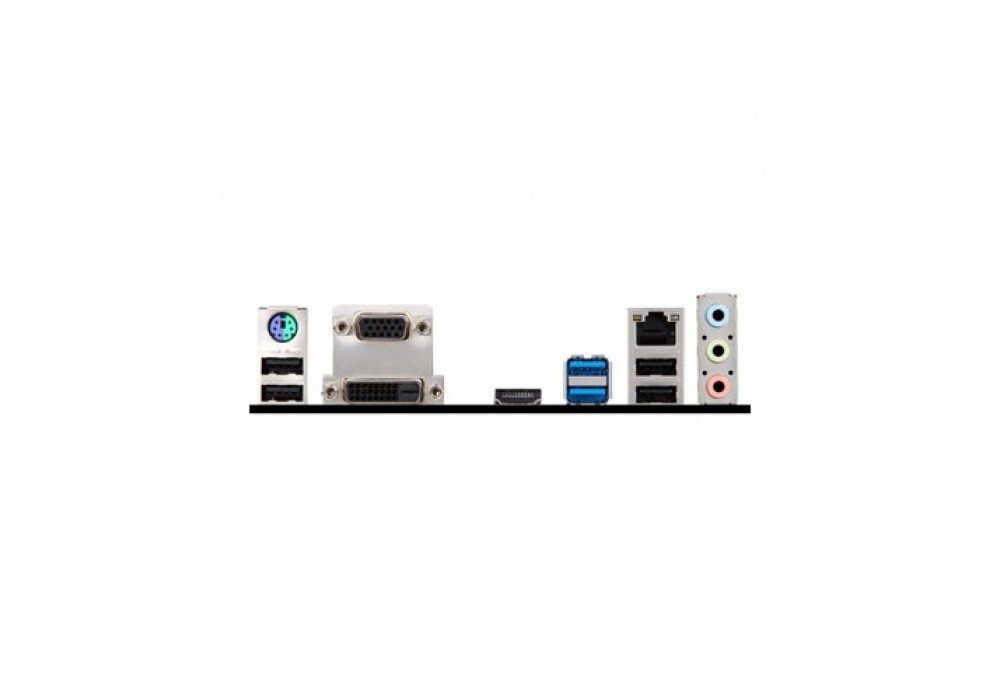

| Connector & Ports | |
| HDMI | 1 x HDMI port, supports a maximum resolution of 4096x2160@30H |
| USB (s) | 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) |
| LAN Port (s) | 1 x RTL8111H Gigabit LAN controller |
| Supported Storage | Intel H310 Chipset 4 x SATA 6Gb/s ports Supports Intel® Rapid Storage Technology |
| Audio | Realtek ALC887/ALC892 Codec 7.1-Channel High Definition Audio |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x Clear CMOS jumper 2 x Front panel connectors 1 x Serial port connector 1 x Chassis Intrusion connector 1 x Front panel audio connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector |
| DVI-D (s) | 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz |
| Graphics | |
| Graphics | 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30H |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
FEATURES:
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666MHz
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: Easiest way to troubleshoot.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

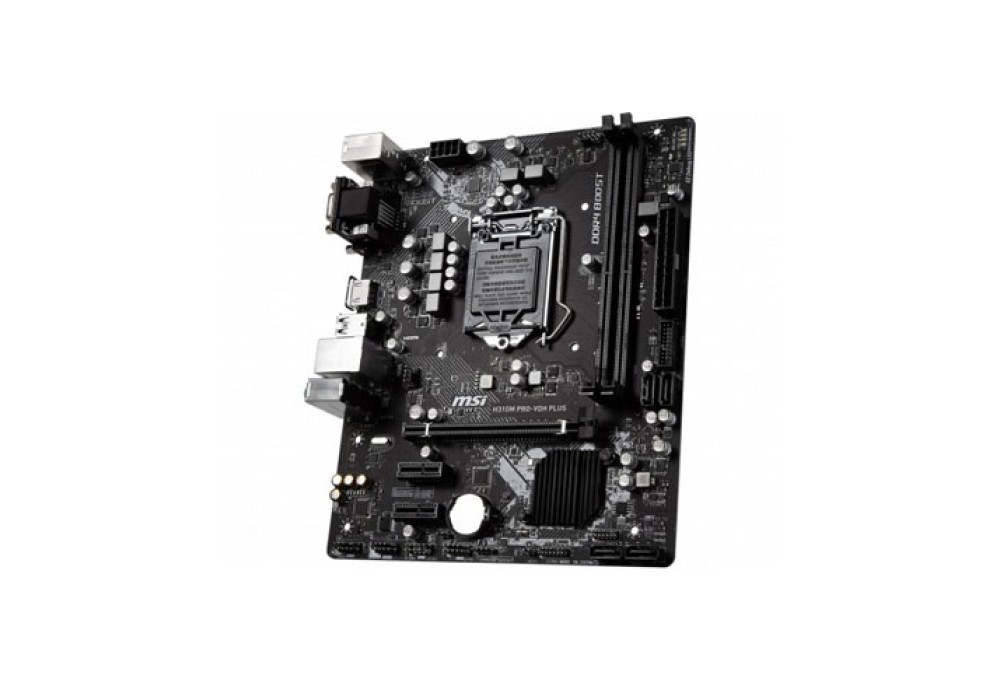

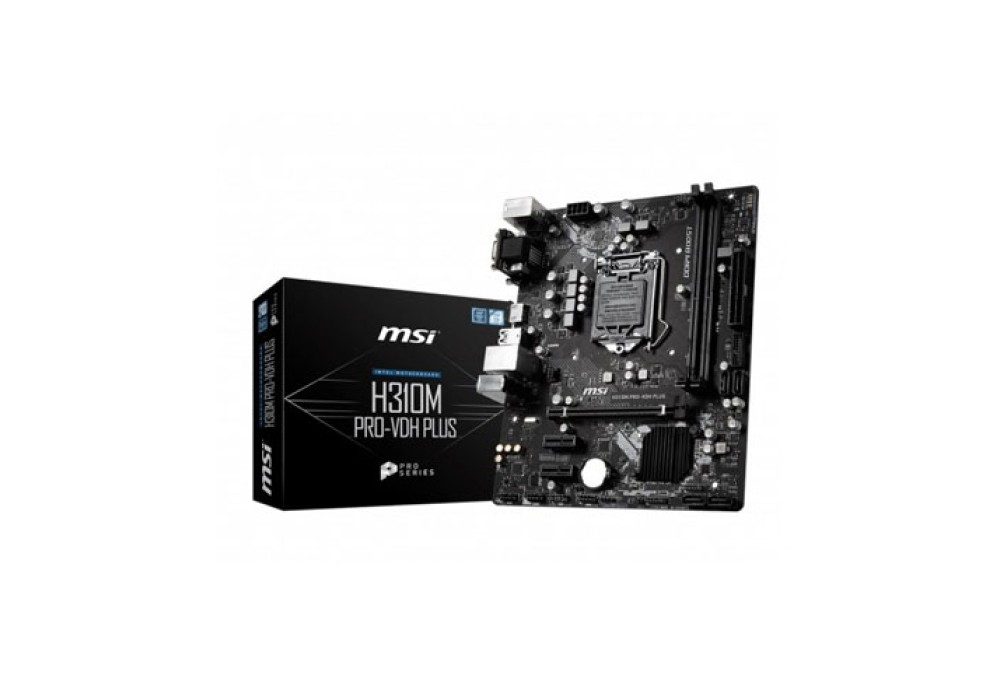

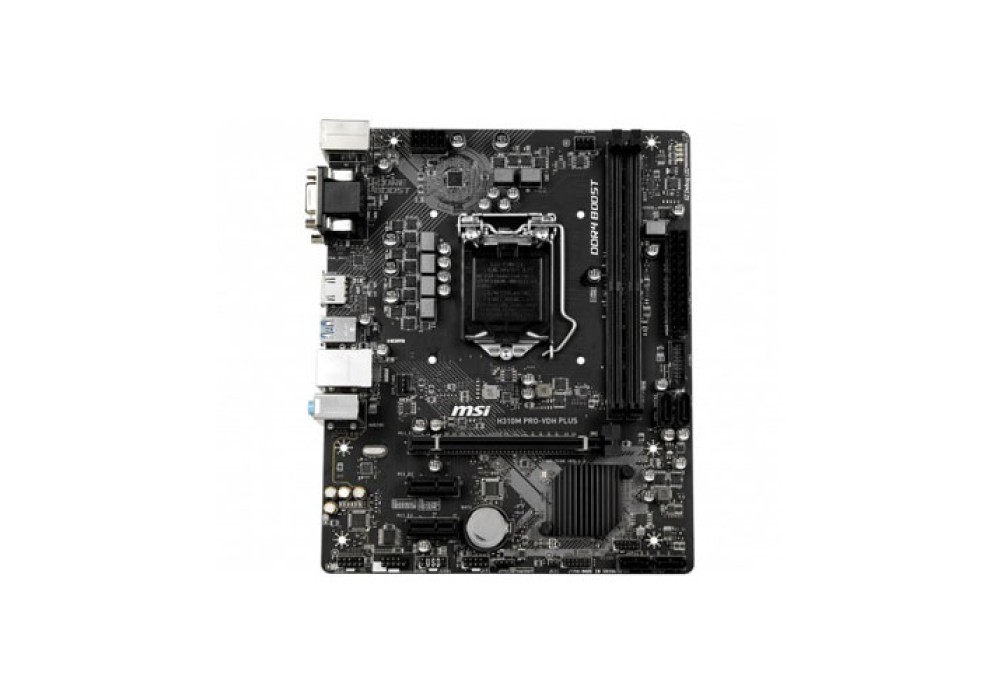

MSI H310M PRO-VDH Plus Intel 9th Gen Motherboard
MSI H310M PRO-VDH Plus Intel 9th Gen Motherboard is designed to fully utilize the Intel® Coffee Lake 6 core processors, ready to deliver world class performance when gaming. Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance.
UNMATCHED MEMORY PERFORMANCE
MSI H310M PRO-VDH Plus motherboard IS crammed with features to fuel your system's memory with more speed, higher overclock ability and increased stability.
BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.
PROFESSIONAL SOUND QUALITY
Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.
STAY COOL
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.
STABLE, SECURE & FAST NETWORKING
Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.
ENJOY THE LATEST VIDEO STANDARDS
Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI H310M PRO-VDH Plus motherboard is designed to make life easier for any professional user.
