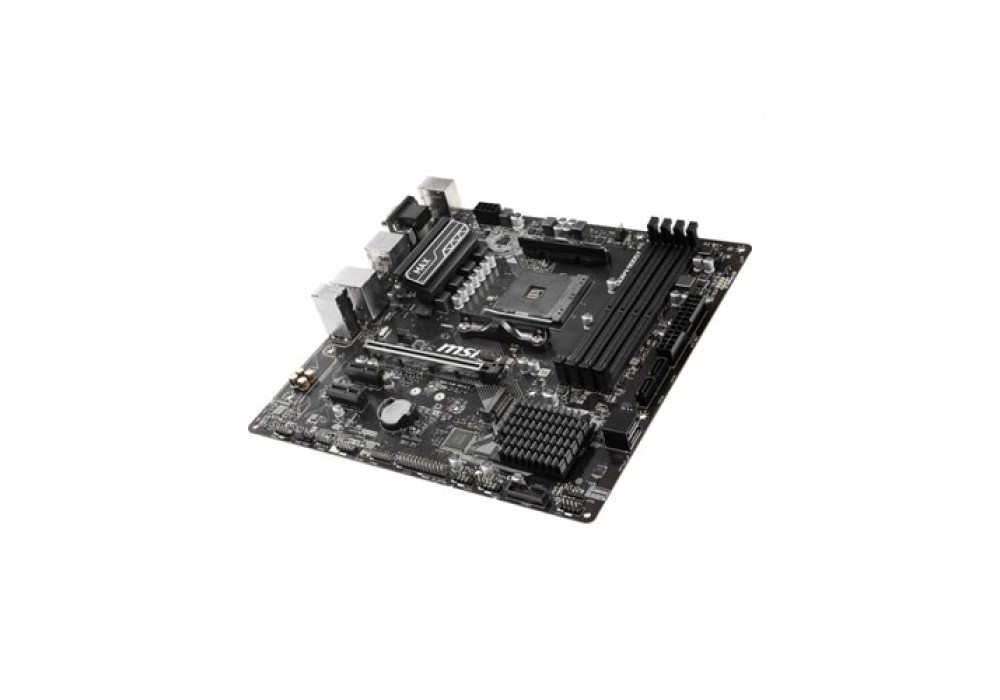

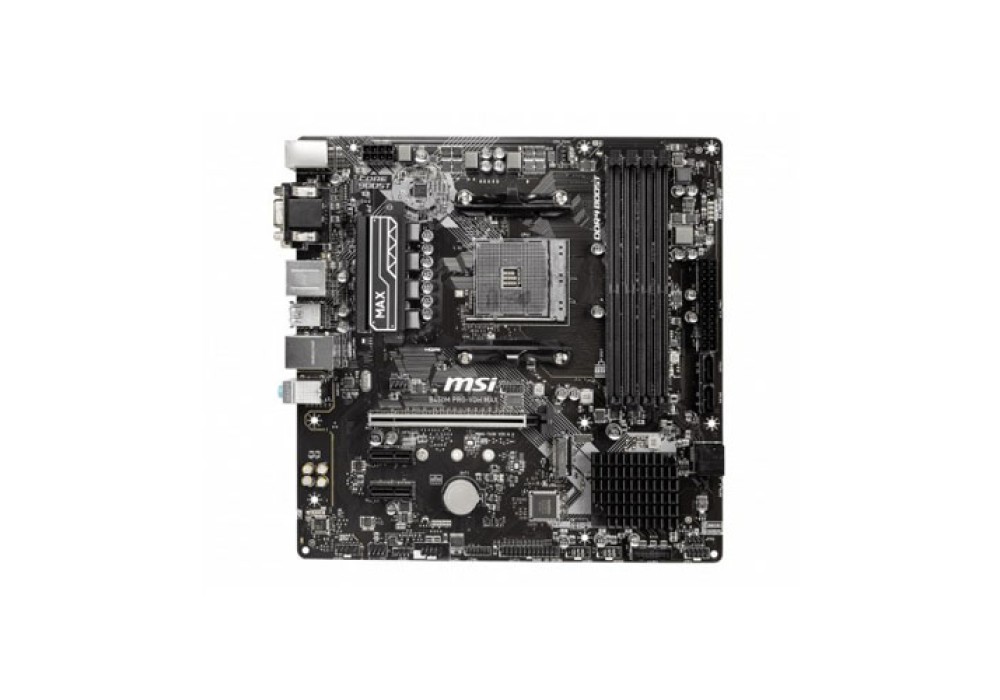

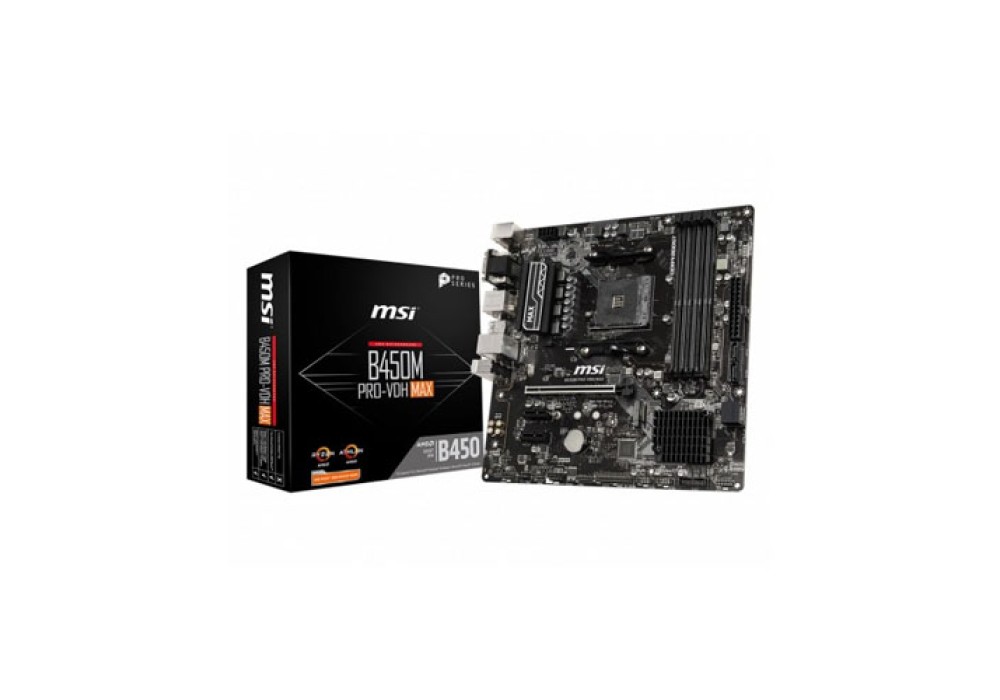

MSI B450M PRO-VDH MAX AMD AM4 Gaming Motherboard

Basic Information
Supported CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD
Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
Chipset AMD B450 Chipset
Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
m-ATX Form Factor
Graphics
Graphics 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
Max Shared Memory Maximum shared memory of 2048 MB
Memory
Type Dual Channel Architecture
Slots 4 x DDR4 memory slots
Supported Memory Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
For AMD Other Processors
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
Supports Dual Channel mode
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory
Maximum Memory 64GB
Expansion Slots
PCI 1 x PCIe 3.0 x16 slot
1st, 2nd and 3rd Gen AMD Ryzen support x16 mode
Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode
Athlon with Radeon Vega Graphics support x4 mode
2 x PCIe 2.0 x1 slots
M.2 Socket 1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon™ Vega Graphics and
2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega
Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices

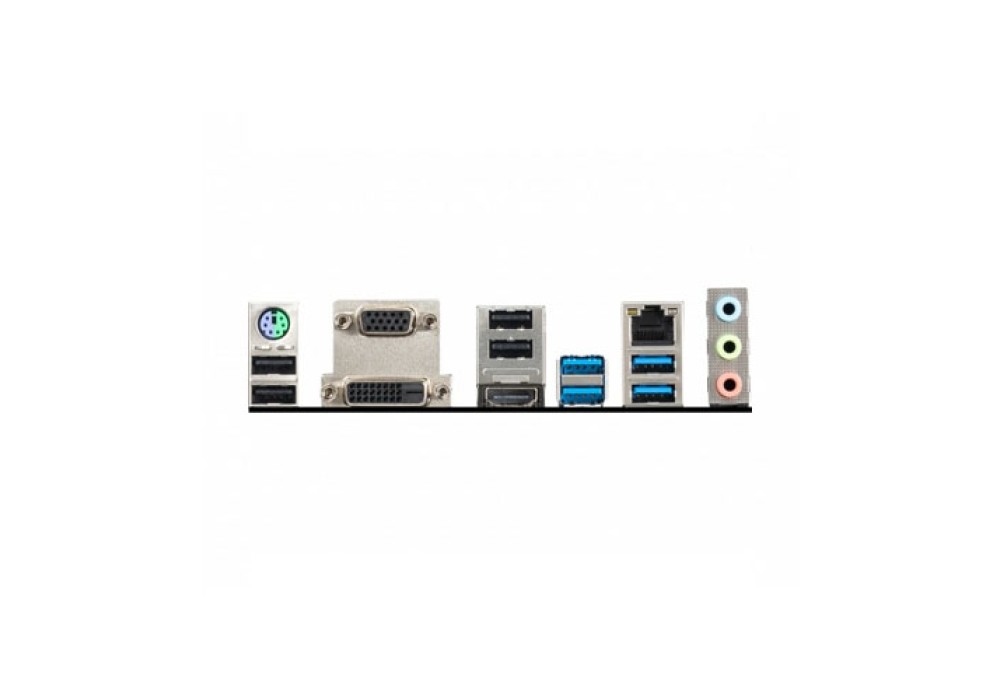

Connector & Ports
HDMI 1 x HDMI 1.4 port (resolution of 4096x2160 @30Hz, 2560x1600 @60Hz)
DVI-D (s) Yes1 x DVI-D port (resolution of 1920x1200@60Hz)
USB (s) AMD B450 Chipset
2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the
internal USB connectors)
AMD processor
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s) 1 x Realtek 8111H Gigabit LAN controller
Supported Storage AMD B450 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and
2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega
Graphics) and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
Audio Realtek ALC892 Codec
7.1-Channel High Definition Audio
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x 4-pin CPU fan connector
2 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Parallel port connector
1 x RGB LED strip connector
1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty 03 Years Warranty

FEATURES:

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 3466+(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Audio Boost: Reward your ears with studio grade sound quality.
  • EZ Debug LED: Easiest way to troubleshoot
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • PCI-E Steel Armor: Protecting VGA cards against bending and EMI.

MSI B450M PRO-VDH MAX AMD AM4 Gaming Motherboard

MSI B450M PRO-VDH MAX motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.

STAY COOL FOR RELIABLE SYSTEM

Cooling your PC is essential for reliable performance. MSI B450M PRO-VDH MAX motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.

MAXIMUM COMPATIBILITY

Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.

ENHANCED PERFORMANCE

MSI B450M PRO-VDH MAX motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

CPU

Power on your RYZEN processor with optimized circuit layouts and high quality power delivery parts for an incredibly stable operation.

MEMORY

Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST.

STORAGE

MSI B450M PRO-VDH MAX motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

AUDIO

Reward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience.
