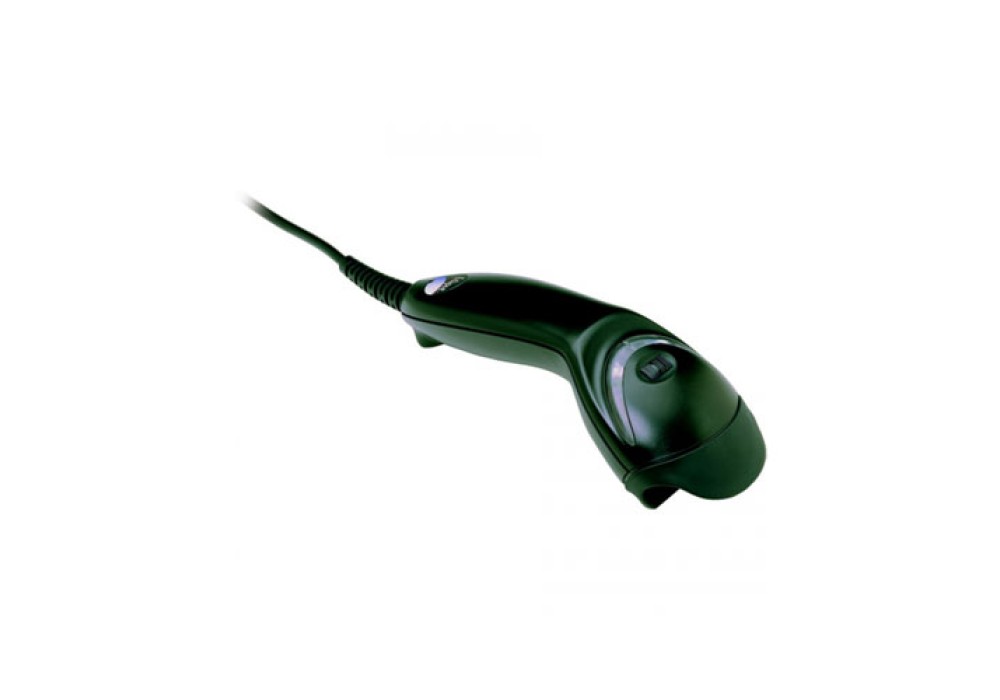

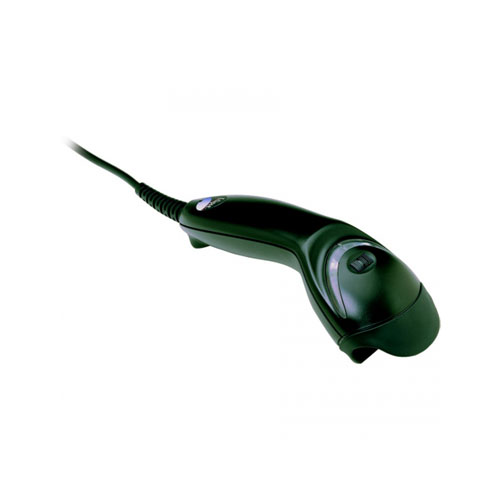

Honeywell Eclipse 5145 (1D) Handheld Barcode Scanner

Honeywell Eclipse 5145 (1D) Handheld Barcode Scanner

The  Honeywell Eclipse™ 5145 device is a single-line, handheld laser scanner with a compact form factor that's perfect for retail applications. With patented CodeGate™ technology, your team members can easily target the desired barcode and complete data transmission with a simple press of a button.

CodeGate™ Equipped

Zero in on the desired code and complete data transmission with the push of a single button – ideal for menu scanning applications.

MECHANICAL

Dimensions (LxWxH)- 169 mm x 63 mm x 51 mm (6.7 in x 2.5 in 2.0 in)

Weight- 100 g (3.5 oz)

ELECTRICAL

Input Voltage- 5 VDC + 0.25 V

Operating Power- 675 mW (125 mA @ 5 V)

Host System Interfaces- USB, RS232, Keyboard Wedge, IBM 468xx (RS485)

SCAN PERFORMANCE

• Scan Pattern-Single scan line

• Scan Speed-72 scan lines per second
• Scan Angle-Horizontal: 50°
• Symbol Contrast- 35% minimum reflectance difference
• Pitch, Skew- 68°, 52°
• Decode Capability-Reads standard 1D and GS1 DataBar symbologies
