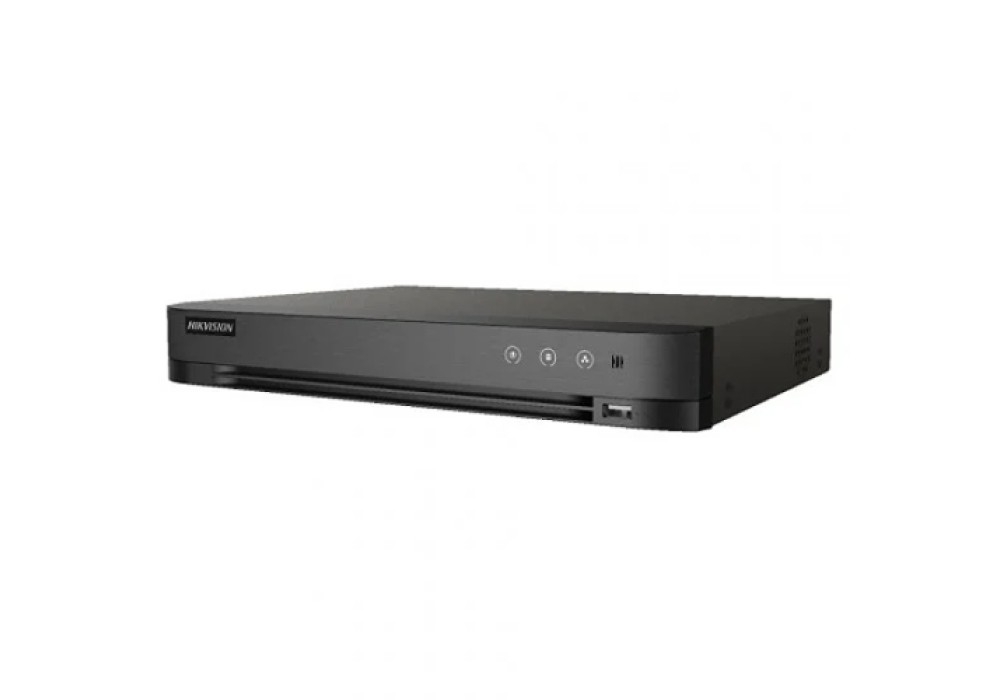

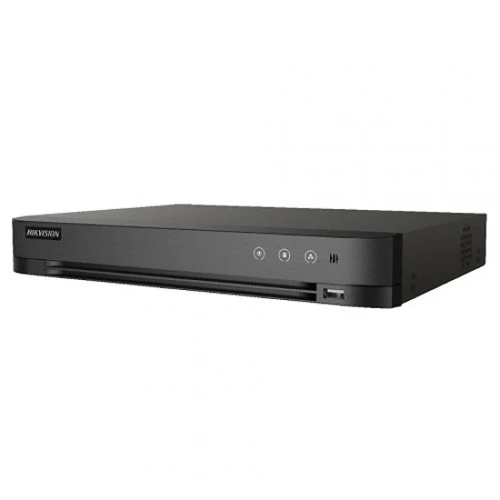

Hikvision IDS-7216HQHI-M2-S 16Channel 2HDD 5MP Supported DVR

Hikvision IDS-7216HQHI-M2-S 16Channel 2HDD 5MP Supported DVR
Hikvision IDS-7216HQHI-M2-S 16Channel 2HDD 5MP Supported DVR
  • Stock: In Stock
  • Model: IDS-7216HQHI-M2-S
Hikvision Hikvision
Based on 0 reviews. - Write a review
22,050৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
DVR / NVR / XVR Specification
Auxiliary Interface SATA : 2 SATA interface
Capacity : Up to 10 TB capacity for each disk
Serial Interface : RS-485 (half-duplex)
USB Interface : 1 × USB 2.0；
1 × USB 3.0

Alarm In/Out : N/A
Network Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection : 128
Network Interface : 1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
Recording Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution : Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Video Bitrate : 32 Kbps to 6 Mbps
Dual-Stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps
Video and Audio IP Video Input : 2-ch (up to 18-ch) Up to 6 MP resolution Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps ;Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input : 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output

CVBS Input : PAL/NTSC

CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480Synchronous Playback : 16-ch
HDTVI Input : 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.

AHD Input : 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input : 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
General
Power Power Supply : 12 VDC
Physical Specification
Others Consumption : ≤ 40 W
Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : 10% to 90%
Dimensions 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
≤ 2 kg (4.4 lb)
Warranty Information
Warranty 01 year warranty
Description

Hikvision IDS-7216HQHI-M2-S 16Channel 2HDD 5MP Supported DVR

The Hikvision IDS-7216HQHI-M2-S 16ch Acusense DVR is a turbo HD 5.0 DVR with Deep Learning-based analysis and facial identification. It also supports H.265 Pro+/H.265 Pro/H.265 video compression, a maximum distance of 800 m for 1080p and 1200 m for 720p HDTVI signal transmission, IP cameras (up to 6 PM), and a maximum capacity of 10 TB per HDD, This DVR is dual-stream supported and stream type Video, Video & Audio. The Hikvision iDS-7216HQHI-M2/S 16ch Acusense DVR is an Ethernet interface.

Features:

    • 16 channels and 2 HDDs 1U AcuSense DVR
    • False alarm reduction through human and vehicle target classification based on deep learning
    • Efficient H.265 pro+ compression technology
    • Encoding ability up to 1080p @ 15 fps
    • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
    • Up to 8 network cameras can be connected
