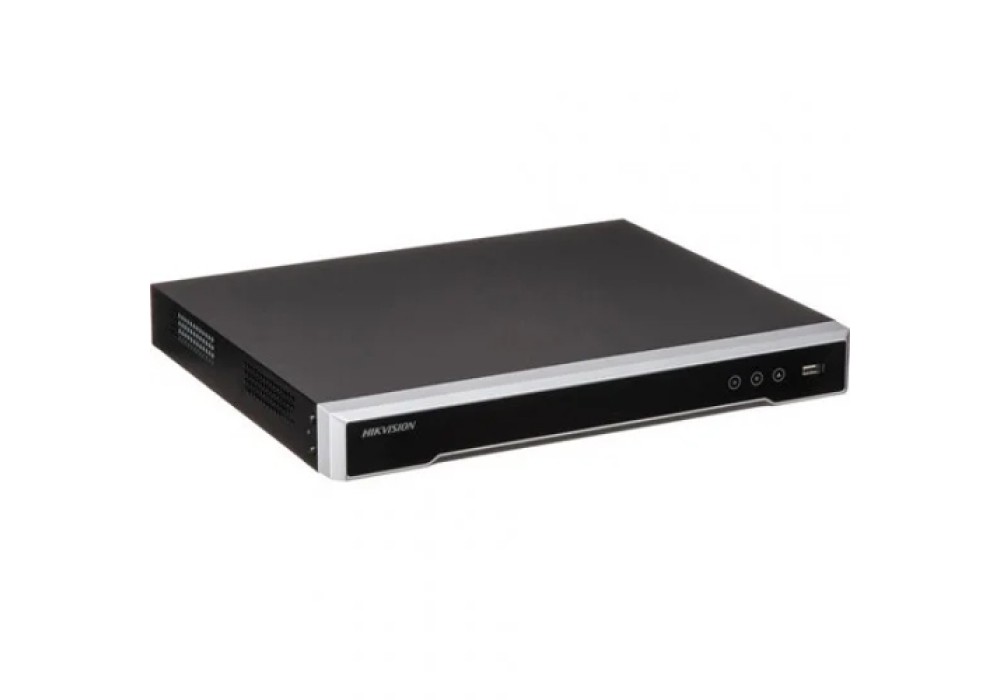

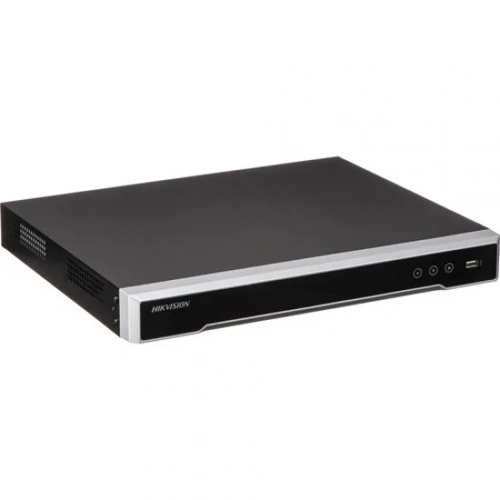

Hikvision DS-7608NI-Q2 8-CH 1U 4K NVR

DVR / NVR / XVR Specification
Auxiliary Interface SATA : 2 SATA interfaces
Capacity : Up to 8 TB capacity for each disk
Alarm In/Out : N/A (4/1 is optional)
USB Interface : 2 × USB 2.0
Decoding Decoding Format : H.265+,H.265,H.264+,H.264
Recording Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback : 8-ch
Decoding Capability : 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream Type : Video, Video & Audio
Network Remote Connection : 32
Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface : 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Video and Audio IP Video Input : 8-ch
Incoming Bandwidth : 80 Mbps
Outgoing Bandwidth : 80 Mbps
HDMI Output : 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA Output : 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Video Output Mode : HDMI/VGA simultaneous output
ENVIRONMENTAL
Humidity 10 to 90 %
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
General
Consumption ≤ 15 W (without HDD)
Power Supply 12 VDC, 3.33 A
Others Chassis : 1U chassis
Physical Specification
Dimension 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight ≤ 1.8 kg (without HDD, 4.0 lb.)
Warranty Information
Warranty 01 year warranty

Hikvision DS-7608NI-Q2 8-CH 1U 4K NVR

Hikvision DS-7608NI-Q2 NVR features up to 8-channel IP camera input, H.265+ / H.265 /H .264+ / H.264 video format, up to 1-channel 8MP or 5-channel 1080p decoding capacity, and up to 80Mbps incoming bandwidth.
Model Hikvision DS-7608NI-Q2Type8 Channel Network Video Recorder (NVR)Max HDD Support (GB,TB)Up to 6TB capacity for each diskVideo Recording Res.8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF Video Output (VGA)1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz Video Output (HDMI)4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60HzTwo way Audio1-ch, RCA (2.0 Vp-p, 1KΩ) Network Interface (RJ45)1, RJ45 10M/100M/1000M self-adaptive Ethernet interfaceUSB Port2 x USB2.0Number HDD interface (SATA)2 SATA Interface Audio Output Channel1-ch, RCA (Linear, 1KΩ)Power Supply1 2VDC Dimensions385 x 315 x 52mm Others IP video input: 8-ch, Up to 8 MP resolution, Incoming & Outgoing bandwidth: 80Mbps, Synchronous Playback: 8-ch, Live view / Playback: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF, Power: <-40W, Chassis: 1U chassis, Weight(without HDD): <-1.8Kg, Feature: Hik-Connect for easy network management, Smart search for the selected area in the video; and smart playback to improve the playback efficiency, Instant playback for assigned channel during multi-channel display mode, VCA detection alarm is supported, Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized, Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc., 1 self-adaptive 10/100/1000 Mbps network interface, H.265+ compression effectively reduces the storage space and costs by up to 75%, 2 SATA interfaces connectable for recording and backup, HDMI and VGA independent outputsPart NoDS-7608NI-Q2 Made in/ Assemble China Country Of Origin China
