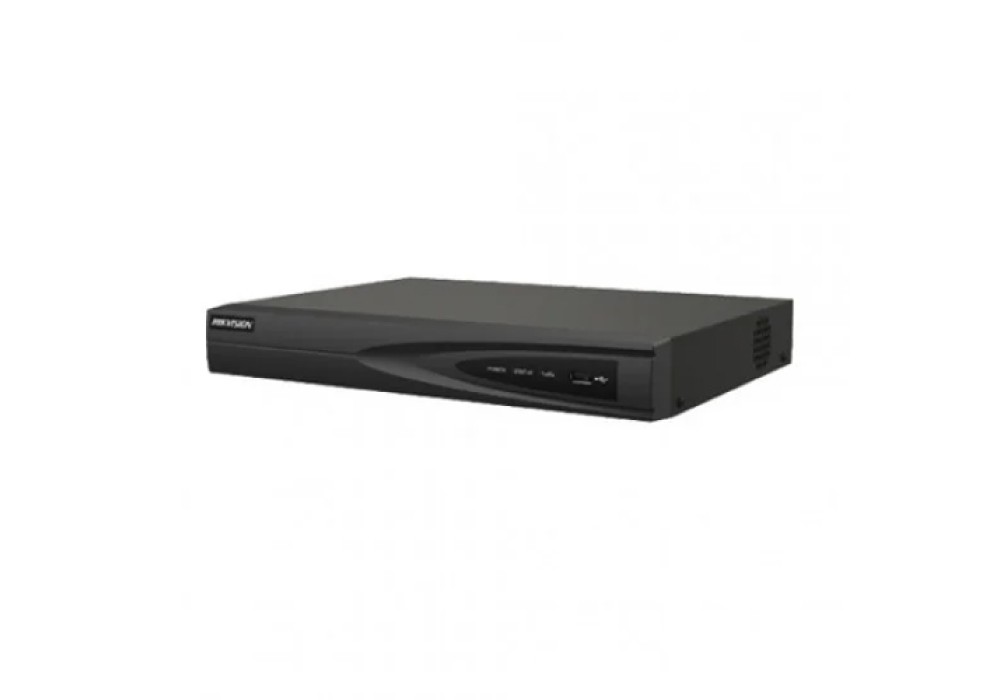

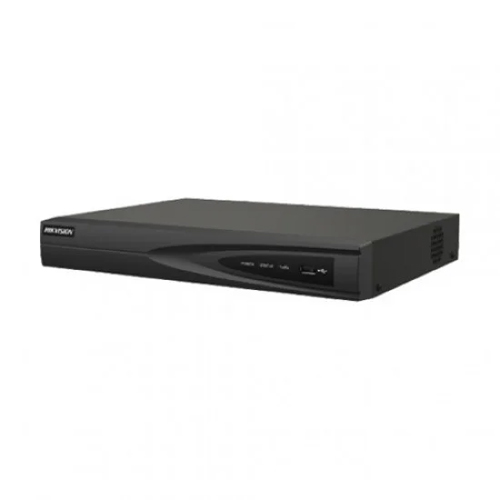

Hikvision DS-7608NI-Q1/8P 8-Ch 1U 8 PoE 4K NVR

DVR / NVR / XVR Specification
Auxiliary Interface SATA : 1 SATA interface
Capacity : Up to 8TB capacity for each disk
USB Interface : 2 × USB 2.0
Decoding Decoding Format : H.265+,H.265,H.264+,H.264
Decoding Capability : 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Synchronous Playback : 8-ch
Recording Resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Network Network Protocol : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface : 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Video and Audio IP Video Input : 8-ch
HDMI Output : 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA Output : 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode : HDMI/VGA simultaneous output
Incoming Bandwidth : 80 Mbps
Outgoing Bandwidth : 80 Mbps
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω)
ENVIRONMENTAL
Humidity 10 to 90 %
Working Temperature -10 to +55º C (+14 to +131º F)
General
Consumption ≤ 10 W (without enabling PoE)
Power Supply 48 VDC, 1.88 A
Others PoE :
Interface : 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power : ≤ 75W
Physical Specification
Dimension 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight ≤ 1 kg (2.2 lb)
Warranty Information
Warranty 01 year warranty

Hikvision DS-7608NI-Q1/8P 8-Ch 1U 8 PoE 4K NVR

    • Up to 8 channel IP cameras can be connected
    • Supports decoding H.265+/H.265/H.264+/H.264 video formats
    • Up to 4K high-definition live view, storage and playback
    • Up to 4-ch @ 1080p decoding capacity
    • Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected
    • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
    • 1 HDD for continuous video recording
    • Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
