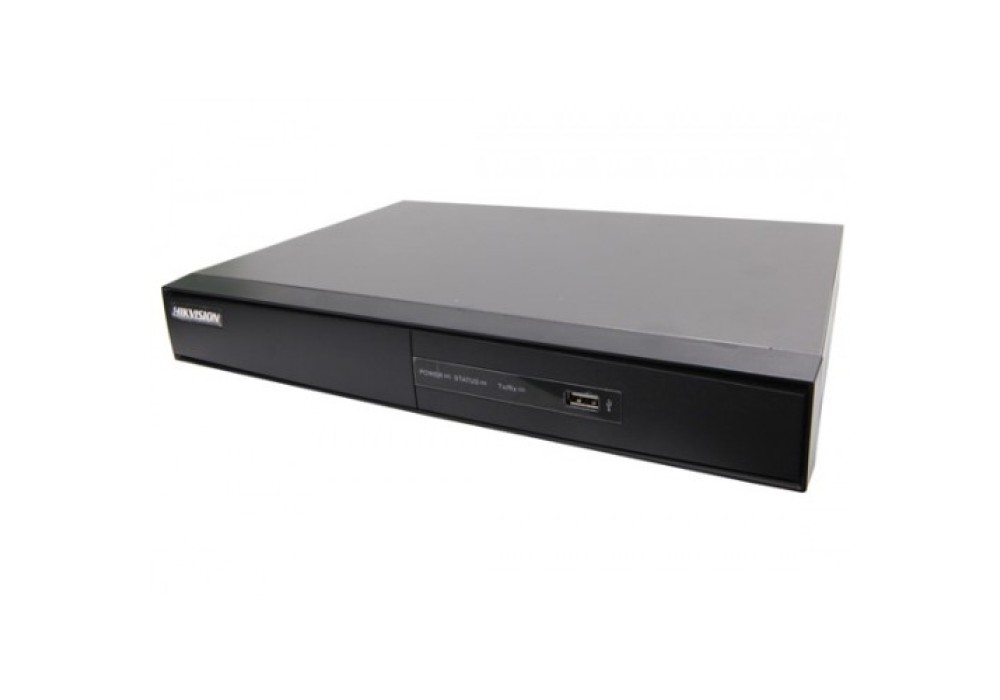

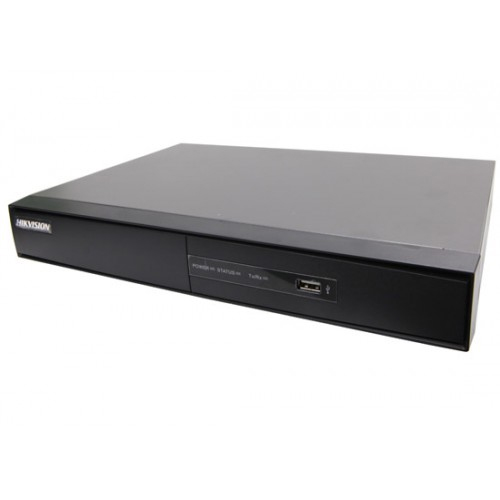

HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR

HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR
HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR
  • Stock: In Stock
  • Model: DS-7232HQHI-K2
Hikvision Hikvision
Based on 0 reviews. - Write a review
40,550৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
DVR / NVR / XVR Specification
Auxiliary Interface Serial Interface : RS-485 (half-duplex)
SATA : 2 SATA interfaces
Capacity : Up to 10 TB capacity for each disk
Alarm In/Out : N/A
USB Interface : Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
Network Remote Connection : 128
Total Bandwidth : 128 Mbps
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface : 1,
Recording Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution : When 1080p lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate : Main stream: When 1080p Lite mode not is enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3
MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate : 32 Kbps to 6 Mbps
Dual-Stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps
Video and Audio IP Video Input : 2-ch (up to 34-ch) Enhanced IP mode on: 8-ch (up to 40-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input : 32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Incoming Bandwidth : Enhanced IP mode on: 160 Mbps

HDTVI Input : 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1/2/3/4.

AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
CVBS Input : PAL/NTSC

HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Output : 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback : 16-ch
General
Power Power Supply : 12 VDC, 4.5 A
Physical Specification
Others Consumption : ≤ 65 W (without HDD)
Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : 10% to 90%
Dimensions 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
≤ 2 kg (4.4 lb)
Warranty Information
Warranty 01 year warranty
Description

HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR

HIKVISION DS-7232HQHI-K2 32-CH Turbo HD 1080P DVR is connectable to HD-TVI & analog cameras. It supports HDMI output and VGA output. It can serve up to 1920×1080P resolution. It features 1 SATA interface. It supports access by EZVIZ Cloud P2P. It supports Efficient H.265 pro+ compression technology. Connectable to H.265+/H.265/H.264+/H.264 IP cameras, Up to 4 MP lite resolution for recording, HDMI output at up to 4K (3840 × 2160) resolution, 2 SATA interfaces, Support access by EZVIZ Cloud P2P, Support DDNS.

Features:

    • 32 channels and 2 HDDs 1U DVR
    • Efficient H.265 pro+ compression technology
    • Encoding ability up to 1080p @ 15 fps
    • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
    • Up to 40 network cameras can be connected
