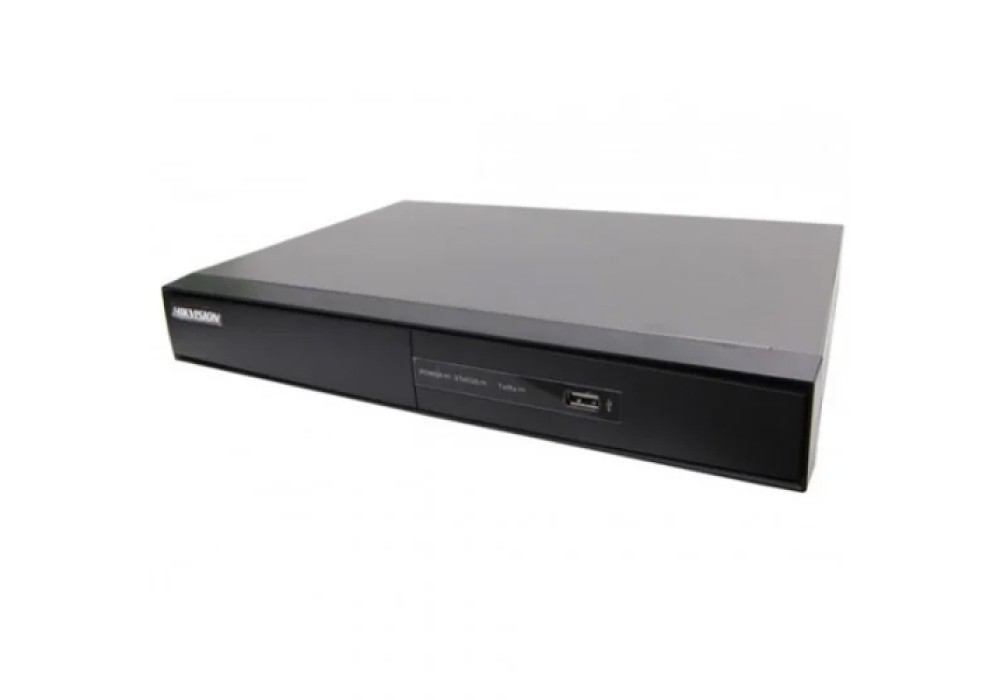

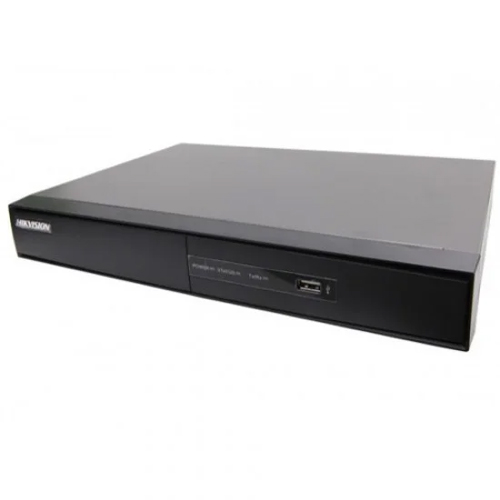

HIKVISION DS-7232HGHI-K2 32-CH Turbo HD 720P DVR

DVR / NVR / XVR Specification
Auxiliary Interface SATA : 2, SATA interface
Capacity : Up to 10 TB capacity for each disk
USB Interface : Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
Network Remote Connection : 128
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface : 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Recording Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution : 1080p lite/720p/VGA/WD1/4CIF/CIF

Frame Rate : Main stream:
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)

Video Bitrate : 32 Kbps to 4 Mbps
Dual-Stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps
Video and Audio IP Video Input : 2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input : 32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
AHD Input : 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
CVBS Input : PAL/NTSC
HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω)
Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback : 16-ch
General
Power Power Supply:
12 VDC
Power Consumption <-18 W
Dimensions 380 x 320 x 48 mm
Weight <-2.2 kg
Others Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity : 10% to 90%
Warranty Information
Warranty 01 year warranty

HIKVISION DS-7232HGHI-K2 32-CH Turbo HD 720P DVR

HIKVISION DS-7232HGHI-K2 32-CH Turbo HD 720P DVR is connectable to HD-TVI & analog cameras. It supports HDMI output and VGA output. It can serve up to 1920×1080P resolution. It features 1 SATA interface. It supports access by EZVIZ Cloud P2P. It supports Efficient H.265 pro+ compression technology. It has encoding ability up to 1080p lite @ 15 fps. Supports HDTVI/AHD/CVI/CVBS/IP video input, Encoding ability up to 1080p lite @ 15 fps, up to 10/18-ch 1080p IP camera input for DS-7232HGHI-K2, Max. 1200 m for 720p HDTVI signal.


FEATURES:

  • 32 channels and 2 HDDs 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p lite @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 18 network cameras can be connected
