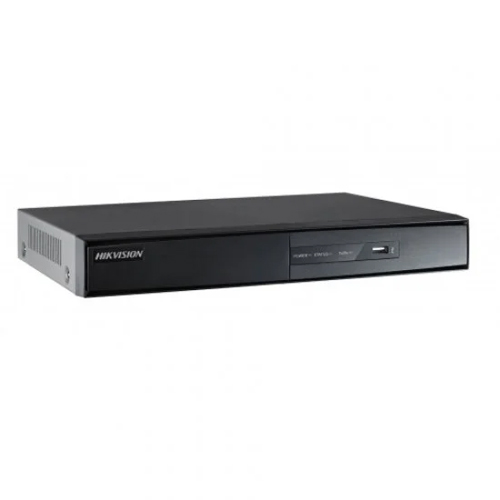

HIKVISION DS-7216HQHI-K2 16 Channel Turbo HD 1080P DVR

HIKVISION DS-7216HQHI-K2 16 Channel Turbo HD 1080P DVR
HIKVISION DS-7216HQHI-K2 16 Channel Turbo HD 1080P DVR
  • Stock: In Stock
  • Model: DS-7216HQHI-K2
Hikvision Hikvision
Based on 0 reviews. - Write a review
22,050৳
EMI starts at 7,732৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Specification
DVR / NVR / XVR Specification
Auxiliary Interface SATA : 2 SATA interfaces
Capacity : Up to 10 TB capacity for each disk
Alarm In/Out : N/A
USB Interface : Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0,
Serial Interface : RS-485 (half-duplex)
Network Remote Connections : 128
Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface : 1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
Recording Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution : When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,

Frame Rate : Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),

Video Bit Rate : 32 Kbps to 6 Mbps
Dual Stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bit Rate : 64 Kbps
Video and Audio IP Video Input : 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input : 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI Input : 1080p25, 1080p30, 720p25, 720p30 CVBS Input : PAL/NTSC
Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback : 16-ch

HDTVI Input : 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2.,

VGA/HDMI Output : VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω),
General
Power Power Supply : 12 VDC
Physical Specification
Others Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : 10% to 90%
Weights (Without HDD) : ≤ 2 kg (4.4 lb)
Consumption (Without HDD) : ≤ 25 W
Dimensions 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Warranty Information
Warranty 01 year warranty
Description

HIKVISION DS-7216HQHI-K2 16 Channel Turbo HD 1080P DVR

HIKVISION 16-CH Turbo HD 1080P DVR, Connectable to HD-TVI & analog cameras, It supports Efficient H.265 pro+ compression technology. It supports Encoding ability up to 1080p @ 15 fps. HDMI output at up to 4K (3840 × 2160) resolution. It supports 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP). Up to 24 network cameras can be connected. VCA detection alarm (line crossing detection & intrusion detection) is supported. Connectable to H.265+/H.265/H.264+/H.264 IP cameras, Up to 4 MP lite resolution for 1 SATA interface. Support access by EZVIZ Cloud P2P, Support DDNS.



Quick Compare

Quick Compare

Comparison of DS-7216HQHI-K2 vs DS-7104HGHI-F1 vs IDS-7216HQHI-M2-S vs DS-7216HQHI-K1 which are most simmiler.
Product HIKVISION DS-7216HQHI-K2 16 Channel Turbo HD 1080P DVR HIKVISION DS-7104HGHI-F1 4 Channel Turbo HD 720P DVR Hikvision IDS-7216HQHI-M2-S 16Channel 2HDD 5MP Supported DVR HIKVISION DS-7216HQHI-K1 16 Channel Turbo HD 1080P DVR
Image HIKVISION DS-7216HQHI-K2 16 Channel Turbo HD 1080P DVR HIKVISION DS-7104HGHI-F1 4 Channel Turbo HD 720P DVR Hikvision IDS-7216HQHI-M2-S 16Channel 2HDD 5MP Supported DVR HIKVISION DS-7216HQHI-K1 16 Channel Turbo HD 1080P DVR
Price 22,050৳ 5,000৳ 2,900৳ 22,050৳ 19,550৳
Model DS-7216HQHI-K2 DS-7104HGHI-F1 IDS-7216HQHI-M2-S DS-7216HQHI-K1
Brand Hikvision Hikvision Hikvision Hikvision
Availability In Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.
Based on 0 reviews.
Based on 0 reviews.
Based on 0 reviews.
Summary HIKVISION DS-7216HQHI-K2 16 Channel Turbo HD 1080P DVRHIKVISION 16-CH Turbo HD 1080P DVR, Connectable to HD-TVI & analog cameras, It supports Efficient H.265 pro+ compression technology. It supports Encoding ability up to 1080p @ 15 fps. HDMI output at up to 4K (3840 × 2160) resolution. It supports 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP). Up to 24 network cameras can be connected. VCA detection alarm (line crossing detection & intrusion detection) is supported. Connectable to H.265+/H.265/H.264+/H.264 IP cameras, Up to 4 MP lite resolution for 1 SATA interface. Support access by EZVIZ Cloud P2P, Support DDNS... HIKVISION DS-7104HGHI-F1 4 Channel Turbo HD 720P DVRHIKVISION 4-CH Turbo HD 720P DVR,Connectable to HD-TVI & analog cameras,HDMI & VGA outputs at up to 1920×1080P resolution,1 SATA interface for HDD withup to 6TB capacity.. Hikvision IDS-7216HQHI-M2-S 16Channel 2HDD 5MP Supported DVRThe Hikvision IDS-7216HQHI-M2-S 16ch Acusense DVR is a turbo HD 5.0 DVR with Deep Learning-based analysis and facial identification. It also supports H.265 Pro+/H.265 Pro/H.265 video compression, a maximum distance of 800 m for 1080p and 1200 m for 720p HDTVI signal transmission, IP cameras (up to 6 PM), and a maximum capacity of 10 TB per HDD, This DVR is dual-stream supported and stream type Video, Video & Audio. The Hikvision iDS-7216HQHI-M2/S 16ch Acusense DVR is an Ethernet interface.Features:16 channels and 2 HDDs 1U AcuSense DVRFalse alarm reduction through human and vehicle target classification based on deep learningEfficient H.265 pro+ compression technologyEncoding ability up to 1080p @ 15 fps5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)Up to 8 network cameras can be connected.. HIKVISION DS-7216HQHI-K1 16 Channel Turbo HD 1080P DVRHIKVISION 16-CH Turbo HD 1080P DVR, Connectable to HD-TVI & analog cameras, It supports Efficient H.265 pro+ compression technology. It supports Encoding ability up to 1080p @ 15 fps. It supports 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP). Up to 24 network cameras can be connected. VCA detection alarm (line crossing detection & intrusion detection) is supported. Connectable to H.265+/H.265/H.264+/H.264 IP cameras, Up to 4 MP lite resolution for 1 SATA interface. Support access by EZVIZ Cloud P2P, Support DDNS. FEATURES:16 channels and 1 HDD 1U DVREfficient H.265 pro+ compression technologyEncoding ability up to 1080p @ 15 fps5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)Up to 24 network cameras can be connected..
