HIKVISION DS-7216HQHI-K1 16 Channel Turbo HD 1080P DVR

HIKVISION DS-7216HQHI-K1 16 Channel Turbo HD 1080P DVR
HIKVISION DS-7216HQHI-K1 16 Channel Turbo HD 1080P DVR
  • Stock: In Stock
  • Model: DS-7216HQHI-K1
Hikvision Hikvision
Based on 0 reviews. - Write a review
19,550৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
DVR / NVR / XVR Specification
Auxiliary Interface SATA : 1 SATA interface
Capacity : Up to 10 TB capacity for each disk
Alarm In/Out : N/A
USB Interface : Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Serial Interface : RS-485 (half-duplex)
Network Remote Connections : 128
Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface : 1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
Recording Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution : When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
Frame Rate : Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),

Video Bit Rate : 32 Kbps to 6 Mbps
Dual Stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bit Rate : 64 Kbps
Video and Audio IP Video Input : 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input : 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
CVBS Input : PAL/NTSC
Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback : 16-ch
HDTVI Input : 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,

VGA/HDMI Output : VGA: 1-ch, ,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, ,4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz,
CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
General
Power Power Supply : 12 VDC
Physical Specification
Others Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : 10% to 90%
Weights (Without HDD) : ≤ 2 kg (4.4 lb)
Consumption (Without HDD) : ≤ 25 W
Dimensions 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Warranty Information
Warranty 01 year warranty
Description

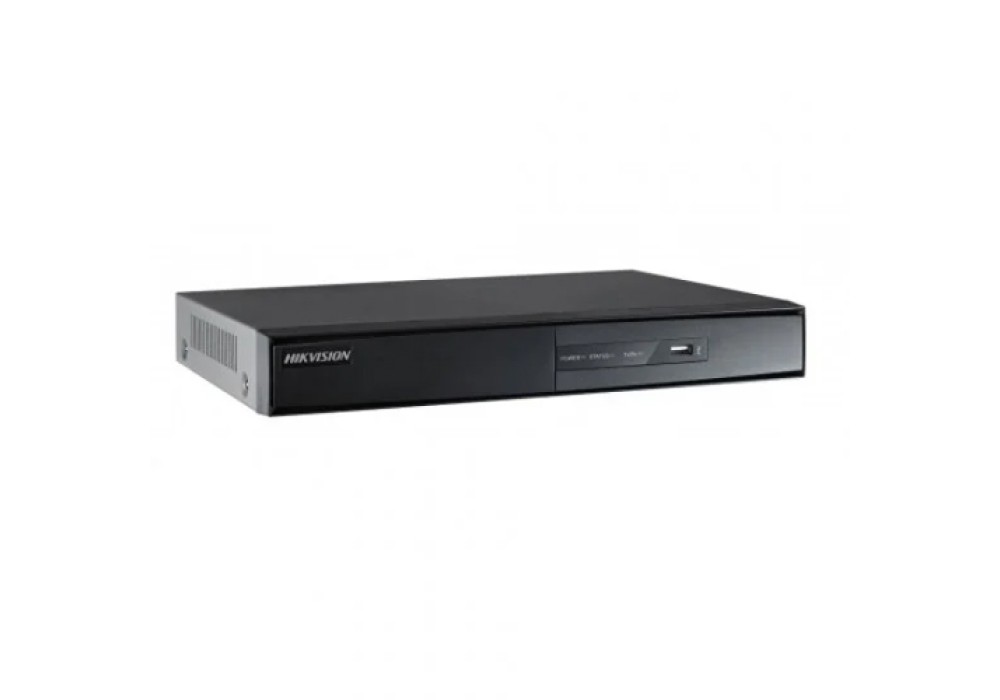

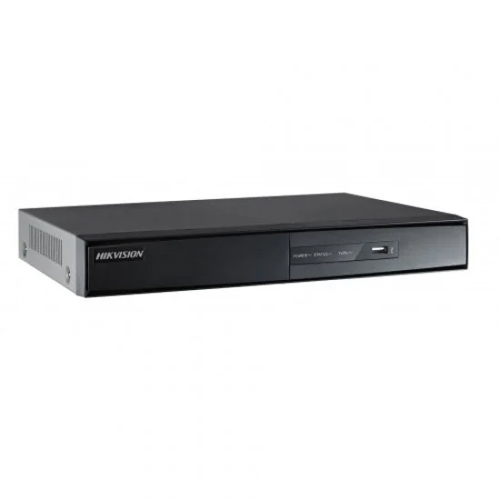

HIKVISION DS-7216HQHI-K1 16 Channel Turbo HD 1080P DVR

HIKVISION 16-CH Turbo HD 1080P DVR, Connectable to HD-TVI & analog cameras, It supports Efficient H.265 pro+ compression technology. It supports Encoding ability up to 1080p @ 15 fps. It supports 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP). Up to 24 network cameras can be connected. VCA detection alarm (line crossing detection & intrusion detection) is supported. Connectable to H.265+/H.265/H.264+/H.264 IP cameras, Up to 4 MP lite resolution for 1 SATA interface. Support access by EZVIZ Cloud P2P, Support DDNS.


FEATURES:

  • 16 channels and 1 HDD 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 24 network cameras can be connected
