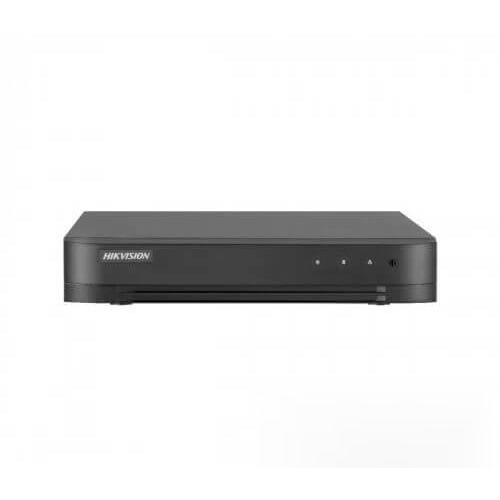

Hikvision DS-7216HGHI-K1 16 Channel Turbo HD DVR

DVR / NVR / XVR Specification
Auxiliary Interface Capacity : Up to 10 TB capacity for each disk
Serial Interface : N/A
USB Interface : 2 × USB 2.0
Alarm In/Out : N/A
SATA : 1 SATA interface
Network Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connections : 128
Network Interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
Recording Encoding Resolution:
Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard-definition stream access: CIF/QVGA@25fps (P)/30fps (N)

Video Bit Rate : 32 Kbps to 4 Mbps
Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Dual Stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bit Rate : 64 Kbps
Video and Audio Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Synchronous Playback : 16-ch
IP Video Input : 2-ch (up to 18-ch);Up to 5 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
CVBS Input : PAL/NTSC
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Analog Video Input : 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection AHD Input : 1080p25, 1080p30, 720p25, 720p30
CVBS Output : N/A
HDMI/VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI/VGA simultaneous output
General
Power Power Supply : 12 VDC
Dimensions Dimensions(W × D × H) : 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Others Consumption(Without HDD) : ≤ 10 W
Working Humidity : 10% to 90%
Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)

Hikvision DS-7216HGHI-K1 16 Channel Turbo HD DVR

HIKVISION 16 Channel Turbo HD 720P DVR is connectable to HD-TVI & analog cameras. It supports HDMI output and VGA output. It can serve up to 1920×1080P resolution. It features 1 SATA interface. It supports access by EZVIZ Cloud P2P. It supports Efficient H.265 pro+ compression technology. It has encoding ability up to 1080p lite @ 15 fps. Supports HDTVI/AHD/CVI/CVBS/IP video input, Up to 5-ch 960p IP camera input for DS-7204HGHI-F1, up to 10/18-ch 1080p IP camera input for DS-7208/7216HGHI-F1, Max. 1200 m for 720p HDTVI signal.
