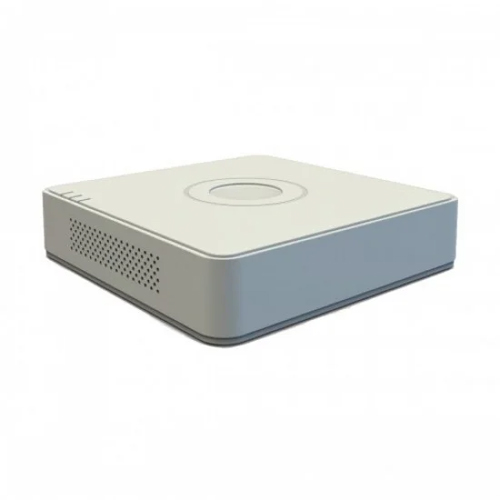

Hikvision DS-7108HQHI-K1 08 Channel HD 1080p Turbo HD DVR

Hikvision DS-7108HQHI-K1 08 Channel HD 1080p Turbo HD DVR
Hikvision DS-7108HQHI-K1 08 Channel HD 1080p Turbo HD DVR
  • Stock: In Stock
  • Model: DS-7108HQHI-K1
Hikvision Hikvision
Based on 0 reviews. - Write a review
10,050৳
EMI starts at 3,524৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Specification
DVR / NVR / XVR Specification
Auxiliary Interface SATA : 1 SATA interface
Capacity : Up to 6 TB capacity for each disk
Alarm In/Out : N/A
USB Interface : Real panel: 2 × USB 2.0
Network Total Bandwidth : 96 Mbps
Remote Connection : 64
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface : 1, RJ45 10M/100M self-adaptive Ethernet interface
Recording Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution : When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate : Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate : 32 Kbps to 6 Mbps
Dual-Stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps
Video and Audio IP Video Input : 2-ch (up to 10-ch)
Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Incoming Bandwidth : 48 Mbps

Analog Video Input : 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input : 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1.

AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input : Support
VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable

Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback : 8-ch
General
Power Power Supply : 12 VDC, 1.33 A
Physical Specification
Others Consumption : ≤ 12 W
Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : 10% to 90%
Dimensions 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
≤ 1 kg (2.2 lb)
Warranty Information
Warranty 01 year warranty
Description

Hikvision DS-7108HQHI-K1 08 Channel HD 1080p Turbo HD DVR

Hikvision DS-7108HQHI-K1 08 Channel Support H.265 Pro+/H.265 Pro/H.265 video compression. Support HDTVI/AHD/CVI/CVBS/IP video input. Max 6/12/24 IP cameras input (up to 6 MP). Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission. Up to 6TB capacity per HDD.


FEATURES:

  • 8 channels and 1 HDD mini size DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 12 network cameras can be connected
