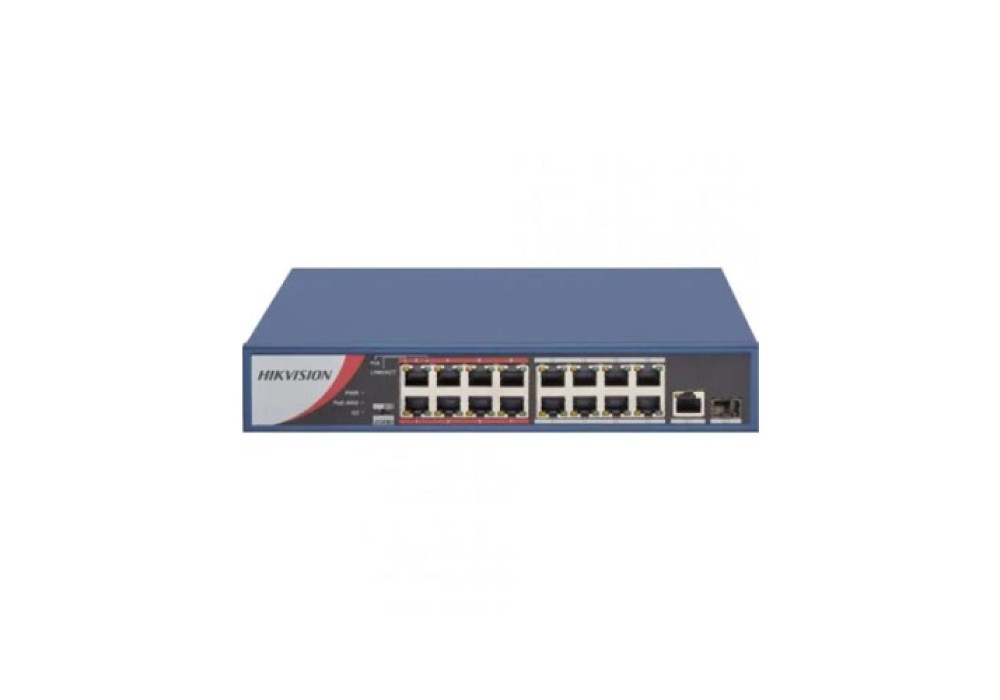

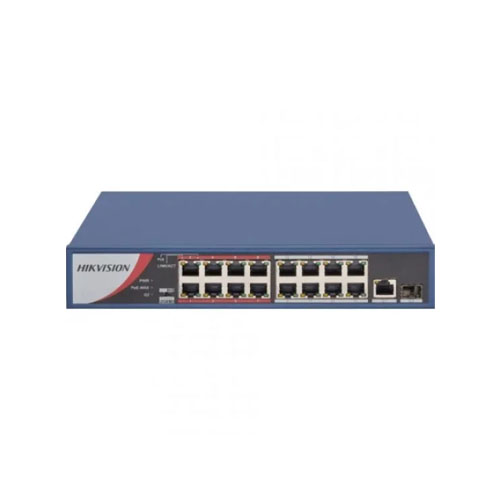

Hikvision DS-3E0318P-E-M 16 Port Fast Ethernet Unmanaged POE Switch
Hikvision DS-3E0318P-E-M 16 Port Fast Ethernet Unmanaged POE Switch

Hikvision DS-3E0318P-E-M 16 Port Fast Ethernet Unmanaged POE Switch

IN STOCK

Model: DS-3E0318P-E-M

Key Features
  • Port Type:RJ45 port, full duplex, MDI/MDI-X adaptive
  • Standard:IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Internal Cache:2.75 Mbits
  • PoE Port:Ports 1 to 16

View More Info...

(1 reviews)

17,500৳

EMI starts at 574৳/month. View all 28 banks EMI plans >

Chat Through

1
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Specification
General
Work Environment Operating Temperature : -10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity : 5% to 95% (no condensation)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity : 5% to 95% (no condensation)
Power Power Consumption In Idle : 20 W
Max. Power Consumption : 150 W
TECHNICAL SPECIFICATION
Network Port Number : 16 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode : Standard mode (default); Extend mode
Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode : Store-and-forward switching
Ports For Long-Distance Transmission : Ports 9 to 16
MAC Address Table : 4 K
Internal Cache : 2.75 Mbits
Switching Capacity : 7.2 Gbps
Packet Forwarding Rate : 5.356 Mpps
High Priority Ports : Ports 1 to 8
Power PoE Power Supply :
PoE Standard : IEEE 802.3af, IEEE 802.3at
PoE Power Pin :
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port : Ports 1 to 16
Max. Port Power : 30 W
PoE Power Budget : 130 W
Dialing Function :
Long Range : Ports 9 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.
Ports & Slots
Power Supply 100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Physical Specification
Others Approval : EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety : UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry : CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Dimensions 266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
Warranty Information
Manufacturing Warranty 1 Year
Description

Hikvision DS-3E0318P-E-M 16 Port Fast Ethernet Unmanaged POE Switch

Hikvision DS-3E0318P-E-M has a distance between IPCs of up to 300 meters, allowing for long-range PoE transmission. It has a 4910-5970 MHz frequency range, 16 dBi antenna, 200 Mbit/s data rate, gigabit ethernet port, exceptional reliability and quality, 100 to 240 VAC, 50/60 Hx power supply, 266 x 44.5 x 220.8 mm dimension, 1.8Kg net weight.

The Hikvision DS-3E0318P-E-M 16 Port Fast Ethernet Unmanaged POE Switch is a reliable and feature-rich networking solution designed to enhance connectivity and power delivery for various applications. With its robust performance, intelligent power management, and compact design, this switch proves to be a valuable asset for both small to medium-sized businesses and home networks.Boasting 16 10/100 Mbps PoE ports, this switch provides seamless connectivity for a multitude of devices, from computers and IP cameras to access points and VoIP phones. The inclusion of a gigabit RJ45 port and a gigabit fiber optical port further enhances versatility, allowing for high-speed connections and future scalability.One standout feature is the Power over Ethernet (PoE) functionality, compliant with IEEE 802.3af and IEEE 802.3at standards. This means that not only can the switch transmit data to connected devices, but it can also supply power through the Ethernet cables, eliminating the need for separate power cables and adapters. With a maximum port power of 30W and a total PoE power budget of 130W, the switch can efficiently power a variety of PoE-enabled devices while optimizing energy consumption.The switch's operating modes offer flexibility to suit different network requirements. The standard mode and extend mode provide options for different scenarios, with extend mode allowing for long-distance data transmission of up to 300 meters on specific ports.Built to deliver a smooth and seamless data transfer experience, the Hikvision DS-3E0318P-E-M switch utilizes a store-and-forward switching mechanism. This mechanism, combined with a MAC address table of 4K entries, ensures efficient packet forwarding and helps manage network traffic effectively.The switch's durable and compact design is complemented by its comprehensive safety and regulatory certifications, including EMC FCC, CE-EMC, RCM, IC, UL, CB, CE-LVD, and various chemistry certifications. These certifications attest to the switch's adherence to safety and environmental standards.Installation and setup are hassle-free, thanks to the switch's unmanaged nature, which means no complex configuration is required. The switch can operate in a wide range of temperatures and humidities, ensuring reliable performance even in challenging environments.With dimensions of 266 mm × 44.5 mm × 220.8 mm, the switch's compact form factor is suitable for various installation scenarios. The included 1-year manufacturing warranty provides added peace of mind, offering support and assistance should any issues arise.

Features:

  • Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
  • Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
  • 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
  • 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
  • Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

some additional features of the Hikvision DS-3E0318P-E-M 16 Port Fast Ethernet Unmanaged POE Switch include:

  • Plug-and-Play Installation: The switch offers a hassle-free setup with plug-and-play functionality, allowing you to quickly integrate it into your network without the need for complex configuration.
  • Compact and Space-Saving: With its compact dimensions of 266 mm × 44.5 mm × 220.8 mm, the switch's space-saving design is ideal for environments where space is at a premium.
  • Energy-Efficient Design: The switch incorporates energy-efficient technology that optimizes power consumption based on the actual device requirements, contributing to reduced energy costs and environmental impact.
  • Quiet Operation: The switch's fanless design ensures silent operation, making it suitable for noise-sensitive environments such as offices, classrooms, and small businesses.
  • Sturdy Metal Enclosure: Built with a durable metal enclosure, the switch is designed to withstand the rigors of daily use and offers enhanced protection against potential physical damage.
  • LED Indicators: Clear and intuitive LED indicators provide real-time status information, including power, connectivity, and PoE activity, helping you monitor the switch's performance at a glance.
  • Flexible Mounting Options: The switch supports multiple mounting options, including desktop placement and rack-mounting, allowing you to adapt its installation to your specific needs.
  • VLAN Support: The switch may support Virtual LAN (VLAN) configuration, enabling you to segment your network into separate virtual networks for enhanced security and traffic management.
  • Quality of Service (QoS): QoS features prioritize certain types of network traffic, ensuring that critical applications and services receive the necessary bandwidth for optimal performance.
  • Reliable Performance: With a switching capacity of 7.2 Gbps and a packet forwarding rate of 5.356 Mpps, the switch provides reliable and efficient data transfer, enhancing overall network performance.
  • Smart Power Management: The switch's smart power management features help prevent power overloads and protect connected devices, ensuring a stable and secure power supply.
  • Multi-Mode Fiber Support: The inclusion of a gigabit fiber optical port provides flexibility for network expansion and longer-distance connections using multi-mode fiber optics.
  • Wide Temperature Range: Designed to operate in a wide temperature range of -10°C to 55°C, the switch is suitable for both indoor and outdoor deployments, even in challenging environmental conditions.
  • Enhanced Network Efficiency: The switch's full-duplex and MDI/MDI-X adaptive port type, along with its store-and-forward switching, contribute to efficient data handling and reduced network congestion.
