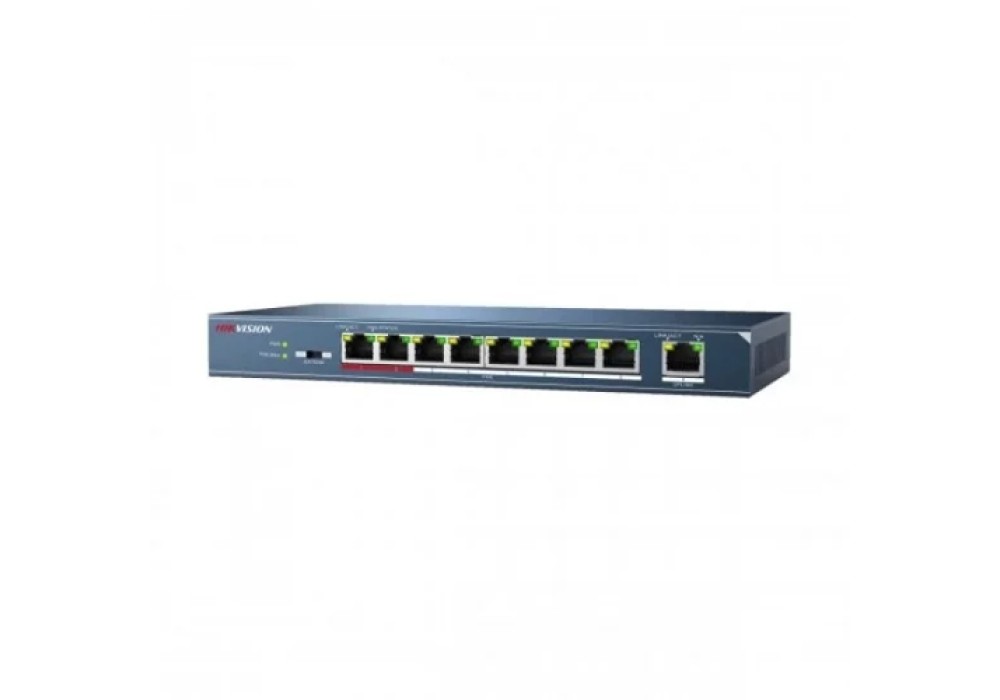

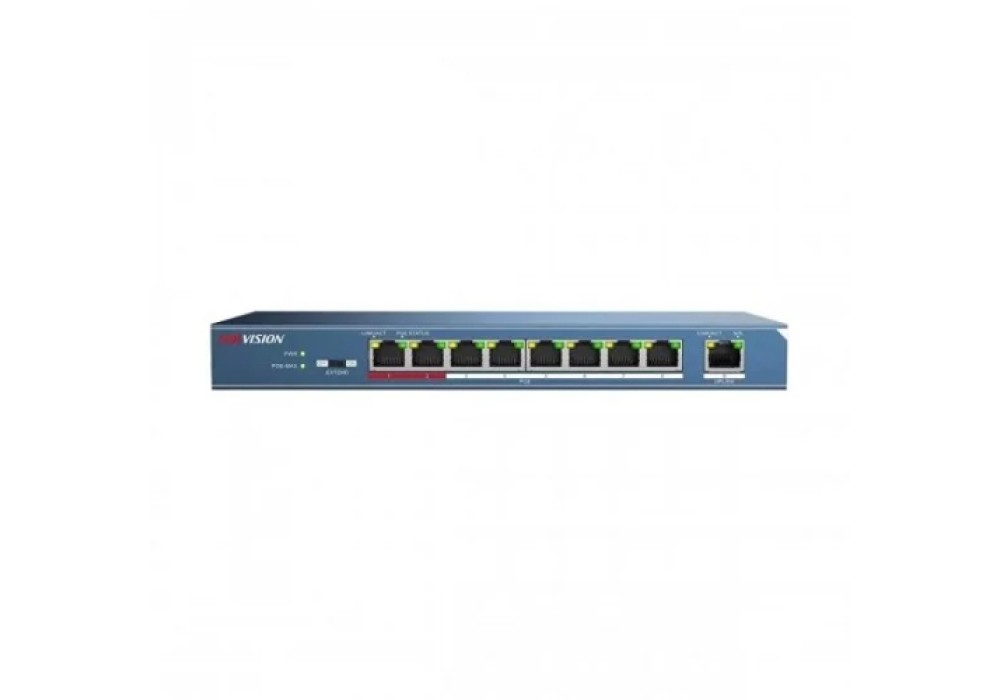

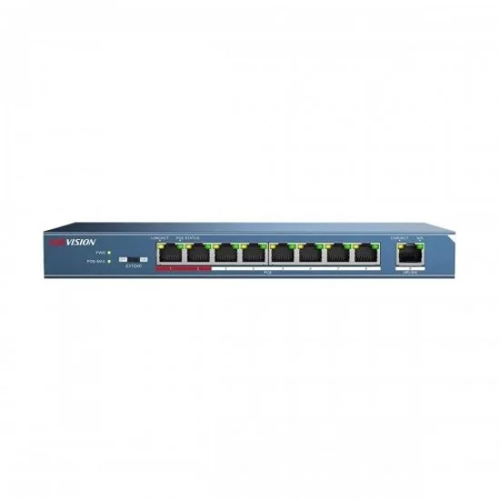

Hikvision DS-3E0109P-E-M 8 Port Unmanaged PoE Switch

TECHNICAL SPECIFICATION
Network Ports : 8 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode : Standard mode (default); Extend mode
Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode : Store-and-forward switching
High Priority Ports : Ports 1 to 2
MAC Address Table : 2 K
Switching Capacity : 1.8 Gbps
Packet Forwarding Rate : 1.339 Mpps
Internal Cache : 1 Mbits
Ports For Long-Distance Transmission : Ports 1 to 8
Power PoE Standard : IEEE 802.3af, IEEE 802.3at
PoE Power Pin : End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port : Ports 1 to 8
Max. Port Power : 30 W
PoE Power Budget : 60 W
General
Work Environment Operating Temperature : –10 °C to 55 °C (14 °F to 131 °F)
Operating Humidity : 5% to 95% (no condensation)
Storage Temperature : –40 °C to 85 °C (–40 °F to 185 °F)
Storage Humidity : 5% to 95% (no condensation)
Power Power Consumption In Idle : 5 W
Max. Power Consumption : 65 W
Dimensions 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
Others Approval :
EMC : FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety : UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry : CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Warranty Information
Manufacturing Warranty 1 Year

Hikvision DS-3E0109P-E-M 8 Port Unmanaged PoE Switch

DS-3E0109P-E-M Is A Layer 2 100M PoE Switch. Based On Wirespeed Forwarding, The Switch Supports Ethernet PoE Power Supply And Extend Mode. The Power Supply Distance Reaches As Long As 250 M. It Also Supports Prior And Stable Transmission Of The Important Surveillance Area Video When Connected To The High Priority Ports. Hikvision 8 POE Ports Intelligently Control The Power Supply When The Power Supply Crosses The Reaching Capacity. 300 Meter Long-Range Between IPCs And Switch 48 V DC, 4 / 8 Core Adaptive Power Supply, 8 X 100 Mbps PoE Port, 1 X 100 Mbps Ethernet Port, RJ45 Port, Full-Duplex, MDI / MDI-X Adaptive, 30 W Port Power Per Port, PoE Power Budget, 60 W Switching Capacity, 1.339 Mbps Packet Forwarding Rate.



Quick Compare

Product Details
Product Hikvision DS-3E0109P-E-M 8 Port Unmanaged PoE Switch
Image Hikvision DS-3E0109P-E-M 8 Port Unmanaged PoE Switch
Price 7,700৳
Model DS-3E0109P-E-M
Brand Hikvision
Availability In Stock
Rating
Based on 0 reviews.
Summary Hikvision DS-3E0109P-E-M 8 Port Unmanaged PoE SwitchDS-3E0109P-E-M Is A Layer 2 100M PoE Switch. Based On Wirespeed Forwarding, The Switch Supports Ethernet PoE Power Supply And Extend Mode. The Power Supply Distance Reaches As Long As 250 M. It Also Supports Prior And Stable Transmission Of The Important Surveillance Area Video When Connected To The High Priority Ports. Hikvision 8 POE Ports Intelligently Control The Power Supply When The Power Supply Crosses The Reaching Capacity. 300 Meter Long-Range Between IPCs And Switch 48 V DC, 4 / 8 Core Adaptive Power Supply, 8 X 100 Mbps PoE Port, 1 X 100 Mbps Ethernet Port, RJ45 Port, Full-Duplex, MDI / MDI-X Adaptive, 30 W Port Power Per Port, PoE Power Budget, 60 W Switching Capacity, 1.339 Mbps Packet Forwarding Rate...
