- Stock: In Stock
- Model: DS-2CE76D0T-ITMF
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- 2.8 mm Fixed Focal lens
- 2 MP, 1920x1080 Resolution
- EXIR 2.0 Smart IR, up to 30 m IR distance
| General | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
| Power | 12 VDC ± 25% |
| Power Consumption | Max.3 W |
| Weight | Approx. 290 g (0.64 lb.) |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Minimum Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Lens | |
| Mount Type | M12 |
| Type | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Video | |
| Day/Night | ICR |
| Frame Rate | TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
| Resolution | 1920 (H) × 1080 (V) |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Physical Specification | |
| Dimensions | Φ 82.6 mm × 90 mm × 79.37 mm (Φ 3.25" × 3.54" × 3.12") |
| Warranty Information | |
| Warranty | 01 year warranty |

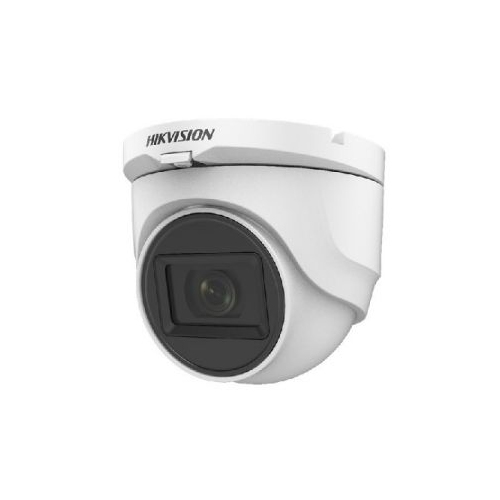

HikVision DS-2CE76D0T-ITMF 2MP Fixed Turret Camera
The HikVision DS-2CE76D0T-ITMF 2MP Fixed Turret Camera is a high-performance surveillance solution designed to provide clear, detailed video footage for both residential and commercial security needs. Featuring a 2MP CMOS image sensor, this camera captures high-definition video with a resolution of 1920 (H) × 1080 (V) pixels, ensuring sharp and vibrant images for monitoring. This camera operates effectively in a range of challenging environments, with an impressive operating temperature range from -40°C to 60°C (-40°F to 140°F) and can withstand up to 90% humidity (non-condensing), making it perfect for both indoor and outdoor use. Its robust design ensures reliable performance in varying weather conditions. With its advanced IR (Infrared) capability, the DS-2CE76D0T-ITMF delivers exceptional visibility even in low-light conditions. The minimum illumination is as low as 0.01 Lux (with AGC ON) and can go completely dark with its built-in IR LEDs, offering 24/7 surveillance without compromising image quality. The camera offers flexible video output options with switchable modes including TVI, AHD, CVI, and CVBS, which provides seamless compatibility with different DVR systems. The DS-2CE76D0T-ITMF supports 1080P resolution at 30fps or 25fps, delivering smooth and high-quality video. Equipped with a fixed M12 lens available in three different focal lengths—2.8 mm, 3.6 mm, and 6 mm—this camera provides flexibility in monitoring wide areas or focusing on specific points of interest. The built-in ICR (Infrared Cut Filter) ensures high-quality day and night operation, automatically adjusting based on lighting conditions. Weighing just 290 g (0.64 lbs), the HikVision DS-2CE76D0T-ITMF is lightweight and easy to install. It also comes with a one-year warranty, offering peace of mind for your security investment.
HikVision DS-2CE76D0T-ITMF 2MP Fixed Turret Camera Features
- High-Resolution 2MP CMOS Sensor: Captures clear and detailed video with a resolution of 1920 (H) × 1080 (V) pixels, providing high-quality footage for surveillance.
- IR Night Vision: Equipped with infrared LEDs, the camera can capture clear images even in complete darkness, with a minimum illumination of 0.01 Lux and 0 Lux with IR.
- Wide Operating Temperature Range: Operates efficiently in extreme temperatures, from -40°C to 60°C (-40°F to 140°F), making it suitable for various environments and weather conditions.
- Multiple Lens Options: Available with fixed M12 lenses in 2.8 mm, 3.6 mm, and 6 mm options, allowing for flexible coverage and focal length choices to suit different monitoring needs.
- Switchable Video Output: Supports TVI, AHD, CVI, and CVBS video output formats, ensuring compatibility with a wide range of DVR systems.
- ICR (Infrared Cut Filter): Provides high-quality day and night performance by automatically adjusting the image quality based on lighting conditions.
- Efficient Power Consumption: The camera operates on 12 VDC power with a maximum consumption of just 3W, ensuring energy efficiency without compromising performance.
- Compact and Lightweight: Weighing just 290 g (0.64 lbs) and with compact dimensions (Φ 82.6 mm × 90 mm × 79.37 mm), it is easy to install and position in a variety of locations.
- Durable and Weather-Resistant: Built to withstand harsh environments with a humidity tolerance of up to 90% (non-condensing), making it suitable for both indoor and outdoor use.
- 1-Year Warranty: Comes with a 1-year warranty, offering peace of mind with reliable product support and coverage.
These features make the HikVision DS-2CE76D0T-ITMF a versatile and reliable surveillance camera for both residential and commercial security.
Quick Compare
Comparison of DS-2CE76D0T-ITMF vs Dahua HAC-T1A51 vs DH-IPC-H5AE vs DH-H3AE Hero which are most simmiler.
| Product | HikVision DS-2CE76D0T-ITMF 2MP Fixed Turret Camera | Dahua HAC-T1A51P 5MP HDCVI IR Dome Camera | Dahua DH-IPC-H5AE 5MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera | Dahua DH-H3AE Hero A1 (3.6mm) (3.0MP) Wi-Fi Dome IP Camera |
| Image | |
|
|
|
| Price | 2,350৳ | |
|
|
| Model | DS-2CE76D0T-ITMF | Dahua HAC-T1A51 | DH-IPC-H5AE | DH-H3AE Hero |
| Brand | Hikvision | Dahua | Dahua | Dahua |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | HikVision DS-2CE76D0T-ITMF 2MP Fixed Turret CameraThe HikVision DS-2CE76D0T-ITMF 2MP Fixed Turret Camera is a high-performance surveillance solution designed to provide clear, detailed video footage for both residential and commercial security needs. Featuring a 2MP CMOS image sensor, this camera captures high-definition video with a resolution of 1920 (H) × 1080 (V) pixels, ensuring sharp and vibrant images for monitoring. This camera operates effectively in a range of challenging environments, with an impressive operating temperature range from -40°C to 60°C (-40°F to 140°F) and can withstand up to 90% humidity (non-condensing), making it perfect for both indoor and outdoor use. Its robust design ensures reliable performance in varying weather conditions. With its advanced IR (Infrared) capability, the DS-2CE76D0T-ITMF delivers exceptional visibility even in low-light conditions. The minimum illumination is as low as 0.01 Lux (with AGC ON) and can go completely dark with its built-in IR LEDs, offering 24/7 surveillance without compromising image quality. The camera offers flexible video output options with switchable modes including TVI, AHD, CVI, and CVBS, which provides seamless compatibility with different DVR systems. The DS-2CE76D0T-ITMF supports 1080P resolution at 30fps or 25fps, delivering smooth and high-quality video. Equipped with a fixed M12 lens available in three different focal lengths—2.8 mm, 3.6 mm, and 6 mm—this camera provides flexibility in monitoring wide areas or focusing on specific points of interest. The built-in ICR (Infrared Cut Filter) ensures high-quality day and night operation, automatically adjusting based on lighting conditions. Weighing just 290 g (0.64 lbs), the HikVision DS-2CE76D0T-ITMF is lightweight and easy to install. It also comes with a one-year warranty, offering peace of mind for your security investment.HikVision DS-2CE76D0T-ITMF 2MP Fixed Turret Camera FeaturesHigh-Resolution 2MP CMOS Sensor: Captures clear and detailed video with a resolution of 1920 (H) × 1080 (V) pixels, providing high-quality footage for surveillance.IR Night Vision: Equipped with infrared LEDs, the camera can capture clear images even in complete darkness, with a minimum illumination of 0.01 Lux and 0 Lux with IR.Wide Operating Temperature Range: Operates efficiently in extreme temperatures, from -40°C to 60°C (-40°F to 140°F), making it suitable for various environments and weather conditions.Multiple Lens Options: Available with fixed M12 lenses in 2.8 mm, 3.6 mm, and 6 mm options, allowing for flexible coverage and focal length choices to suit different monitoring needs.Switchable Video Output: Supports TVI, AHD, CVI, and CVBS video output formats, ensuring compatibility with a wide range of DVR systems.ICR (Infrared Cut Filter): Provides high-quality day and night performance by automatically adjusting the image quality based on lighting conditions.Efficient Power Consumption: The camera operates on 12 VDC power with a maximum consumption of just 3W, ensuring energy efficiency without compromising performance.Compact and Lightweight: Weighing just 290 g (0.64 lbs) and with compact dimensions (Φ 82.6 mm × 90 mm × 79.37 mm), it is easy to install and position in a variety of locations.Durable and Weather-Resistant: Built to withstand harsh environments with a humidity tolerance of up to 90% (non-condensing), making it suitable for both indoor and outdoor use.1-Year Warranty: Comes with a 1-year warranty, offering peace of mind with reliable product support and coverage.These features make the HikVision DS-2CE76D0T-ITMF a versatile and reliable surveillance camera for both residential and commercial security... | Dahua HAC-T1A51P 5MP HDCVI IR Dome CameraDahua HAC-T1A51P 5MP HDCVI IR Eyeball Camera features with Max. 20fps@5MP, HD and SD output switchable, 3.6mm fixed lens (2.8mm, 6mm optional), Max. IR length 20m, Smart IR and DC12V. Here the camera is features with 1/2.7" CMOS Image Sensor, 2592(H)×1944(V), 5MP Effective Pixels, Progressive Scanning System, PAL: 1/25~1/100000s and NTSC: 1/30~1/100000s Electronic Shutter Speed, 0.04Lux/F2.0, 30IRE, 0Lux IR on Minimum Illumination, More than 65dB S/N Ratio, Up to 20m (66feet) IR Distance and Auto / Manual IR On/Off Control system. In this IR camera, It's lens is Fixed lens / Fixed iris lens with Board-in Mount Type, 3.6mm (2.8mm, 6mm Optional) Focal Length, F1.85 Max Aperture, H: 77.5° (93°, 49°) and v: 56.5° (68°, 37°) viewing angle with 11400mm (800mm, 2500mm) and 55.12'' (31.50″, 98.43'') Close Focus Distance. It is also comes with Pan: 0° ~ 360°, Tilt: 0° ~ 78° and Rotation: 0° ~ 360°. This IR bulllet camera has 5MP (2592×1944) Resolution, 20fps@5MP, 25/30fps@4MP, 25/30@1080P Frame Rate, 1-channel BNC high definition video output / CVBS video output (Can switch) Video Output, Auto (ICR) / Manual Day/Night, Multi-language OSD Menu, BLC / HLC / DWDR Mode, DWDR, AGC Control, 2D Noise Reduction, Auto / Manual White Balance and Smart IR... | Dahua DH-IPC-H5AE 5MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera – Smart Coverage, Crystal-Clear ClarityThe Dahua DH-IPC-H5AE is a feature-packed 5MP Wi-Fi Pan & Tilt Network Camera designed to deliver exceptional indoor security coverage. Its high-resolution 5-megapixel sensor captures every detail in vivid clarity, while the pan and tilt functionality allows you to remotely adjust the camera’s view for full-area monitoring. Perfect for homes, offices, and small businesses, this camera combines smart detection, easy installation, and reliable wireless performance. Equipped with infrared night vision, it ensures round-the-clock visibility even in complete darkness. The motion detection feature sends instant alerts to your smartphone, so you’re always aware of any movement. With two-way audio, you can listen and speak directly through the Dahua app, making it ideal for communication and monitoring. The Wi-Fi connectivity enables quick setup without messy wiring, and it supports microSD card storage for local video recording.Whether used for child monitoring, home protection, or office surveillance, the DH-IPC-H5AE offers a powerful mix of high-resolution imaging, flexible control, and dependable performance.Features5MP high-resolution Wi-Fi IP cameraPan & Tilt control for 360° coverageInfrared night vision up to 10 metersMotion detection with instant alertsTwo-way audio (microphone & speaker)Supports microSD card local storageEasy wireless installation via Dahua mobile appFixed-focal lens for clear indoor monitoringWhy Choose Dahua DH-IPC-H5AE?The Dahua DH-IPC-H5AE is perfect for users who want complete room coverage and sharp video quality in one device. Its 5MP resolution, Pan & Tilt control, and smart motion detection make it one of the best indoor Wi-Fi cameras for security and convenience. With two-way communication, night vision, and mobile app integration, it ensures peace of mind with real-time access from anywhere.FAQQ1: Can I control the camera’s angle remotely?A1: Yes, you can pan and tilt the camera via the Dahua mobile app.Q2: Does it support cloud storage?A2: Yes, it supports both microSD and optional Dahua cloud storage.Q3: Is night vision clear in total darkness?A3: Yes, infrared night vision provides up to 10 meters of visibility.Q4: Does it require an NVR to record video?A4: No, it can record directly to a microSD card without needing an NVR... | Dahua DH-H3AE Hero A1 (3.6mm) (3.0MP) Wi-Fi Dome IP Camera – Smart Security Made SimpleThe Dahua DH-H3AE Hero A1 Wi-Fi Dome IP Camera offers reliable surveillance performance with smart connectivity and crystal-clear imaging. Featuring a 3.0MP high-definition sensor and a 3.6mm fixed lens, this camera delivers sharp, detailed visuals day and night. Designed for both home and business environments, it provides Wi-Fi connectivity, allowing easy installation and remote monitoring without complex wiring. With intelligent motion detection, real-time alerts, and infrared night vision, you can monitor your property 24/7 with confidence. The camera supports Full HD 2304×1296 resolution, ensuring every detail is visible even in low-light conditions. Built with a durable dome structure, it offers protection against dust and minor impacts, ideal for indoor or sheltered outdoor placement. Through the Dahua mobile app, you can view live footage, review recordings, and control camera settings directly from your smartphone. Combining simplicity, smart features, and quality imaging, the Hero A1 is an excellent choice for modern security setups.Features3.0MP high-resolution Wi-Fi IP dome camera3.6mm fixed lens with 2304×1296 Full HD clarityInfrared night vision for 24/7 surveillanceMotion detection and instant mobile alertsSupports two-way audio communicationWireless connectivity with easy setup via Dahua appCompatible with microSD card storageDurable dome design suitable for home or office useWhy Choose Dahua DH-H3AE Hero A1?The Dahua Hero A1 offers a blend of advanced security and user convenience. Its 3MP Full HD resolution, smart motion detection, and Wi-Fi functionality ensure efficient monitoring without complicated installation. Whether for home, office, or small business, it provides dependable surveillance, easy remote access, and clear night vision at an affordable price.FAQQ1: Does it support two-way audio?A1: Yes, the camera supports built-in microphone and speaker for two-way communication.Q2: Can I use it without an NVR?A2: Yes, you can use a microSD card for local recording and manage it via the Dahua app.Q3: Is the camera weatherproof?A3: It is designed for indoor and semi-outdoor use under sheltered conditions.Q4: How far does the night vision reach?A4: The infrared night vision covers up to approximately 10 meters... |
