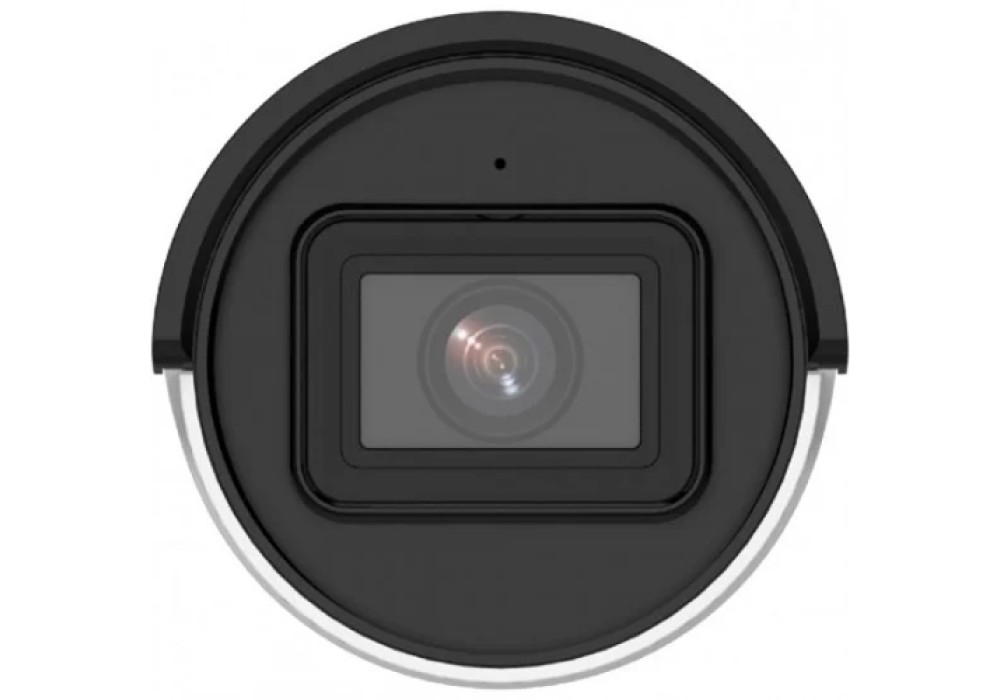

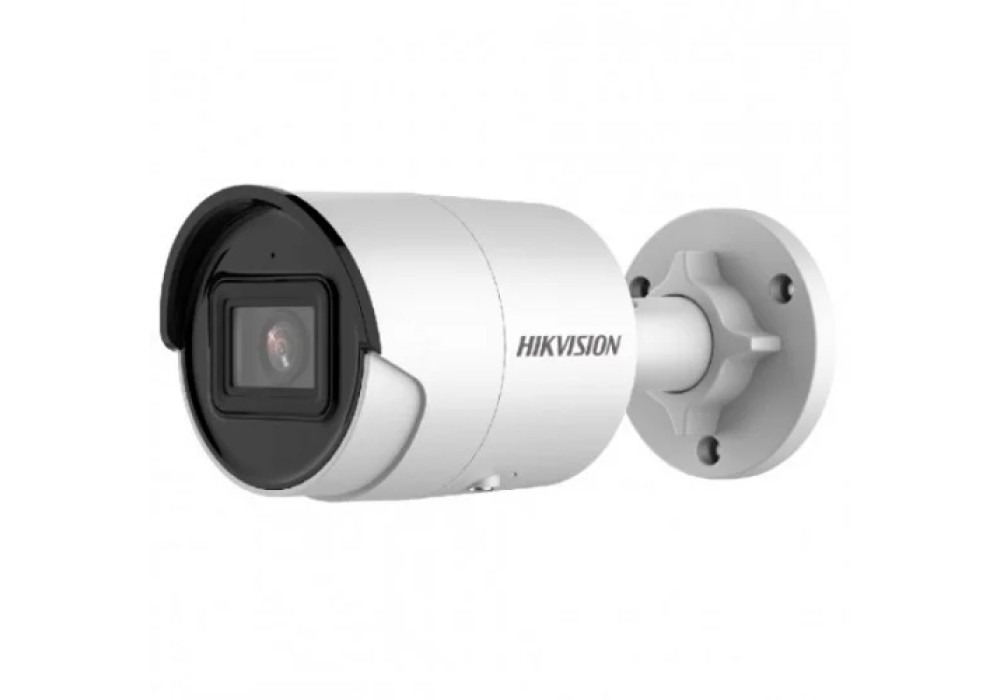

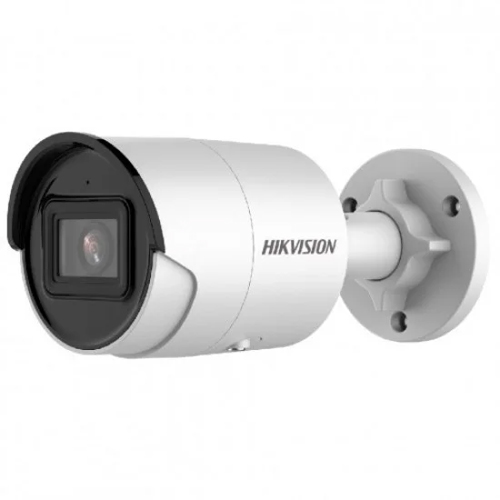

Hikvision DS-2CD2043G2-IU 4MP IP Bullet Camera

General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.5A, Max. 6W
PoE (802.3af, 37V To 57V), 0.2A To 0.1A, Max. 7.5W
Camera
Image Sensor 1/3" Progressive Scan CMOS
IR Distance Up to 25 m IR range
Lens Focal Length :
2.8 Mm @ F1.6: Horizontal FOV: 103°, Vertical FOV: 58°, Diagonal FOV: 123°
4 Mm @F1.6: Horizontal FOV: 83°, Vertical FOV: 45°, Diagonal FOV: 99°
6 Mm @F1.6: Horizontal FOV: 51°, Vertical FOV: 29°, Diagonal FOV: 58° 8 Mm @F1.6: Horizontal FOV: 39°, Vertical FOV: 22°, Diagonal FOV: 45°

Lens Type : Fixed Focal Lens, 2.8, 4, And 6 Mm Optional
Minimum Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux With IR On
Others Shutter Time: 1/3 S To 1/100,000 S
Day & Night: IR Cut Filter
Angle Adjustment: Pan: 0° To 360°, Tilt: 0° To 90°, Rotate: 0° To 360°
Video Video Bit Rate: 32 Kbps To 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 And H.265 Encoding
Region Of Interest (ROI): 1 Fixed Region For Mainstream And Sub-Stream
Physical Specification
Dimension Camera: Φ 70 × 155.03 Mm (Φ 2.8" × 6.1")
Package: 216 × 121 × 118 Mm (8.5" × 4.8" × 4.7")
INTERFACE Communication Interface: 1 RJ45 10M / 100M Ethernet Interface
On-Board Storage: Built-In Micro SD/SDHC/SDXC Slot, Up To 128 GB
Reset Button: Yes
Weight Camera: Approx. 420 G (0.9 Lb.)
With Package: Approx. 700 G (1.5 Lb.)
Warranty Information
Warranty 1 years

Hikvision DS-2CD2043G2-IU 4MP IP Bullet Camera

Hikvision DS-2CD2043G2-IU is a 4MP IP Bullet Camera. It has High-quality imaging with 4 MP resolution. The resolution support is 2688 × 1520 pixels. It has clear imaging against strong backlight due to 120 dB WDR technology. It also has efficient H.265+ compression technology alongside a Built-in microphone for real-time audio security. It is IP67 Water and dust resistant. It can focus on human and vehicle targets classification based on deep learning. The Image Sensor is 1/3″ Progressive Scan CMOS with a minimum Illumination of Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on. The Shutter Time is 1/3 s to 1/100,000 s. The Angle Adjustment readings are Pan: 0° to 360°, tilt: 0° to 90°, and rotate: 0° to 360°. With ICR Cut Day & Night; supported max. resolution is 2688 × 1520. It has a focal Length & FOV reading of this camera is: for 2.8 mm, The FOV is 103°; the vertical FOV is 55°, diagonal FOV is 122°. For 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°; for 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°. It supports an M12 Lens Mount. Finally, The Supported Internet Protocols are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PP PoE.

FEATURES:

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • -U: Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)
  • Focus on human and vehicle targets classification based on deep learning
