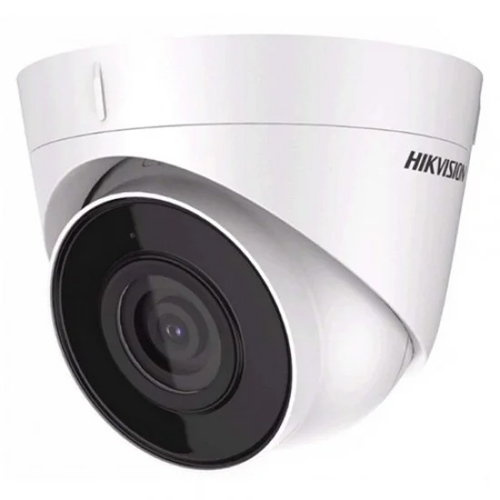

Model: DS-2CD1323G0-IUF
View More Info...
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
| Power | Power Consumption and Current : 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W Power Supply : 12 VDC ± 25% PoE: 802.3af, Class 3 Power Interface : Ø5.5 mm coaxial power plug |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Lens | Focal Length & FOV 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° Lens Mount : M12 Focus : Fixed Aperture : F2.0 |
| Minimum Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
| Video | Max. Resolution : 1920 × 1080 Main Stream : 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream : 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Video Compression : Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Video Bit Rate : 32 Kbps to 8 Mbps H.264 Type : Baseline Profile/Main Profile/High Profile H.265 Type : Main Profile H.264+ : Main Stream supports H.265+ : Main Stream supports Region of Interest (ROI) : 1 fixed region for main stream |
| Others | Shutter Speed : 1/3 s to 1/100, 000 s Slow Shutter : Yes Wide Dynamic Range : Digital WDR Day & Night : IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Material | Metal & Plastic |
| Dimension | Camera Dimension : Ø110 mm × 85.3 mm (Ø4.3" × 3.4") Package Dimension : 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Others | General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Firmware Version : V5.5.120 |
| Weight | Camera Weight : Approx. 320 g (0.7 lb.) With Package Weight : Approx. 556 g (1.2 lb.) |
| Warranty | 01-year warranty |
