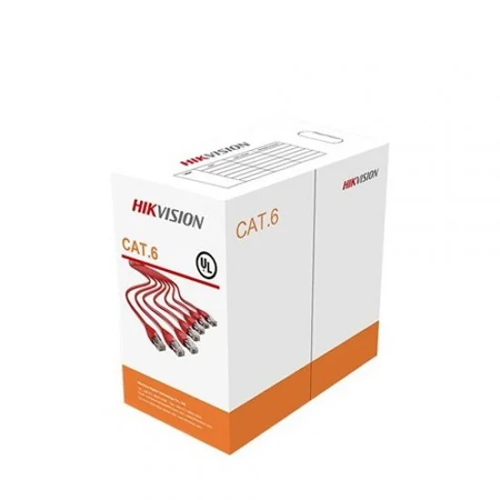

Hikvision DS-1LN6U-SC0 305 M CAT6 UTP Network Cable

IN STOCK

Model: DS-1LN6U-SC0

21,000৳

Chat Through

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।

Hikvision DS-1LN6U-SC0 305 M CAT6 UTP Network Cable

Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801

Compliant with RoHS 2.0

Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project

Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature

Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE)

Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance

Conductor	Material : Solid-Bare Copper (99.95%) Diameter : 0.55 ± 0.005 mm, 23 AWG
Electrical Characteristics(20℃)	1.0-250.0 MHz Impedance: 100 ± 15 Ω @ ≤ 100 MHz 100 ± 25 Ω @100-250 MHz 1.0-250.0 Mhz Delay Skew : ≤ 45 ns/100 m DC Resistance : ≤ 9.38 Ω/100 m DC Conductor Resistance Unbalance : ≤ 5.0% Package Dimension : 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75" × 15.75" × 9.45") 12.3 ± 0.5kg Cable Length : (305 ± 1.5) m Ambient Temperature : -20°C to 75°C (-4°F to 167°F) Operating Voltage : 60 V
General	Rip-Cord :Yes Category : Cat.6 Sheath Printing : HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS Reference Standard : ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0 Fire Resistance : No Separator : Yes
Insulation	Material : HDPE Diameter : 0.98 ± 0.05 mm
Sheath	Thickness : 0.50 ± 0.10 mm Material : PVC Color : Orange Diameter : 6.00 ± 0.30 mm
Surface Printing	Before Aging : Tensile strength ≥ 13.5 Mpa Elongation ≥ 150% Aging Period : 100°C × 24h × 10d After Aging : Tensile strength ≥ 12.5 Mpa Elongation ≥ 125% Cold Bend : -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
