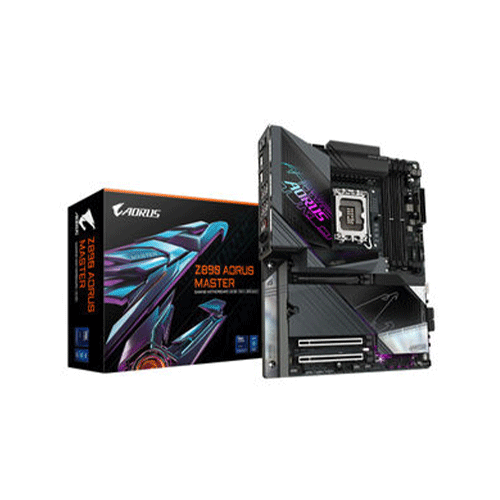

Gigabyte Z890 Aorus Master WIFI7 DDR5 Motherboard

Gigabyte Z890 Aorus Master WIFI7 DDR5 Motherboard
-1 %
Gigabyte Z890 Aorus Master WIFI7 DDR5 Motherboard
  • Stock: In Stock
  • Model: Z890 AORUS MASTER
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
80,000৳
81,000৳
EMI starts at 28,053৳/month. View all 25 banks EMI plans >
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare
Key Features
  • Chipset Intel® Z890 Express Chipset
  • Operating System: Support for Windows 11 64-bit
  • ATX Form Factor; 30.5 cm x 24.4 cm
  • LGA1851 socket: Support for Intel® Core™ Ultra Processors
View more info...
Specification
Key Features
Expansion Slots CPU:
1 x PCI Express x 16 slot, supporting PCIe 5.0 and running at x 16 (PCIE x 16)
* The PCIE x 16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIE x 16 slot.
* The PCIE x 16 slot shares bandwidth with the M2D_CPU connector. The PCIE x 16 slot operates at up to x 8 mode when a device is installed in the M2D_CPU connector.
Chipset:
1 x PCI Express x 16 slot, supporting PCIe 4.0 and running at x 4 (PCIE x 4)
1 x PCI Express x 16 slot, supporting PCIe 3.0 and running at x 1 (PCIE x 1)
Storage CPU:
1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x 4 / x 2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x 4 / x 2 SSD support) (M2B_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x 4 / x 2 SSD support) (M2D_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x 4 / x 2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x 4 / x 2 SSD support)
(M2M_SB)
4 x SATA 6 Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Basic Information
Supported CPU LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset Intel® Z890 Express Chipset
Generel information
Back Panel Connectors 1 x Q-Flash Plus button
1 x Clear CMOS button
2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports)
6 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0 / 1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
I/O Controller iTE® I/O Controller Chip
Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 x 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
(Note) Actual support may vary by CPU
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Networking & Connectivity
Wireless Intel® Wi-Fi 7 BE200NGW
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Memory Specifications
Supported Memory Type Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C) / 9066(O.C) / 8933(O.C)
/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) /
7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /
6400 / 6200 / 6000 / 5800 / 5600 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system
memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1R x 8 / 2R x 8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1R x 8 / 2R x 8 / 1R x 16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed),
and number of DRAM modules, please refer to "Memory Support List" for more information.)
Motherboard
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports
USB (s) CPU:
2 x Intel® Thunderbolt™ 4 (USB4® USB Type-C®) ports on the back panel
*Support up to 40 Gbps with Thunderbolt devices
*Support up to 20 Gbps with USB4 devices
*Support up to 10 Gbps with USB 3.2 devices
Chipset:
6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 2 x 2 Hub:
1 x USB Type-C® port with USB 3.2 Gen 2 x 2 support, available through the internal USB header
Chipset+2 USB 3.2 Gen 1 Hubs:
8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+2 USB 2.0 Hubs:
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Audio Realtek® ALC1220 CODEC
* The front panel line out jack supports DSD audio.
ESS ES9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2 / 4 / 5.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics Support:
2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120 x 2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840 x 2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
1 x front HDMI port, supporting a maximum resolution of 1920 x 1080@30 Hz
* Support for HDMI 1.4 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Software
Operating System Support for Windows 11 64-bit
Physical Specification
Form Factor ATX Form Factor; 30.5 cm x 24.4 cm
Description

Gigabyte Z890 Aorus Master WIFI7 DDR5 Motherboard

The Gigabyte Z890 Aorus Master WIFI7 DDR5 Motherboard is a premium solution designed for users seeking top-tier performance, compatibility, and cutting-edge features for their Intel Core Ultra processors. Built with the Intel LGA 1851 socket and Z890 chipset, this motherboard supports the latest Intel processors, making it an ideal choice for high-end gaming, content creation, and demanding computational tasks. The motherboard offers support for DDR5 memory, with speeds up to an impressive 9500 MT/s when overclocked, ensuring blazing-fast data transfers and seamless multitasking. With four DIMM slots, it supports up to 256GB of memory, delivering exceptional bandwidth and system responsiveness. Onboard, the Z890 Aorus Master WIFI7 is equipped with PCIe 5.0 and 4.0 slots, ensuring maximum compatibility with the latest high-performance graphics cards and NVMe SSDs. It also features five M.2 connectors, with support for PCIe 5.0 and 4.0 SSDs, ensuring lightning-fast storage solutions that enhance both boot times and data transfer speeds. For connectivity, the motherboard comes with the advanced Intel Wi-Fi 7 module, delivering ultra-fast wireless speeds and Bluetooth 5.4 for seamless wireless networking and device connectivity. Additionally, this motherboard boasts Thunderbolt 4 support with USB4 USB Type-C ports, offering high-speed data transfers, video output, and compatibility with the latest peripherals. It also includes a robust 10 GbE LAN, providing ultra-reliable wired network performance for competitive gaming and fast content uploads. With its comprehensive thermal solutions, including heat sinks and heat pipes, the Z890 Aorus Master keeps temperatures under control, even under heavy workloads. It’s a high-performance motherboard, perfect for enthusiasts who demand cutting-edge technology and extreme performance.

Gigabyte Z890 Aorus Master WIFI7 DDR5 Motherboard Features

  • LGA 1851 Socket for Intel® Core™ Ultra Processors: Supports the latest Intel processors, ensuring exceptional performance for gaming, content creation, and high-demand tasks.
  • DDR5 Memory Support: Offers support for DDR5 memory speeds up to 9500 MT/s (O.C.), with four DIMM slots allowing up to 256GB of system memory.
  • PCIe 5.0 and PCIe 4.0 Support: Provides one PCIe 5.0 x16 slot for the latest GPUs and NVMe SSDs, ensuring future-proof performance and faster data processing.
  • Five M.2 Slots: Equipped with five M.2 connectors (PCIe 5.0 and PCIe 4.0) for high-speed NVMe SSDs, ensuring super-fast storage solutions.
  • Intel® Wi-Fi 7 and Bluetooth 5.4: Features next-gen Wi-Fi 7 support for ultra-fast wireless connectivity and Bluetooth 5.4 for seamless device pairing.
  • Thunderbolt™ 4 with USB4: Two Thunderbolt 4 ports with USB4 technology provide ultra-fast data transfers, display output, and enhanced device compatibility.
  • 10 GbE LAN: Comes with a Marvell® AQtion 10 GbE LAN chip for high-speed wired networking, ideal for competitive gaming and heavy data transfers.
  • Advanced Cooling Solutions: Features multiple fan and water cooling headers, with onboard temperature sensors and fan speed detection, ensuring optimal thermal performance.
  • Enhanced Audio: Realtek® ALC1220 audio codec with ESS ES9118 DAC chip and DTS
  • ® Ultra support for immersive, high-definition audio.
  • Robust I/O Options: Includes multiple USB 3.2 Gen 2 and Gen 1 ports, along with USB Type-C® support, delivering extensive connectivity for peripherals and external devices.
