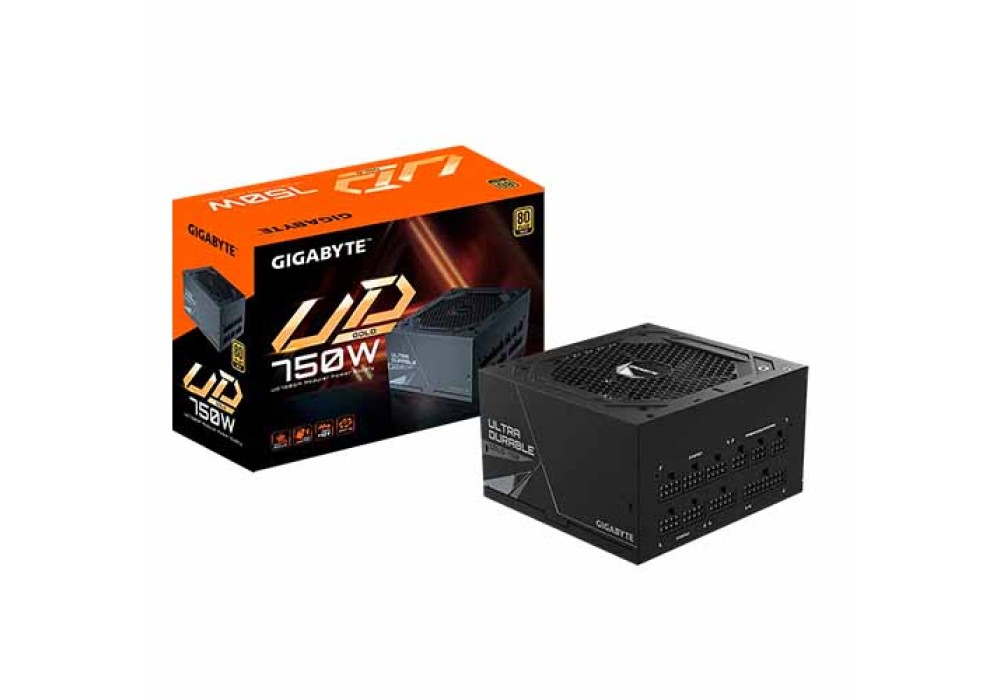

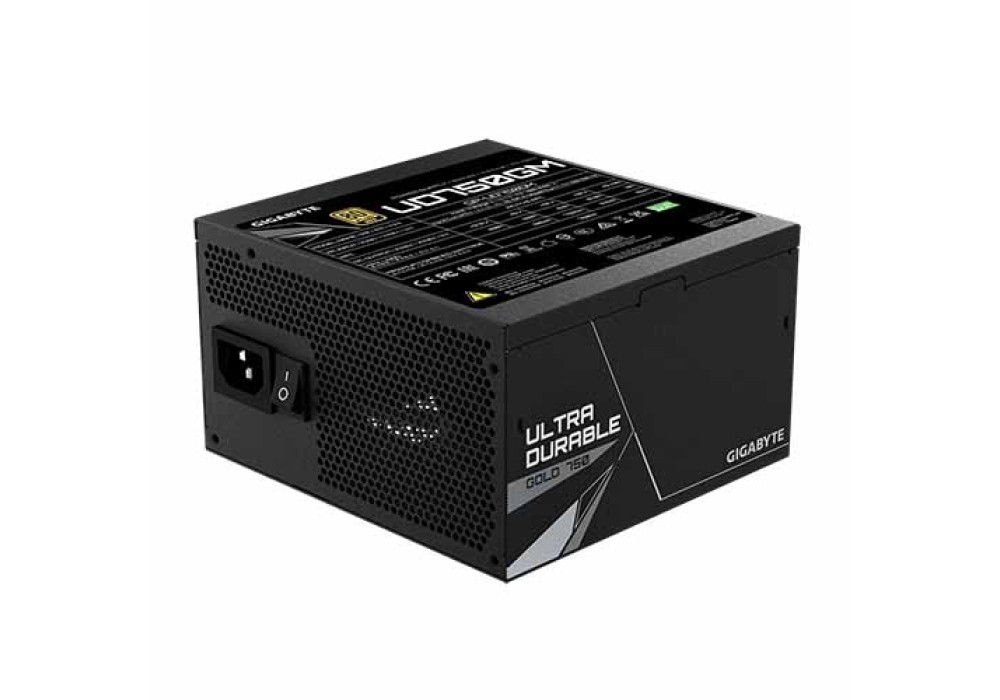

GIGABYTE GP-UD750GM 80P 750W POWER SUPPLY

Power Supply
Connector ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
Efficiency 90% at typical load
HOLD UP TIME >16ms
INPUT CURRENT 12-6A
INPUT FREQUENCY RANGE 60-50 Hz
MTBF >100,000 hours
Input Features
Voltage 100-240 Vac (full range)
Physical Specification
Dimension 150 x 140 x 86 mm

GIGABYTE GP-UD750GM 80P 750W POWER SUPPLY

Gigabyte GP-UD750GM 80P 750W Power supply introduces a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply and can be used for a long time. The main capacitors use high-quality Japanese capacitors to produce efficient performance and ensure longer reliability. Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under a low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life.
