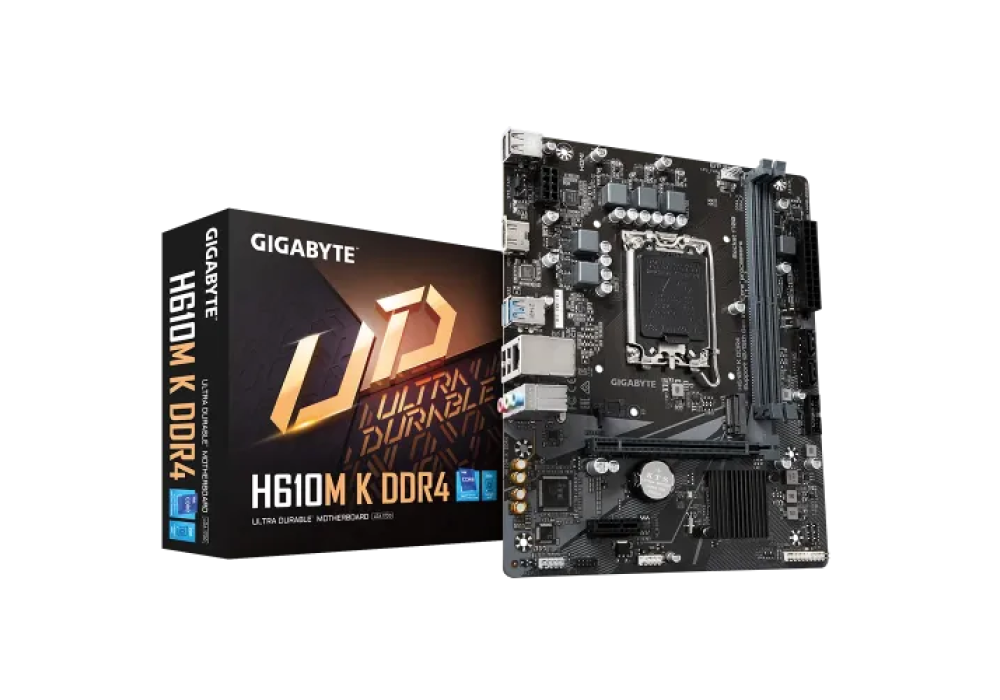

GIGABYTE H610M K DDR4 Micro ATX Motherboard

GIGABYTE H610M K DDR4 Micro ATX Motherboard
GIGABYTE H610M K DDR4 Micro ATX Motherboard
GIGABYTE H610M K DDR4 Micro ATX Motherboard
-11 %
GIGABYTE H610M K DDR4 Micro ATX Motherboard
GIGABYTE H610M K DDR4 Micro ATX Motherboard
GIGABYTE H610M K DDR4 Micro ATX Motherboard
GIGABYTE H610M K DDR4 Micro ATX Motherboard
  • Stock: In Stock
  • Model: H610M K DDR4
Gigabyte Gigabyte
Based on 0 reviews. - Write a review
10,500৳
11,770৳

Available Options

Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR4, Max 64GB 3200
    • Graphics Output: 1x HDMI 2.1
    • Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
General
Type DDR4
Basic Information
Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset Intel H610 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio

2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot:
Supporting PCIe 4.0 and running at x16
(PCIe 4.0 is only supported by 11th-generation processors.)

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory Specifications
Memory Size supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Slots 2 DIMMs
Supported Memory Type Support for 3200/3000/2933/2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

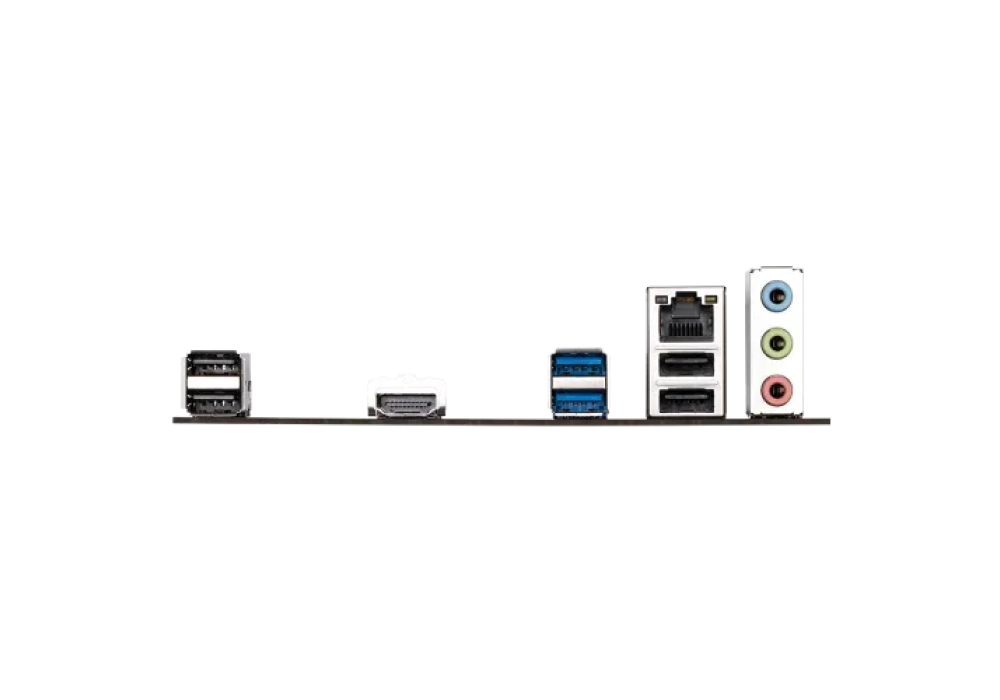

Connector & Ports
HDMI 1x HDMI
Display Port (s) 1 x DisplayPorts
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
Audio 3 x Audio jacks
Internal I/O Ports Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Others Information
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 Years
Description

GIGABYTE H610M K DDR4 Micro ATX Motherboard

GIGABYTE H610M K DDR4 Micro ATX Motherboard is a compact and versatile solution designed for users seeking a reliable and efficient platform for their computing needs. With support for 14th, 13th, and 12th Gen Intel processors via the LGA1700 socket, it accommodates a wide range of CPUs, including the latest Intel Core, Pentium, and Celeron models. This motherboard offers four DDR4 memory slots, allowing for a maximum capacity of 64GB and supporting speeds up to 3200 MHz, ensuring ample memory bandwidth for multitasking and intensive applications. The motherboard features a single HDMI 2.1 port, capable of delivering high-quality video output at resolutions up to 4K, making it ideal for high-definition displays and content. For network connectivity, it includes a Realtek GbE LAN chip, which provides network speeds of up to 1 Gbps, with backward compatibility for 100 Mbps connections. This ensures fast and reliable internet connectivity for online activities. The GIGABYTE H610M K DDR4 is a great choice for users looking to build a modern PC that balances performance and value.
