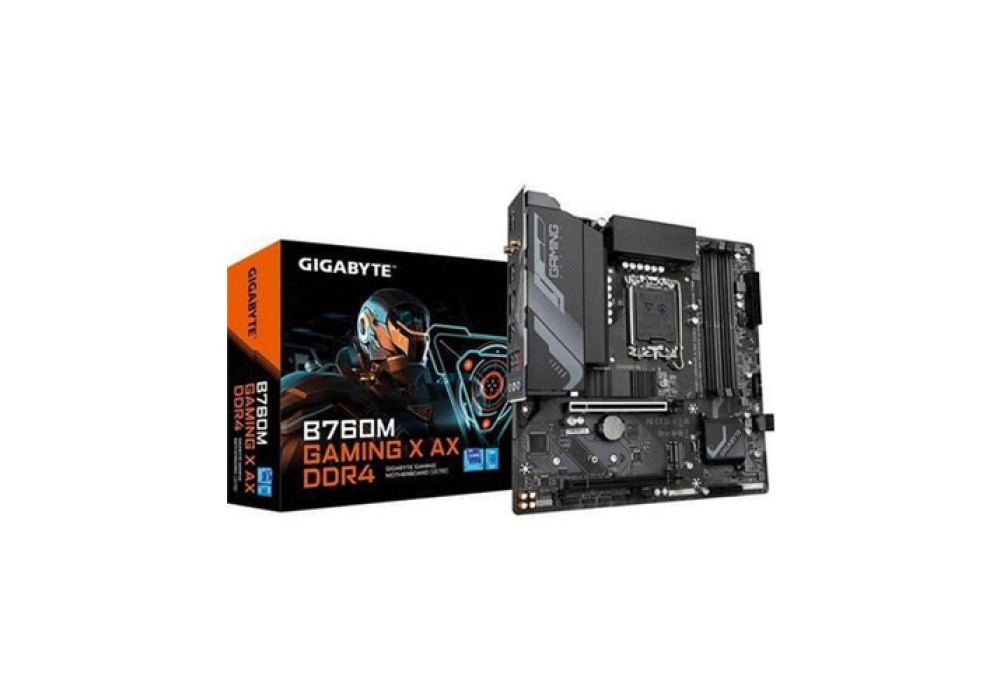

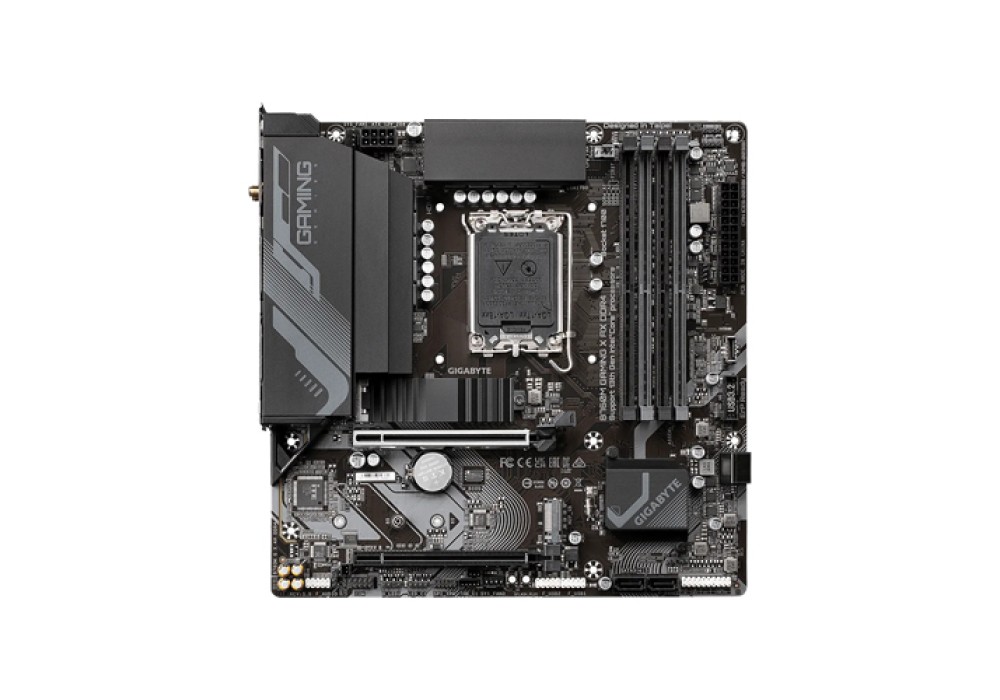

Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard

Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard
Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard
-14 %
Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard
Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard
Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard
  • Stock: In Stock
  • Model: B760M GAMING X AX DDR4
Gigabyte Gigabyte
Based on 1 reviews. - Write a review
19,800৳
23,000৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • Supported CPU: 12th/13th Gen Intel Processors (LGA1700)
    • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
    • Graphics Output: 1x HDMI, 1x DisplayPort
    • Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Key Features
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Others Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Basic Information
Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Chipset Intel® B760 Express Chipset
Input Devices
Expansion Slot 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory Specifications
Memory Type DDR4
Slots 4 x DDR DIMM
Supported Memory Type Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Max. Memory up to 128 GB (32 GB single DIMM capacity)
Motherboard
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Connector & Ports
USB (s) Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Wireless Communication module AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Graphics
Graphics 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
Software
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Description

Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard

Looking for a high-performance motherboard that perfectly balances gaming power and stability? The Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard is designed for gamers, content creators, and PC enthusiasts who demand reliability and advanced features. Engineered with the latest Intel chipset support, this motherboard ensures seamless performance for Intel 12th and 13th Gen processors while supporting high-speed DDR4 memory for smooth multitasking and faster data access.

Featuring a robust power design, premium capacitors, and advanced thermal solutions, the Gigabyte B760M GAMING X AX DDR4 motherboard keeps your system cool even during intense gaming sessions. Its Micro ATX form factor is perfect for compact builds without compromising on expansion slots, PCIe lanes, or connectivity options. Gamers will especially appreciate the integrated Wi-Fi 6 AX module for stable, low-latency online gaming, as well as multiple USB ports and high-definition audio for an immersive experience. Whether you’re building a high-end gaming rig or upgrading your PC, this motherboard ensures top-tier performance and future-proof compatibility. Check the Gigabyte B760M GAMING X AX DDR4 motherboard price in BD today and elevate your gaming and productivity setup with confidence.

Pros & Benefits of Gigabyte B760M GAMING X AX DDR4 Motherboard

  • High-Speed DDR4 Memory Support – Supports up to 5200MHz memory (OC) for smooth multitasking and faster application performance. Enjoy seamless gaming and productivity without lag, even when running heavy applications simultaneously.
  • Advanced Power Design – Premium capacitors and robust VRM ensure stable power delivery for Intel 12th & 13th Gen processors. This reliable power setup enhances system stability and longevity, preventing crashes under load.
  • Wi-Fi 6 AX Connectivity – Built-in Wi-Fi 6 AX module provides faster, low-latency wireless internet, ideal for gaming and streaming. Experience smoother online gameplay and faster downloads without needing an extra adapter.
  • Compact Micro ATX Form Factor – Perfect for smaller PC builds without compromising expansion slots or features. It fits easily into compact cases while still offering room for upgrades and essential components.
  • Enhanced Thermal Design – Smart heatsinks and thermal guards keep the motherboard cool during heavy gaming sessions. Maintains optimal temperature for consistent performance, even during extended gaming marathons.
  • Future-Proof & Versatile – Multiple PCIe slots, USB ports, and high-definition audio make it ideal for upgrades and gaming peripherals. Easily support graphics cards, NVMe SSDs, and advanced audio setups for a high-end gaming experience.

If you’re looking to build a high-performance gaming setup, the GIGABYTE B760M GAMING X DDR4 MATX Motherboard is an excellent choice, offering stability and advanced features for modern PCs. Pair it with other essentials from our Gaming Motherboard for PC Build category to ensure maximum performance. Don’t forget to check out our gaming chair collection for comfort during long gaming sessions.

Shop Gigabyte B760M GAMING X AX DDR4 Motherboard from Onix BD

Boost your gaming and PC performance with the Gigabyte B760M GAMING X AX DDR4 Micro ATX Motherboard. Available now at Onix BD, this motherboard combines speed, stability, and advanced features for the ultimate gaming experience. Check the gigabyte b760m gaming x ax ddr4 motherboard price in bd and grab yours today to take your PC build to the next level!
