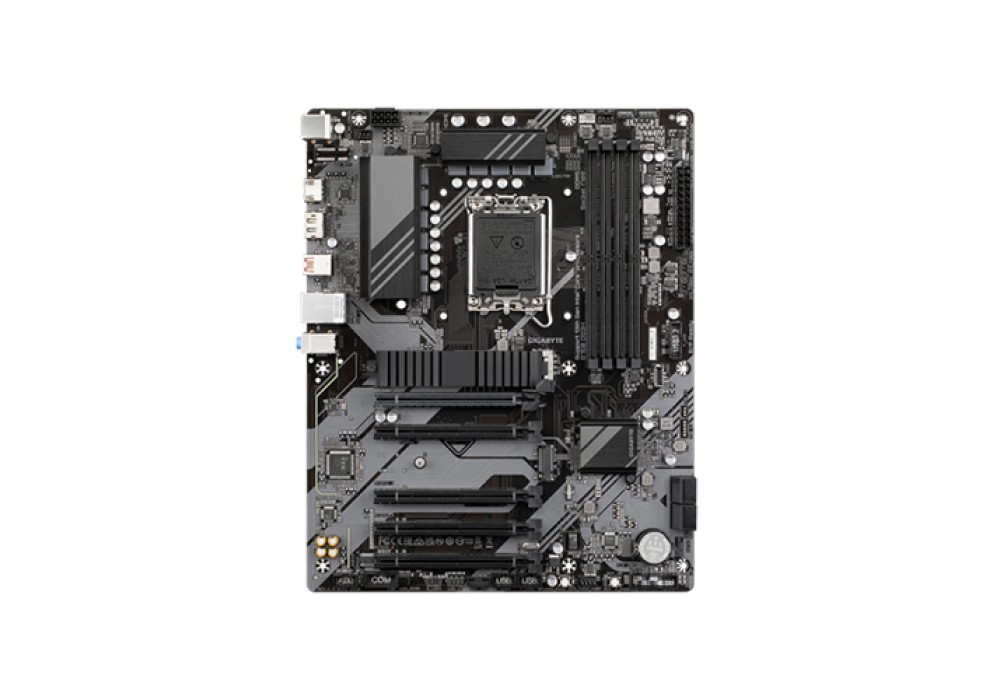

Gigabyte B760 DS3H DDR4 13th and 12th Gen ATX Motherboard

Gigabyte B760 DS3H DDR4 13th and 12th Gen ATX Motherboard
Gigabyte B760 DS3H DDR4 13th and 12th Gen ATX Motherboard
Up Coming
Gigabyte B760 DS3H DDR4 13th and 12th Gen ATX Motherboard
Gigabyte B760 DS3H DDR4 13th and 12th Gen ATX Motherboard
Gigabyte B760 DS3H DDR4 13th and 12th Gen ATX Motherboard
  • Stock: Up Coming
  • Model: B760 DS3H
Gigabyte Gigabyte
Based on 1 reviews. - Write a review
0৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features
    • Supported CPU 12th 13th Gen Intel Processors LGA1700
    • Supported RAM 4x DDR4 Max 128GB 5333 OC
    • Graphics Output 1x HDMI 1x DisplayPort
    • Features Realtek 2.5GbE LAN chip
View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Key Features
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Basic Information
Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset Intel® B760 Express Chipset
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Motherboard
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors:
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
USB Port Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
Others Information
Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Warranty Information
Warranty 3 Years
Description

Gigabyte B760 DS3H DDR4 13th and 12th Gen ATX Motherboard

The Gigabyte B760 DS3H DDR4 13th and 12th Gen ATX Motherboard is a powerful and reliable motherboard designed for gamers and professionals alike. This motherboard supports the latest 11th, 12th, and 13th generation Intel processors, including the Core i9, i7, i5, and i3 processors. The B760 DS3H DDR4 is an ATX motherboard, which means it is compatible with most PC cases and offers ample room for upgrades.

The motherboard supports up to 128GB of DDR4 memory, with four DIMM slots available for installing memory modules. This makes it ideal for users who require a high level of memory for gaming, video editing, or other resource-intensive applications. The motherboard also features an M.2 slot for fast NVMe SSDs, which offer lightning-fast read and write speeds.

The B760 DS3H DDR4 motherboard offers a range of connectivity options, including a Gigabit LAN port, two USB 2.0 ports, six USB 3.2 Gen 1 ports, and two USB 3.2 Gen 2 ports. It also features HDMI, DVI-D, and DisplayPort outputs, making it easy to connect to multiple displays. The motherboard also supports 7.1-channel high-definition audio, providing a high-quality audio experience for gaming and entertainment.

One of the key features of the B760 DS3H DDR4 motherboard is its advanced thermal design, which includes multiple heatsinks and a hybrid fan header that can automatically detect and control fan speed. This helps to keep the system running cool and quiet, even during intense gaming sessions or other demanding tasks.
