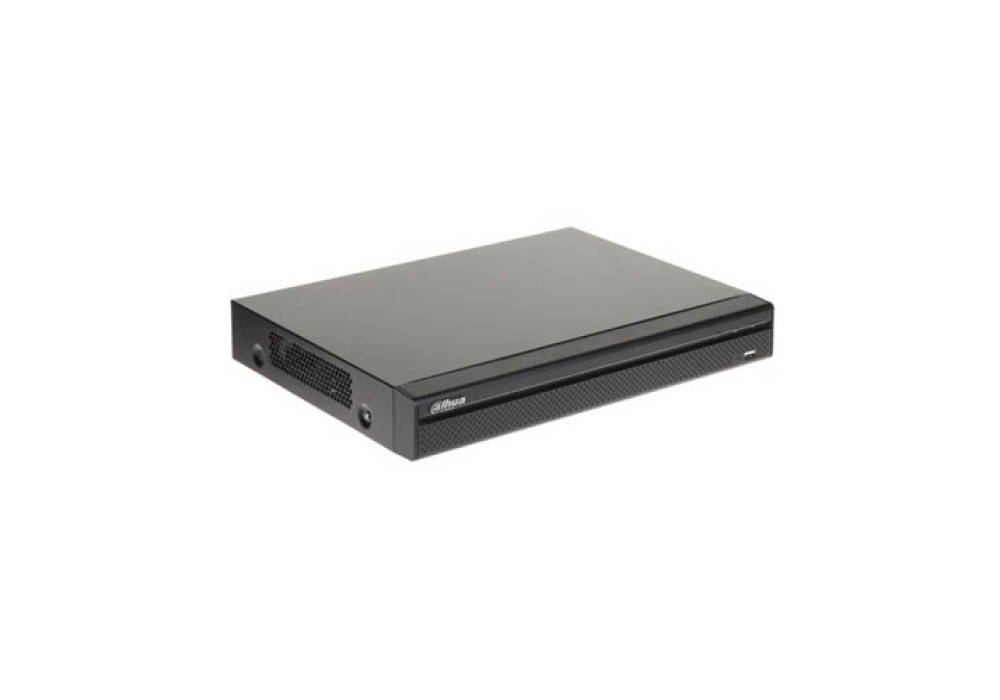

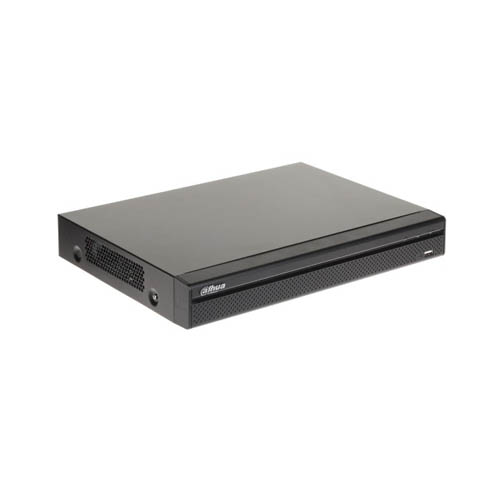

Dahua XVR1B04H 4 Channel Penta-brid XVR

Display Features
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720
Network
Interface 1 RJ-45 Port (100M)
Interoperability ONVIF 16.12, CGI Conformant
Maximum User Access 128 users
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Smart Phone iPhone, iPad, Android
Recording
Bit Rate 32Kbps ~ 6144Kbps Per Channe
Compression H.265+/H.265/H.264+/H.264
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Rate Main Stream: 4CH: the 1st channel 5M-N(1~10fps) Sub stream: CIF/QCIF (1~15fps)
Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
General
Dimensions Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)
Weight 0.54kg
Audio/Video Features
IP Camera Input 4+2 each channel up to 6MP
Two-Way Talk Reuse audio in/out, RCA

Dahua XVR1B04H 4 Channel Penta-brid XVR

Dahua, as a technology leader, is always the first ever developed the shining new technology in the security industry ,and today we present Cooper Series XVR. Designed as a full compatibility product, XVR is able to provide end user the simplicity of analog system, namely lower system cost, simple installation and use of existing cable. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs. It is ideal for a wide range of civil applications such as retail store, home protection and so on. Featuring high performance with attractive costs, the Cooper Series offers a great solution for users facing budget constraints who both require quality and performance. Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras. The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient. The XVR supports up to 5MP HDCVI camera and 6MP IP camera input. The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P. With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed. It is a typical technology being used in a variety of applications for searching or identification of individuals. This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.
