| DVR / NVR / XVR Specification | |
| Network | Network Protocol: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register Mobile Phone Access: Android; iOS Interoperability: ONVIF(profile T/S/G); CGI; SDK Browser: Chrome; IE9 or later; firefox |
| Playback and Backup | Multi-channel Playback: Up to 16 channels for playback Record Mode: Manual record; alarm recording; SMD recording; smart recording Storage: Local HDD; network Backup: USB storage device Playback Function: 1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
| System | Main Processor:Industrial-grade embedded processor OS:Embedded Linux Operation Interface:Web/operating in local GUI |
| General | |
| Power | Power Supply: 12 V DC, 4 A Power Consumption: < 10 W (HDD not included, idling) |
| Weight | Net Weight:1.51 kg (3.33 lb) Gross Weight: 2.76 kg (6.08 lb) |
| Physical Specification | |
| Dimensions | Product Dimensions:375 mm × 282.4 mm × 53 mm (14.76" × 11.12" × 2.09") (W × L × H) Package Dimensions:141 mm × 433 mm × 366 mm (5.55" × 17.05" × 14.41") (W × L × H) |

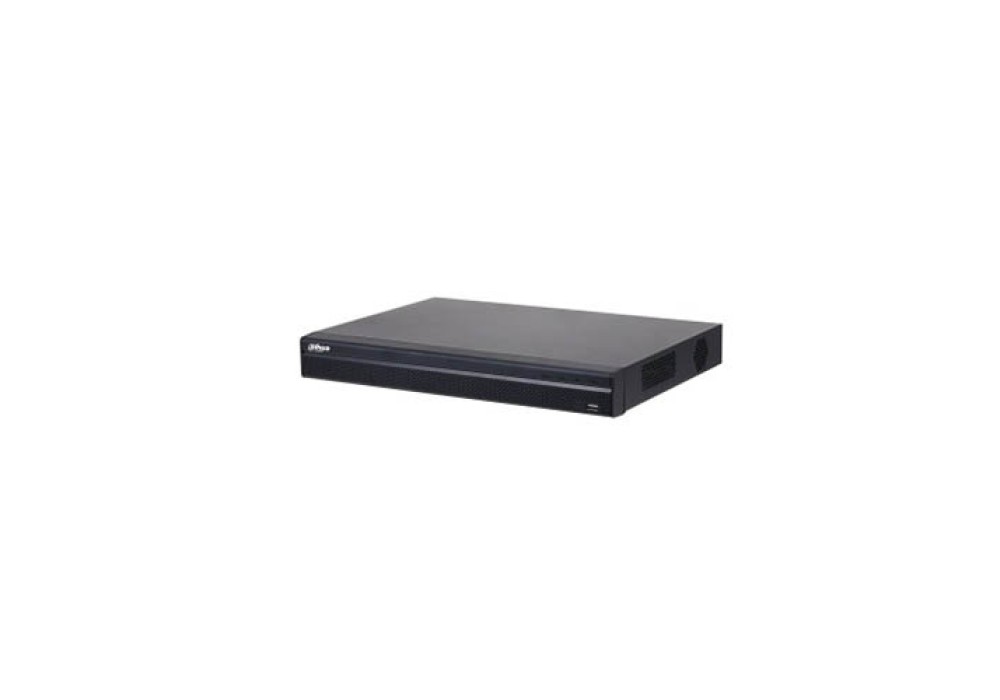

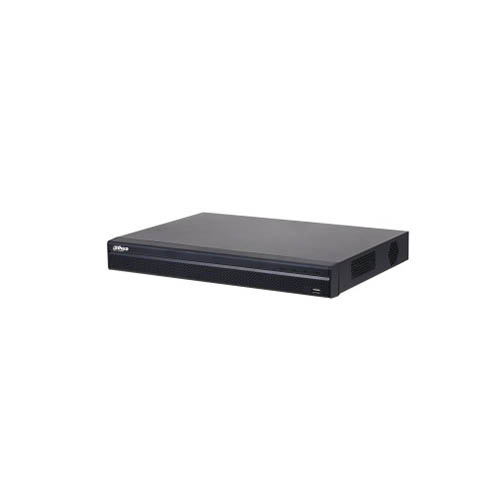

Dahua NVR4216-4KS2/L 16 Channel 1U 2HDDs Network Video Recorder
Dahua NVR4000-4KS2/L is introduced as the Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions
