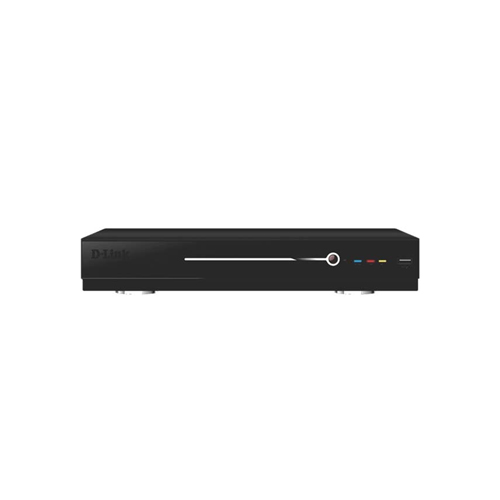

D-Link DNR-F5216-M8 16CH Network Video Recorder

DVR / NVR / XVR Specification
Advanced Features Smart Detection : Line crossing, Area Intrusion, Fast moving, Unattached Object, Object Missing
Smart Playback : Line Crossing/Area Intrusion /Motion Detection
Cloud Storage : Support
Cloud Upgrade : Support
External Interface USB Interface :
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0
Alarm In : 8CH
Alarm Out : 1CH
General Power Supply : DC12V 3.3A
Power Consumption : ≤10W (without HDD)
Working Environment : -10°C~+55°C / 10%~90%RH
Dimension (W×D×H) : 326*243*52mm
Weight : ≤2.3Kg
Certification : CE, BIS
Hard Disk SATA : 2 SATA interface
Capacity : Up to 8TB capacity for each HDD
Network Incoming Bandwidth : 160Mbps
Outgoing Bandwidth : 256Mbps
Ethernet : 1 RJ-45 10 /100/1000 Mbps self-adaptive Ethernet interface
Network Compatibility : HTTP, HTTPS, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, IP Filter, DDNS, FTP, P2P, ONVIF 2.6
Smart Phone : IOS (iPhone, iPad), Android (Phone, Pad)
Playback and Backup Playback Mode : Smart/ Normal/ Time Division/ Label/ Event/ Picture/ Log Playback
Decoding Capability : 4CH@1080P(25fps)
Backup Mode : USB Device/Network
Recording Compression : H.265+/H.265 /H.264+/H.264
Resolution : 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF /QCIF
Bit Rate : 64Kbps~10Mbps
System Management Mobile Software : D-Link Smart CCTV App
Desktop Software : DSVS (D-Link Smart Video Surveillance)
System Requirement for Web Interface : IE
Video & Audio Input IP Video Input : 16ch
Two Way Talk : 1-ch, RCA
Video & Audio Output HDMI :
1ch, resolution:4K(3840×2160)/30Hz,1920×1080/60Hz,144 0×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA :
1ch, resolution:1920×1080/60Hz,1440×900/60Hz,1280 ×1024/60Hz, 1280×720/60Hz,1024×768/60Hz
Audio Output :1-ch, RCA
Warranty Information
Warranty 01 Year

D-Link DNR-F5216-M8 16CH Network Video Recorder

    • 16CH, 2 SATA NVR
    • Support up to 8MP IPC
    • Support H.265+/H.265/H.264+/H.264
    • Support Smart Playback & Analytics
    • Support 3G/4G Wi-Fi Connectivity
    • Support Google Drive & Dropbox Cloud storage
    • Support Onvif 2.6
    • Support 1CH Audio
