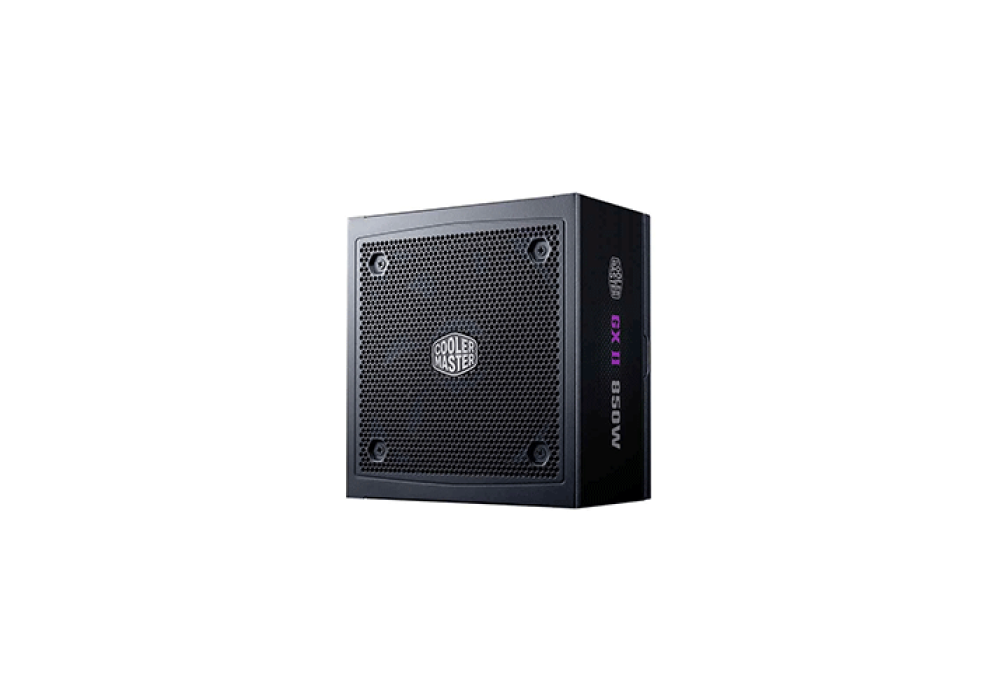

- Cooler Master GX II Gold 850W Fully Modular 80 Plus Gold Certified Power Supply
- Stock: In Stock
- Model: Cooler Master GX II Gold 850W
- SKU: MPX-8503-AFAG-2BEU
- Maximum Power - 850 Watt
- Type - ATX 12V Ver. 3.0
- PSU Category - Full Modular
- Fan Speed - 2500 RPM
| Key Features | |
| Fan Speed | 2500 RPM |
| Input Current | 10-5A |
| MTBF | >100,000 Hours |
| Efficiency | 90% Efficiency |
| Fan Size | 120mm |
| General | |
| Color | Black |
| Type | ATX 12V Ver. 3.0 |
| Weight | 2.614 kg |
| Power Supply | |
| INPUT FREQUENCY RANGE | 50-60Hz |
| Generel information | |
| Dimensions (H x W x D) | 160 x 150 x 86 mm |
| Additional Info | |
| PSU | Full Modular |
| Other Features | |
| Specialty | ATX 3.0 support & a durable 12VHPWR cable 80 Plus Gold certified efficiency, Silent fan performance with a zero-RPM mode. Separated thermal technologies. Fully modular cabling. Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.A zero-RPM default mode automatically turns the fan on when your PC reaches a specific temperature. |
| Connector | |
| PCI-E | 4 |
| SATA | 6 |
| Temperature | |
| Operating Temperature | 0 - 40 Degree C |
| Others Information | |
| Others | Zero RPM Fan Mode: Yes Fan Bearing: HDB Efficiency Rating: 80 Plus Gold PFC (Power Factor Correction): Active PFC Power Good Signal: 100 - 150 ms Hold Up Time: >16ms at 80% Load Protection: OPP, OVP, OTP, OCP, SCP, UVP Over Voltage Protection (OVP): Yes Over Power Protection (OPP): Yes Over Current Protection (OCP): Yes Over Temperature Protection (OTP): Yes Short Circuit Protection (SCP): Yes Under Voltage Protection (UVP): Yes ATX Main Connectors: 1 EPS Connectors: 2 4-Pin Peripheral Connectors: 2 Min. Power (Approx.): 680 Watt Maximum Power: 850 Watt Input AC: 100-240V Cable Type: 12VHPWR cable ErP 2014 Lot 3: Yes EPS 4+4 Pin Connectors: 1 EPS 8 Pin Connector: 1 Country Of Origin: Taiwan Made in/ Assemble: China |
| Power | |
| Input Voltage | 100-240V |
| Physical Specification | |
| Form Factor | ATX |
| Warranty Information | |
| Warranty | 10 year |
Cooler Master GX II Gold 850W Fully Modular 80 Plus Gold Certified Power Supply
The Cooler Master GX II Gold 850W Fully Modular 80 Plus Gold Certified Power Supply is designed for high-performance PC builds, offering a combination of power, efficiency, and advanced features to ensure a stable and reliable experience. With its 80 Plus Gold certification, the PSU provides up to 90% efficiency, reducing energy consumption and heat generation, which makes it ideal for gaming rigs and workstations. This PSU is built to ATX 12V Ver. 3.0 standards, making it compatible with the latest hardware components, including next-gen graphics cards. Its fully modular design allows users to connect only the necessary cables, reducing clutter and improving airflow within the case. The inclusion of a 12VHPWR cable and support for PCIe 5.0 ensures compatibility with high-power GPUs, while the zero-RPM fan mode adds to the silent operation by stopping the fan when the system is running cool. For cooling, the GX II Gold 850W features a 120mm HDB (Hydrodynamic Bearing) fan with a maximum speed of 2500 RPM, delivering excellent cooling efficiency while maintaining a low noise profile. The fan’s zero-RPM mode ensures it only spins up when necessary, further optimizing noise levels and power consumption. Safety is a top priority with comprehensive protection features, including Over Voltage Protection (OVP), Over Power Protection (OPP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP). These safeguards ensure that your system remains protected from electrical hazards. Measuring 160 x 150 x 86 mm, the PSU is compact enough to fit into most cases. It comes with a 10-year warranty, reflecting Cooler Master's commitment to durability and long-term performance. With its superior power delivery, high efficiency, and premium components, the Cooler Master GX II Gold 850W PSU is an excellent choice for building powerful, efficient, and quiet systems.
Cooler Master GX II Gold 850W Gold Certified Power Supply Features
- 80 Plus Gold Certified Efficiency: Delivers up to 90% energy efficiency, ensuring reduced energy consumption and heat generation.
- Fully Modular Design: Allows users to connect only the necessary cables, reducing cable clutter and improving airflow in the PC case.
- ATX 12V Ver. 3.0 and PCIe 5.0 Ready: Supports the latest hardware standards, including next-gen graphics cards with a 12VHPWR cable for enhanced performance and power delivery.
- 120mm HDB Fan with Zero-RPM Mode: Features a Hydrodynamic Bearing (HDB) fan that operates quietly and stops spinning at low loads to reduce noise and save energy.
- Comprehensive Protection: Includes Over Voltage Protection (OVP), Over Power Protection (OPP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Under Voltage Protection (UVP) to ensure system safety.
- High Durability: Boasts a Mean Time Between Failures (MTBF) of over 100,000 hours, ensuring long-lasting performance and reliability.
- Compact Form Factor: Its dimensions of 160 x 150 x 86 mm make it easy to fit in most cases, providing versatility for different build types.
- 10-Year Warranty: Comes with a decade of coverage, reflecting Cooler Master's confidence in the durability and performance of the power supply.
