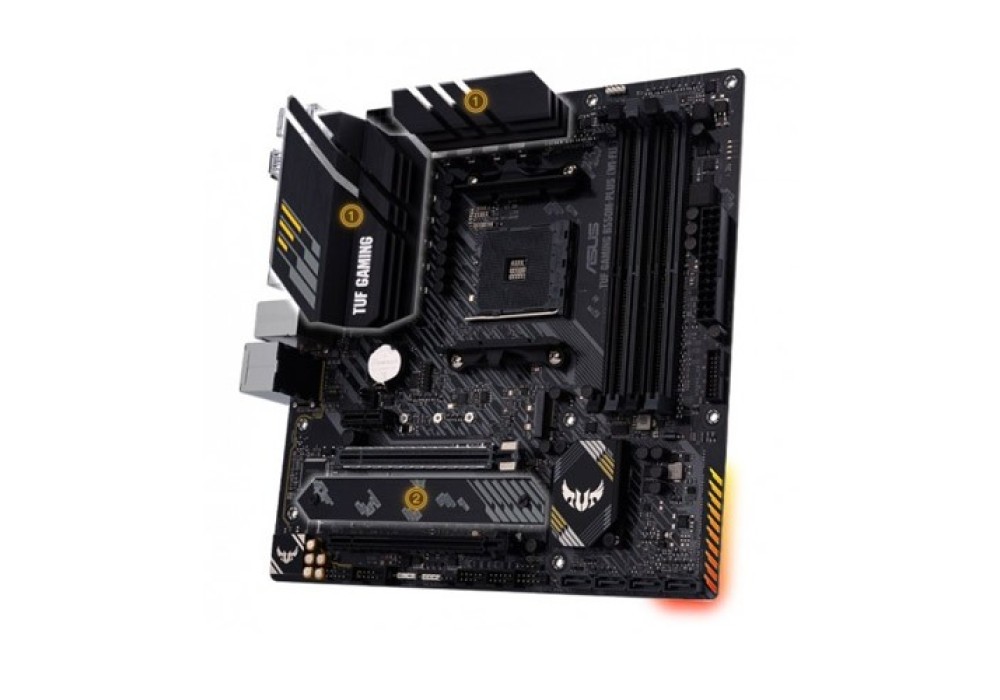

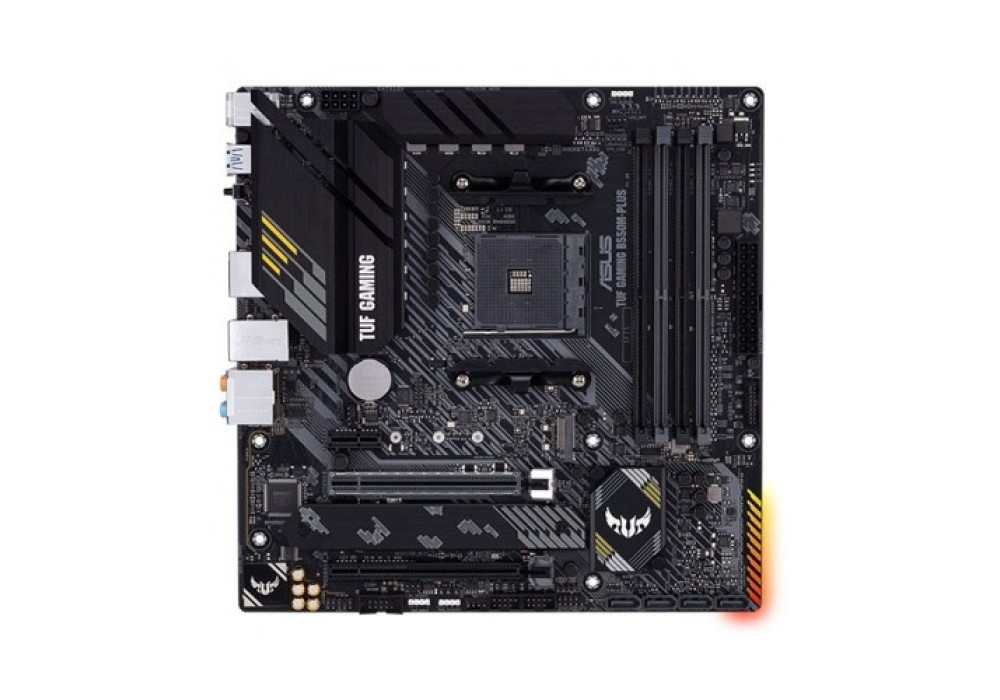

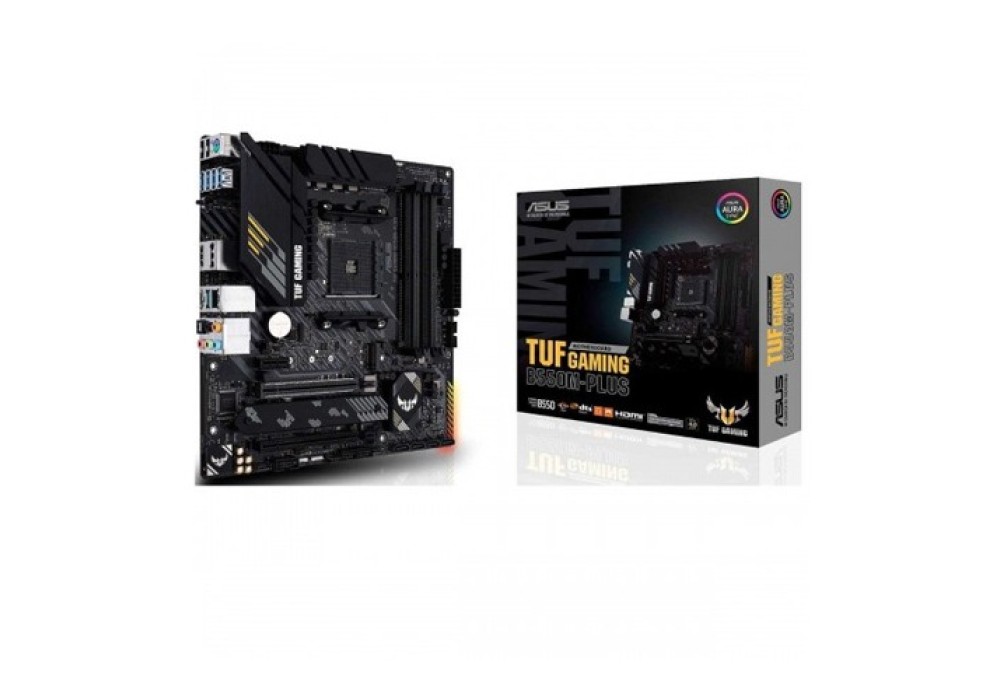

Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard
ASUS TUF Gaming B550M-Plus Micro ATX AM4 Motherboard is a robust and versatile foundation for building a high-performance gaming rig. Designed to support AMD Ryzen 5000/4000G Series and 3rd Generation processors, this motherboard features the AMD B550 chipset, ensuring compatibility with the latest technologies and offering a seamless gaming experience. Measuring 9.6 inches by 9.6 inches, the mATX form factor of the TUF Gaming B550M-Plus makes it suitable for compact builds without compromising on features. It comes equipped with a 256 Mb Flash ROM and UEFI AMI BIOS, providing a user-friendly interface for system configuration and updates. Expansion slots include a PCIe 4.0 x16 slot for 3rd Gen AMD Ryzen Processors, offering increased bandwidth for graphics cards. Additionally, there are multiple PCIe 3.0 slots, ensuring versatility for various expansion cards. The motherboard also boasts two M.2 sockets supporting PCIe 4.0 and PCIe 3.0 modes, enabling ultra-fast storage solutions. The TUF Gaming B550M-Plus supports up to 128GB of DDR4 RAM across four memory slots. It accommodates high-speed memory modules with frequencies up to 4800 MHz (overclocked), ensuring smooth multitasking and faster load times for applications and games. For graphics, the motherboard includes a DisplayPort 1.2 and an HDMI 2.1 port, supporting up to 4K resolution at 60Hz, making it ideal for immersive gaming and high-definition video playback. It also supports AMD 2-Way CrossFireX Technology for multi-GPU setups. Connectivity is well catered for, with a total of 14 USB ports (8 at the rear and 6 at the front), including USB 3.2 Gen 2 and Gen 1 ports for high-speed data transfer. The Realtek RTL8125B 2.5Gb Ethernet port ensures fast and stable wired internet connectivity, enhanced by TUF LANGuard protection. The audio subsystem is powered by the Realtek ALC S1200A codec, delivering high-definition 7.1 surround sound. Special audio features include DTS Custom for gaming headsets, an optical S/PDIF out port, and premium Japanese audio capacitors, ensuring an immersive and crystal-clear audio experience. The motherboard includes several ASUS-exclusive software utilities, such as Armoury Crate, AI Suite 3, and Fan Xpert 2+, providing extensive customization and optimization options. TUF Protection features, including Enhanced DRAM Overcurrent Protection, ESD Guards, and SafeSlot, ensure durability and reliability under heavy usage. With a three-year warranty, the ASUS TUF Gaming B550M-Plus Micro ATX AM4 Motherboard combines performance, durability, and extensive features, making it an excellent choice for gamers and enthusiasts looking to build a reliable and powerful gaming system.
Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard Features
- The motherboard features a comprehensive array of expansion slots, including PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots, providing ample room for high-performance graphics cards and expansion cards. It also supports dual M.2 slots for NVMe SSDs, offering high-speed storage capabilities. The inclusion of HDMI 2.1 and DisplayPort 1.2 outputs ensures seamless connectivity to high-resolution displays, enhancing the gaming and multimedia experience.
- With support for dual-channel memory architecture and up to 128GB of DDR4 memory, the motherboard offers ample memory capacity for multitasking and gaming. The Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC provides immersive audio experiences, complete with exclusive DTS Custom for gaming headsets and support for up to 24-Bit/192kHz playback.

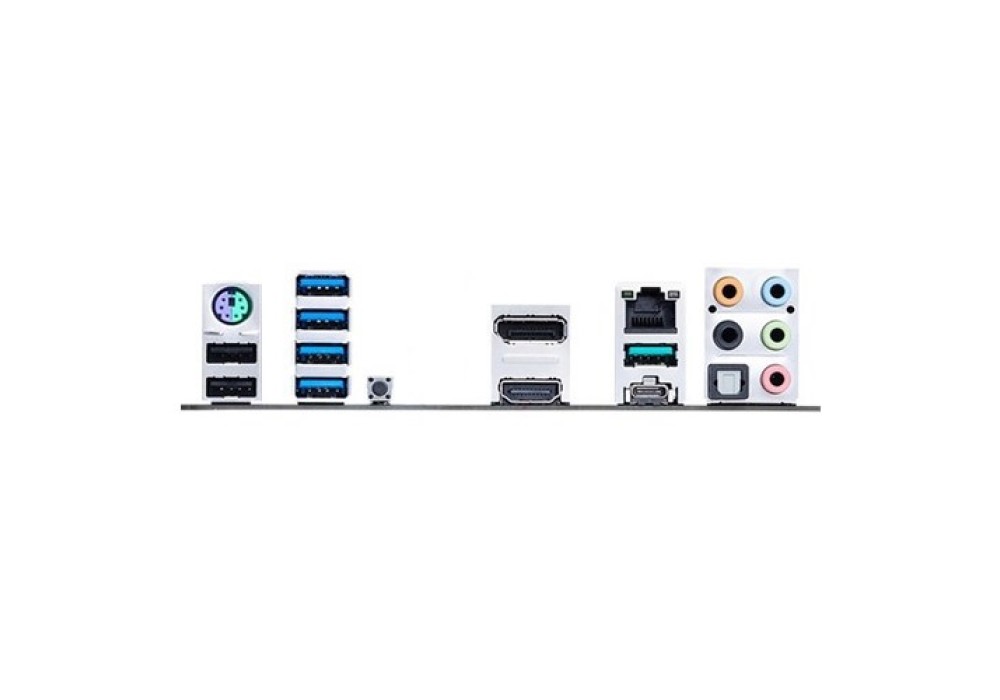

- The motherboard boasts a range of USB ports, including USB 3.2 Gen 2 and USB 2.0 ports, catering to various peripheral connectivity needs. The inclusion of 2.5Gb Ethernet LAN and TUF LANGuard ensures reliable and high-speed network connectivity. Additionally, the motherboard supports multiple M.2 slots and SATA 6Gb/s ports, providing extensive storage options and RAID support for enhanced data management.
- The motherboard comes equipped with ASUS-exclusive software, including Armoury Crate, AI Noise Cancelling Microphone, AI Suite 3, and Aura Sync RGB lighting, offering customization and control over the system's performance and aesthetics. The ASUS TUF PROTECTION features, such as ASUS DIGI+ VRM, ESD Guards, and SafeSlot, ensure enhanced durability and protection for long-term reliability.
- Backed by a 3-year manufacturing warranty, the ASUS TUF Gaming B550M-Plus Micro ATX AM4 Motherboard provides users with peace of mind regarding its reliability and support, making it a compelling choice for building high-performance gaming rigs and workstations.
In summary, the ASUS TUF Gaming B550M-Plus Micro ATX AM4 Motherboard stands as a testament to ASUS's commitment to delivering rock-solid performance, unwavering stability, and game-ready features. With its robust connectivity, extensive storage support, exclusive software, and comprehensive warranty coverage, this motherboard is a standout choice for users seeking a reliable and high-performance foundation for their gaming and computing setups.
