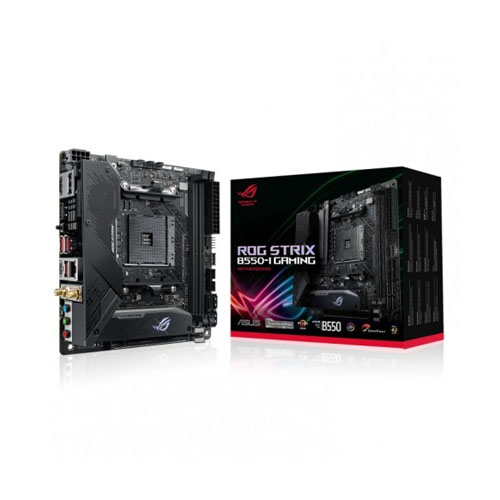

Model: ROG STRIX B550-I GAMING
Chat Through
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Chipset | AMD B550 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Audio | SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A - Rear audio USB Type-C port - LED-illuminated design - Audio Shielding - Premium Japanese audio capacitors - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback |
| PCI | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x16 mode) |
| Memory Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory Type | 5100(O.C)/ 5000(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3800(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Max. Memory | Max. 64GB |
| HDMI | 1 x DisplayPort |
| USB (s) | 4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C +3 x Type-A) 1 x USB 2.0 port(s)( 1 x audio USB Type-C) Front USB Port ( Total 5 ) 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C) Rear USB Port ( Total 6 ) 1 x USB 2.0 port(s) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) |
| LAN Port (s) | Intel I225-V 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | AMD Ryzen 4000 G-Series Processors : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support |
| Audio | 3 x LED-illuminated audio jacks |
| Internal I/O Ports | 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x VRM_HS_FAN Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| Graphics | 1 x HDMI 2.1(4K@60HZ) 1 x DisplayPort 1.4 |
| Special Features | Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-CODE - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS Flashback™ button -BIOS FlashBack™ LED -Clear CMOS header -Procool -Pre-mounted I/O shield - SafeSlot Rear audio USB Type-C connector |
| Manufacturing Warranty | 3 years |
Give your space-saving gaming rig big potential with the Republic of Gamers ASUS ROG STRIX B550-I AM4 Mini-ITX Motherboard from ASUS. Designed for small form factor AMD gaming rigs, this mini-ITX board uses the B550 chipset and supports AM4 sockets. Supporting up to 64GB of dual-channel DDR4 RAM between two DIMMs, this board is compatible with frequencies up to 3200 MHz, or 5100 MHz when overclocked. ECC memory is supported, depending on the particular CPU installed on the board. A GPU can be installed via the PCIe 4.0 x16 slot, and storage options include four SATA III ports and two M.2 sockets, with one supporting PCIe 4.0 X4 drives and the other supporting PCIe 3.0 x4 drives. Both of these M.2 slots accept 2242-, 2260-, and 2280-sized drives.
