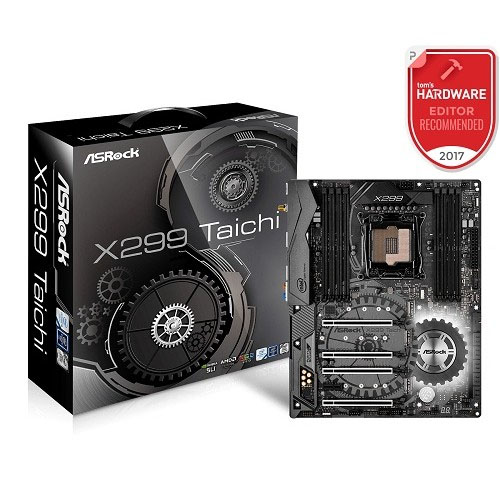

ASRock X299 Taichi USB 3.1 ATX Intel Motherboard

ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
Save12750 ৳ Discontinued
ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
  • Stock: Discontinued
  • Brand: ASRock
  • Model: ASRock X299 Taichi
  • Product ID: 4358
Based on 0 reviews. - Write a review
18,900৳
31,650৳
EMI starts at 6,628৳/month. View all 25 banks EMI plans >
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Key Features

    • Chipsets Intel X299 1 x TPM Header
    • Supports Intel Core X Series Processor Family
    • Supports DDR4 4400 OC
    • 4 PCIe 3.0 x16 1 PCIe 2.0 x1
View more info...
Payment Methode
Order Procedure
Pickup Points
অর্ডার করার আগে স্টক এবং দাম সম্পর্কে নিশ্চিত হয়ে নিন : 01885938356
Chipset
Chipset Intel X299
Memory Specifications
Slots 4 x PCI Express 3.0 x16 Slots
- 1 x PCI Express 2.0 x1 Slot
- Supports AMD Quad CrossFireX, 3-Way CrossFire and CrossFireX
- Supports NVIDIA Quad SLI, 3-Way SLI and SLI
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
*If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x8/x16/x0 or x8/x8/x16/x8.
If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x0/x8/x0 or x8/x0/x8/x8.
If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x0/x0/x0 or x8/x0/x4/x0.
Supports NVMe SSD as boot disks
**3-Way CrossFireX is only supported with CPU with 44 lanes or 28 lanes.
***This feature is only supported with CPU with 44 lanes or 28 lanes.
Motherboard
BIOS - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 6.1 Compliant wake up events
- SMBIOS 3.0 Support
- CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD Voltage Multi-adjustment
LAN Wireless LAN
Intel® 802.11ac WiFi Module (Free Bundle)
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II
Max Memory Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Supports DDR4 4400+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports non-ECC RDIMM (Registered DIMM)
- Max. capacity of system memory: 128GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
The maximum memory frequency supported may vary by processor type.
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
Please refer to Memory Support List on ASRock's website for more information.
Onboard Audio 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Supports Purity Sound 4
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Front Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Supports DTS Connect
Onboard LAN Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel I219V, 1 x GigaLAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Dual LAN with Teaming
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Teaming is supported on Windows 10 RS2 and above.
Supported Processors Supports Intel Core X-Series Processor Family for the LGA 2066 Socket
- Digi Power design
- 13 Power Phase design
- Supports Intel Turbo Boost Max Technology 3.0
- Supports ASRock Hyper BCLK Engine III
Warranty Information
Warranty 03 Years

ASRock X299 Taichi USB 3.1 ATX Intel Motherboard

  • ASRock Super Alloy
  • Supports Intel Core X-Series Processor Family for the LGA 2066 Socket
  • 13 Power Phase Design, Dr. MOS
  • Supports DDR4 4400+(OC)
  • 4 PCIe 3.0 x16, 1 PCIe 2.0 x1
  • NVIDIA 3-Way SLI, AMD 3-Way CrossFireX
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound 4 & DTS Connect
  • 10 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C)
  • 8 USB 3.1 Gen1 (4 Front, 4 Rear)
  • Dual Intel Gigabit LAN
  • Intel 802.11ac WiFi
  • ASRock RGB LED
  • BIOS Flashback
  • Hyper BCLK Engine III
