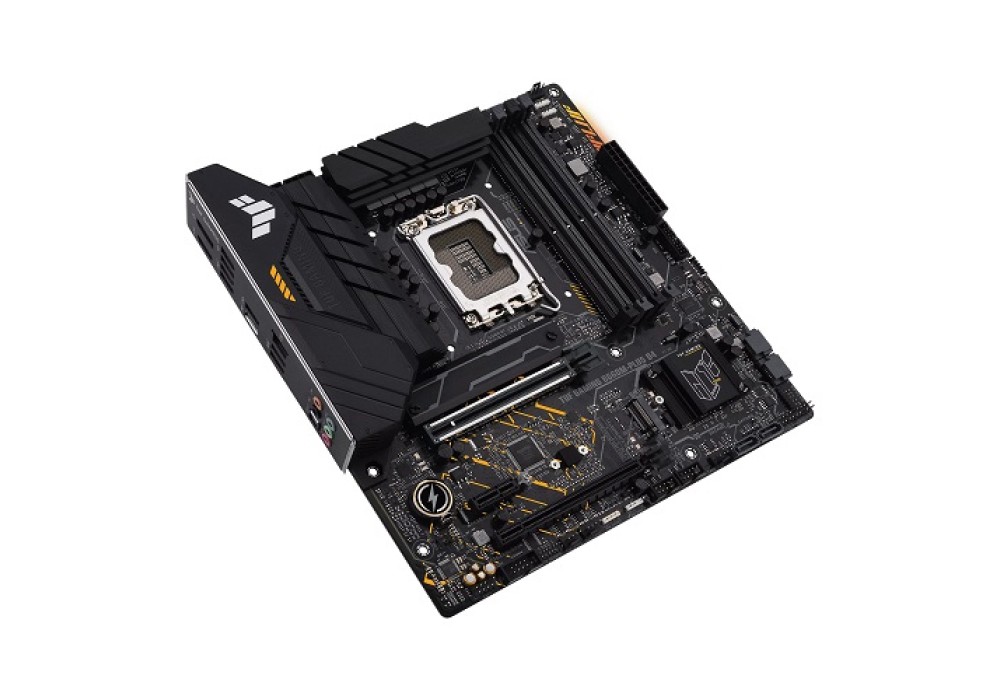

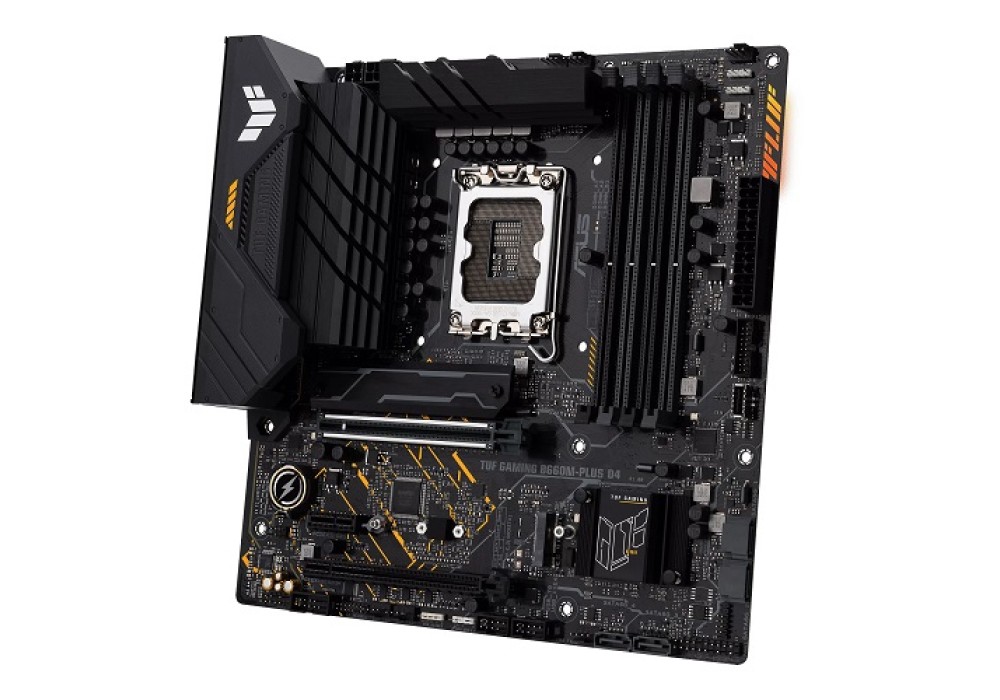

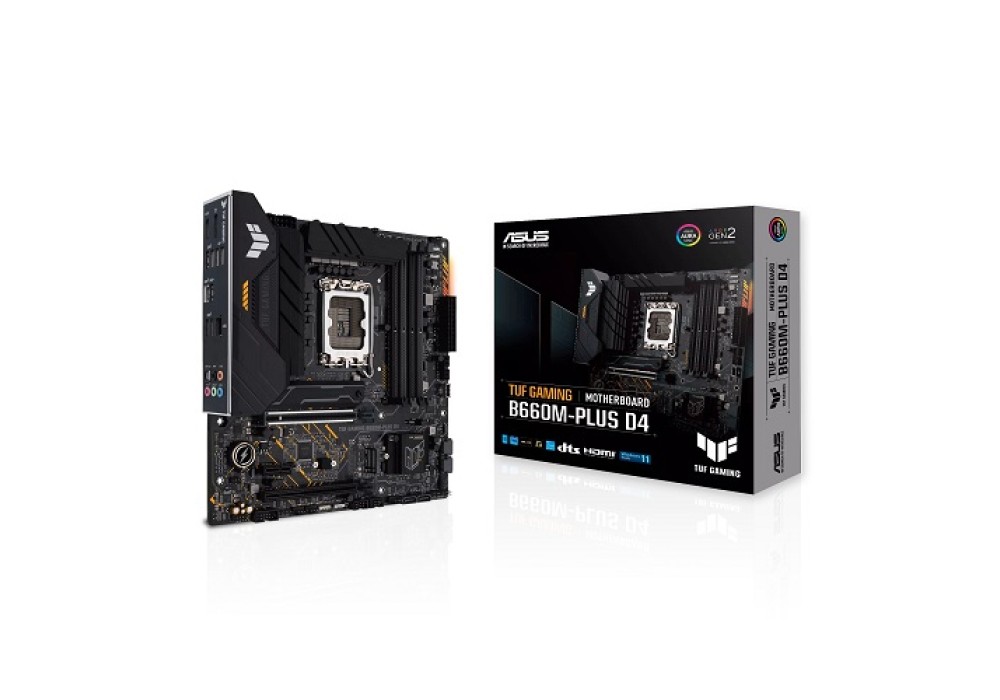

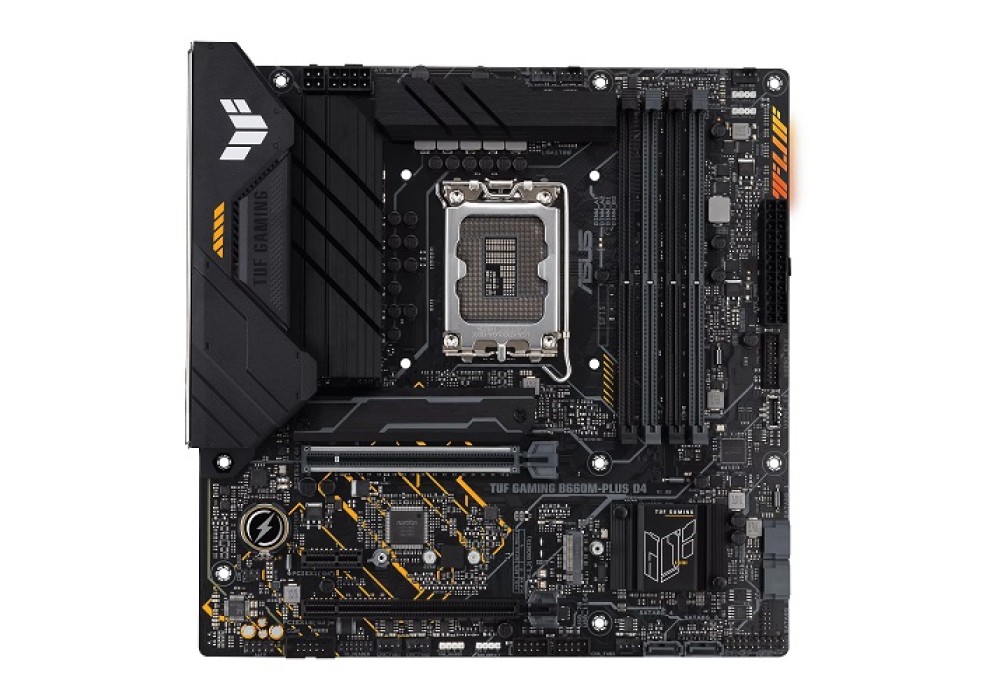

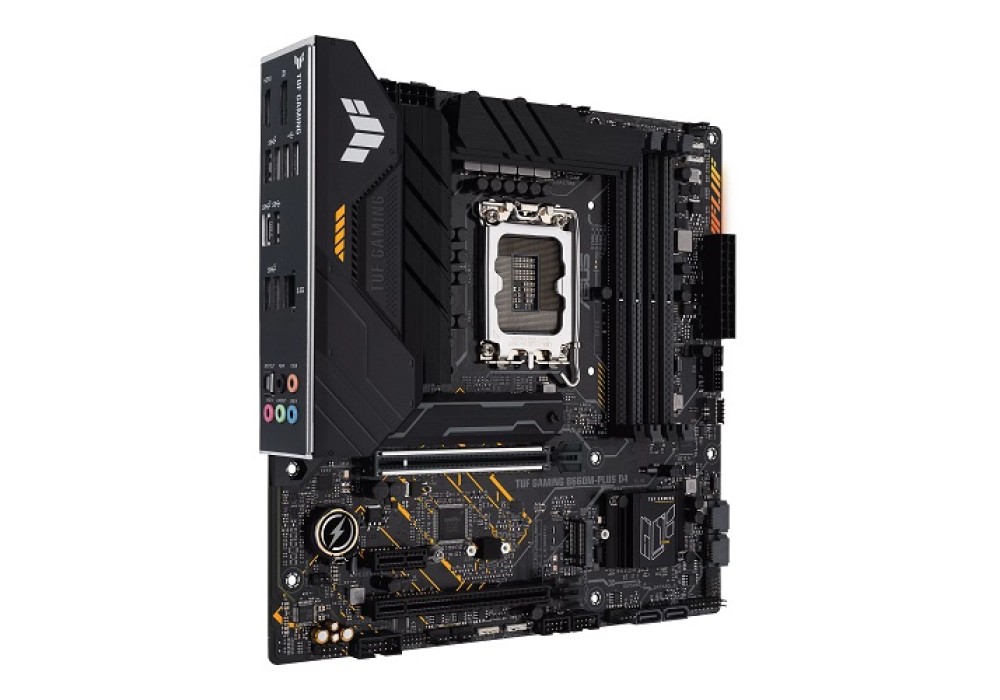

Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard

Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
  • Stock: In Stock
  • Brand: Asus
  • Model: TUF GAMING B660M-PLUS D4
20,500৳
EMI starts at 7,189৳/month. View all 27 banks EMI plans >
Basic Information
Supported CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B660 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
24.4cm x 24.4cm
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
Graphics
Graphics 1 x DisplayPort
1 x HDMI port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors' resolution.
Memory
Type DDR4
Slots 4 x DIMM
Supported Memory 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory Max. 128GB, DDR4
Expansion Slots
PCI Intel 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B660 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
Supports Intel Optane Memory H Series on PCH-attached PCIe slot.
M.2 Socket Total supports 2 x M.2
Connector & Ports
Wireless Communication module 1 x ASUS Wi-Fi moving antennas
HDMI 1 x HDMI port
USB (s) Rear USB:Total 8 ports
Total 8 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports
Total 7 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) TUF LANGuard
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Supported Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

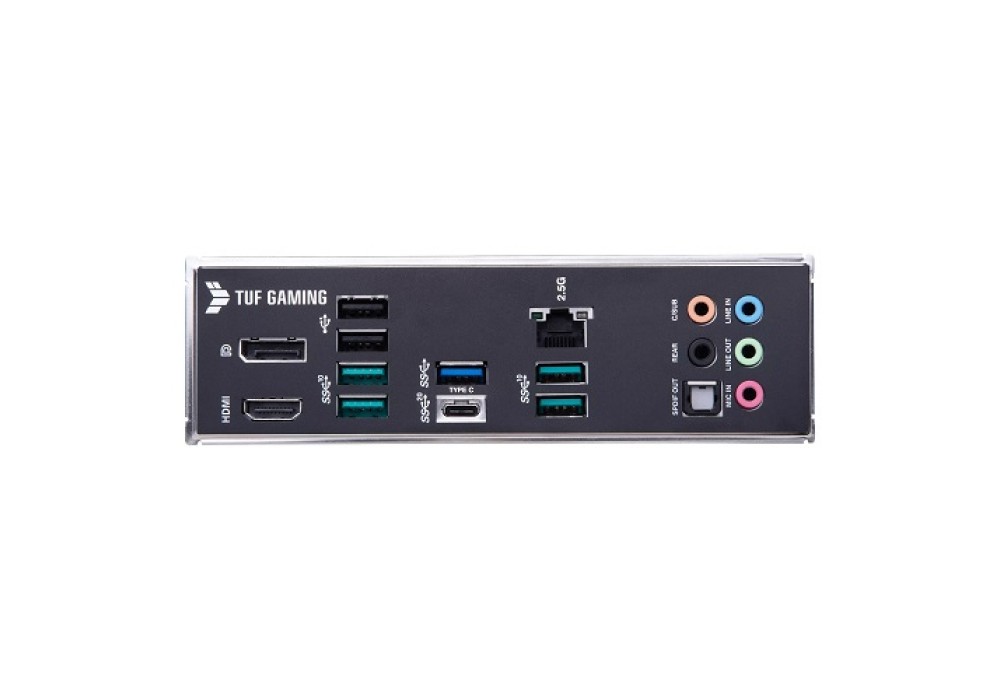

Internal I/O Ports Back Panel I/O Ports:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Internal I/O Connectors:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Storage related:
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB:
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous:
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Others Information
Bundled Software ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features ASUS Exclusive Software
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 years warranty

Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard

Asus TUF GAMING B660M-PLUS D4 Supported with 12th Gen Intel Core, Pentium Gold and Celeron Processors, Intel Socket LGA1700, 4 x DIMM, Max. 128GB, DDR4 memory. This Motherboard comes with Enhanced power solution, like 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability. In this TUF GAMING B660M-PLUS D4 motherboard, it is also has Comprehensive cooling function, these are - Enlarged VRM heatsink, Stack Cool 3+, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. This Asus TUF GAMING B660M-PLUS D4 mother board also has Latest connectivity, these are PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 header support, Realtek 2.5Gb Ethernet, TUF LAN Guard. This TUF GAMING B660M-PLUS D4 has Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
