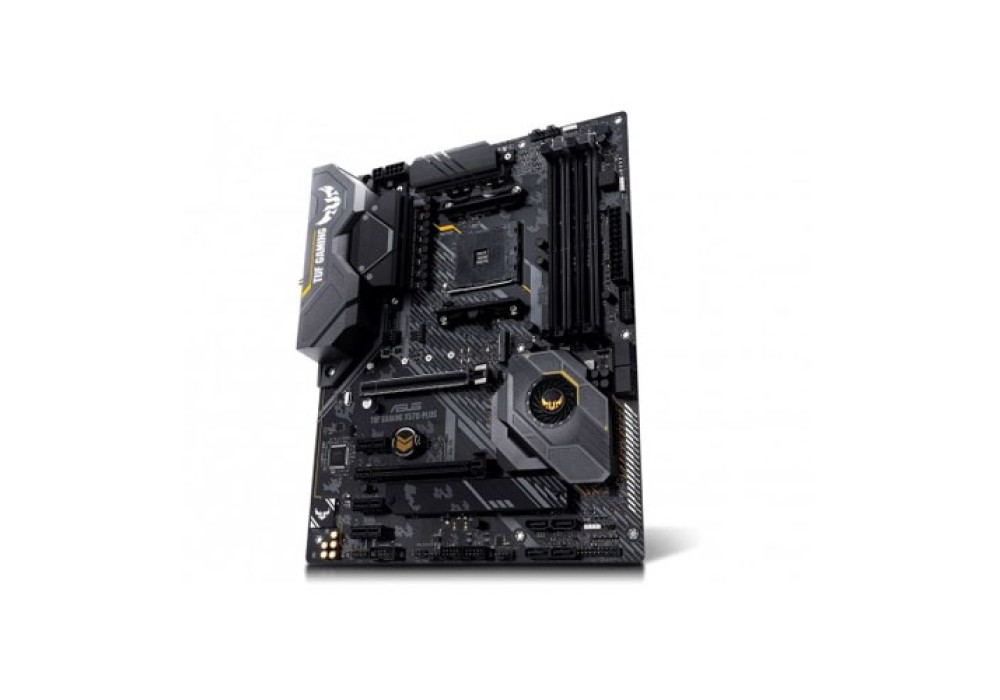

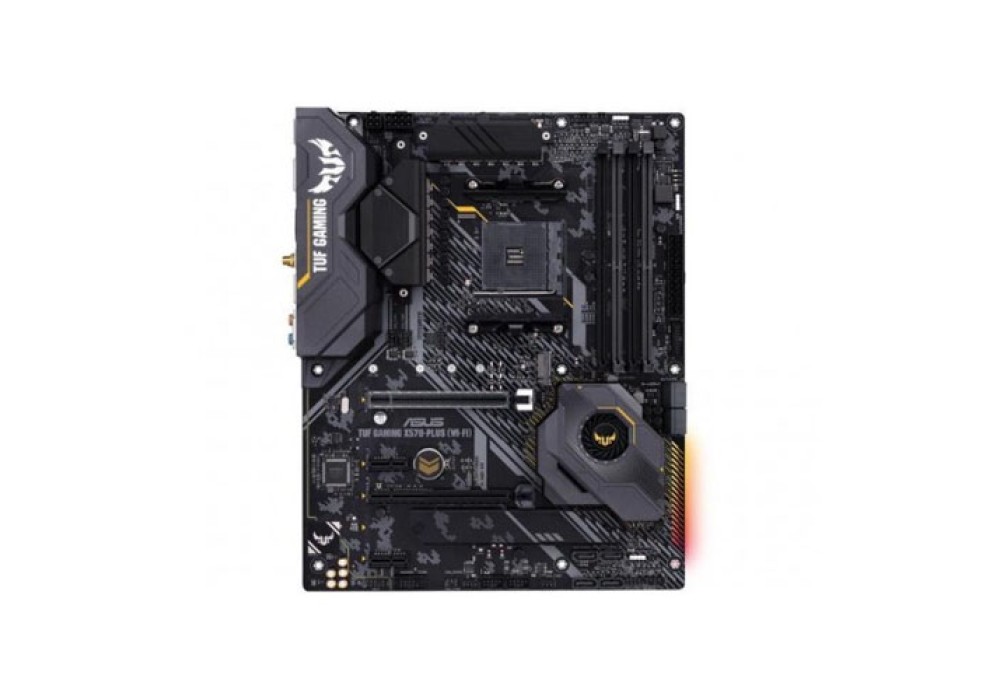

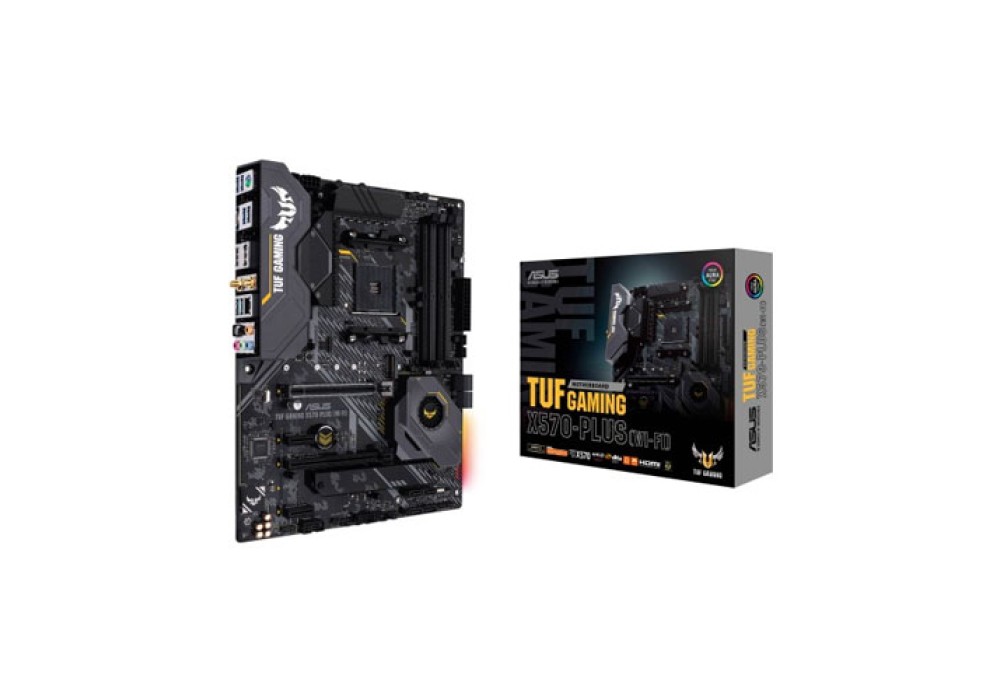

Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard

Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard
Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard
Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard
Out Of Stock
Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard
Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard
Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard
Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard
  • Stock: Out Of Stock
  • Model: Asus Tuf Gaming X570-Plus
Asus Asus
Based on 0 reviews. - Write a review
0৳
Buy Now
Buy Now Ask Question
Add to Wish List Add to Compare

Chat Through

WhatsApp
Messenger
Key Features

  • Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd and 3rd Generation Processors

    Enhanced Power Solution

    Next-Gen Connectivity

    Immersive Gaming

View more info...
অভ্যন্তরীণ বাজারদরের সাথে সামঞ্জস্য রেখে পণ্যের মূল্য নির্ধারণ ও পরিবর্তন হতে পারে। ব্র্যান্ড, মডেল ও ফিচারের উপর ভিত্তি করে দামে পার্থক্য দেখা যায়। বিস্তারিত জানতে আমাদের হটলাইনে কল করুন: +880 2223-374695।
Specification
Basic Information
Supported CPU Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors
Chipset AMD X570
BIOS 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ
Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified
log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory
information
Form Factor ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI 3rd Gen AMD Ryzen Processors : 1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen Processors : 1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) ,2 x PCIe 4.0 x1
M.2 Socket Yes
Memory Specifications
Memory Type 3rd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 4400(O.C) /3466(O.C.) /
3400(O.C. /3200(O.C.) / 3000(O.C.) / 2933(O.C.) /2800(O.C.) / 2666/ 2400/ 2133 MHz
Un-buffered Memory
2nd Gen AMD Ryzen Processor : 4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 3466(O.C.) /
3400(O.C.) / 3200(O.C.)/ 3000(O.C.) / 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-
buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x DIMM, Max. 128GB,
DDR4 3200(O.C.)/ 3000(O.C.) / 2933(O.C.) / 2800(O.C.)/2666/ 2400/ 2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Max. Memory 128GB, DDR4
Connector & Ports
HDMI Yes ( 1.4b )
USB (s) 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
: 4 x USB 3.2 Gen 1 port(s) (4 at back panel, )
AMD X570 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM)
AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board)
LAN Port (s) Yes ( RJ45 )
Supported Storage 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type
2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type
2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and
SATA modes) storage devices support
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
Audio Realtek ALC S1200A 8-Channel High Definition Audio CODEC
Internal I/O Ports 2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support
(SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support
(SATA mode & X4 PCIE mode)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Graphics
Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
Max Shared Memory Max. 128GB
Warranty Information
Manufacturing Warranty 03 Years Warranty
Description

FEATURES:

  • AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors
  • Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
  • Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
  • Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
  • Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
  • Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
  • TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case

Asus Tuf Gaming X570-Plus (Wi-Fi) Motherboard

TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig. The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
